Phase evolution of slag-rich cementitious grouts for immobilisation of nuclear wastes

Encapsulation of intermediate level radioactive waste (ILW) in cementitious matrices is the preferred method for its disposal in the UK. Combinations of supplementary cementitious materials (SCMs) and Portland cement (PC) contribute to the grouts used in this process (Atkins and Glasser, 1992). The high pH of the blended cements, normally 12 or higher (Moranville-Regourd, 2003), is intended to cause the radionuclides to be insoluble, and the cementitious environment creates hydration products that promote the sorption and ionic substitution of key radionuclides (Glasser, 1992; Sharp et al., 2003). Restricting the movement of the radioactive material is the main objective of encapsulation (Collier and Milestone, 2010).

A highly durable cement waste form provides a safer method to store and transport potentially hazardous material (Ojovan and Lee, 2006). Blast-furnace slag (BFS) blended with PC is used extensively for this purpose, at varying degrees of replacement (from 75 to 90% replacement). High replacement levels are used because of the slower reactivity of BFS with water, which decreases the heat released by hydration of grout constituents during the early stages of curing (Bland and Sharp, 1991; Hill and Sharp, 2002; Utton et al., 2008). Blended cements are also widely available and relatively inexpensive for the purpose of encapsulating a wide range of wastes.

In the UK, 108 000 m³ of ILW had already been generated by April 2016, of which 41 400 m³ had been converted into cemented waste forms awaiting long-term storage, leaving large quantities still awaiting treatment (NDA, 2017). Therefore, owing to the large volumes of waste still awaiting treatment, as well as the need to monitor and maintain the cemented products now in interim storage awaiting final disposal, further understanding of the potential interactions between the cementitious grouts and the encapsulated wastes is necessary. Despite the large volumes of waste being produced, the supply of the precursor materials has been a constant issue over the years (Angus et al., 2010); therefore, a method to be able to predict how the old and new cementitious constituents react to form different phase assemblages is required.

Investigations of cement for immobilisation of radioisotopes have primarily focused on the incorporation of ions within the cement hydrate phases, such as calcium silicate hydrates (C–S–H), ettringite and calcium monosulfoaluminate hydrate (‘monosulfate’), owing to the variety of cationic and anionic substitutions that may take place within these stable phases. The silicate-chain-based, layered structure of C–S–H offers a variety of sites to host substituents, whether within the silicate chain, such as the replacement of silicon by aluminium to form calcium aluminosilicate hydrate (C–A–S–H) type products (L'Hôpital et al., 2015; Myers et al., 2015a; Richardson and Groves, 1997; Richardson et al., 1993), or as charge balancing ions within the interlayer region (L'Hôpital et al., 2016b; Myers et al., 2014; Richardson and Groves, 1993). The high surface area of the C–A–S–H gel provides a surface for ionic sorption or substitution for interlayer sites (Gougar et al., 1996). Ettringite (Ca₃Al₂O₆·3CaSO₄·32H₂O) hosts numerous SO²⁻₄ ions located within the channels of columns of calcium and aluminium polyhedra, which provides the possibility for anionic replacement. At lower sulfate concentrations, monosulfate (Ca₃Al₂O₆·CaSO₄·12H₂O) is more dominant (Durdziński et al., 2017b; Kocaba, 2009; Taylor et al., 2010) and forms a lamellar hexagonal structure. Both ettringite and monosulfate require charge balancing of a cationic structure by exchangeable anions, which can be replaced by anionic radionuclides (Cau Dit Coumes et al., 2009; Gougar et al., 1996; Mobasher et al., 2014). Another main phase associated with BFS-rich cements is a Mg-Al-hydrotalcite-like phase, and although this is well known to act as a good receptor for Cl⁻ and CO²⁻₃ binding (Ke et al., 2016, 2017), its role in the uptake of other important radionuclides still requires further investigation.

The nature and amount of hydration products forming in BFS–PC blended cements are highly dependent on temperature, curing time, PC and slag content, as well as slag composition (Deschner et al., 2013; Durdziński et al., 2017b; Escalante-García and Sharp, 1998, 2004; Kocaba, 2009; Lothenbach et al., 2008; Myers et al., 2015b; Taylor et al., 2010). Although BFS–PC grouts have been extensively studied over recent decades, evaluation has mostly focused on assessment of young specimens and a small portfolio of samples which have been analysed at regular intervals since the 1990s (Luke and Lachowski, 2008; Richardson and Groves, 1992; Richardson et al., 1993; Taylor et al., 2010), and therefore there remain open questions around the chemical, mineralogical and microstructural changes these materials will undergo over the timescale relevant for nuclear waste cementation.

Thermodynamic modelling is a very useful tool that can be used to predict how the changes in blend ratios of a cement system will affect the aqueous and solid hydration products in the longer term (Damidot et al., 2011; Lothenbach, 2010; Lothenbach and Winnefeld, 2006). This can be performed using geochemical modelling software packages such as GEMSelektor (GEMS) (Kulik et al., 2013; Wagner et al., 2012), and utilises solid-solution models in conjunction with thermodynamic databases for defined phases to predict the formation of cement hydrates. The key limitation of this method at present is the difficulty in accurately parameterising an end-member model for the complex multi-component hydrates present in cements, based on limited and often conflicting experimental results (Kulik, 2011; Myers et al., 2014; Walker et al., 2016). Therefore, the purpose of this study is to assess the effectiveness of a geochemical model for C(–A)–S–H in predicting phase assemblages of the slag cement systems used in the nuclear industry in the UK. Using this technique, predictions based on the precursor materials used for nuclear waste encapsulation may be performed to quickly and accurately assess whether new supplies of BFS and PC are capable of providing the necessary performance characteristics in the long term.

Cementitious grouts composed of 1:1, 3:1 and 9:1 BFS:PC (compositions in Table 1) were produced with a water/solids (w/s) mass ratio of 0·35, cured at 35°C. These mix ratios and curing temperature conditions were chosen to resemble the current interim storage conditions of ILW waste packages. The powders used were Ribblesdale CEM I 52.5N PC and Port Talbot ground granulated BFS supplied by way of the National Nuclear Laboratory. The mineralogy of the anhydrous powders can be observed in Figure 1, obtained through X-ray diffraction (XRD) (details in the next section entitled ‘Analytical techniques’). Samples were mixed in batches then poured into 50 ml tubes, sealed and stored in an oven at the specified curing temperature until testing.

Upon reaching the specified curing age, hardened specimens were crushed and ground using acetone as a lubricant, to a particle size below 63 μm. They were then vacuum washed with acetone to ensure hydration had ceased (Ismail et al., 2013).

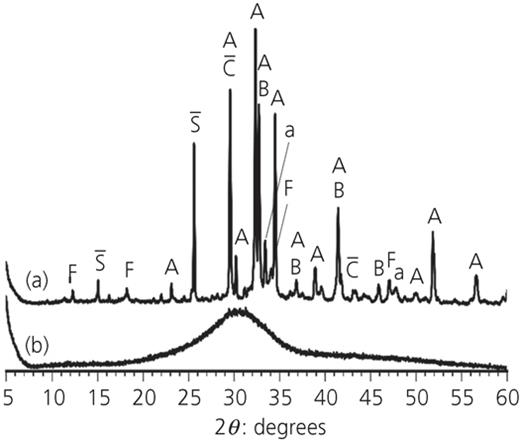

Analysis of the crystalline phases was performed using powder XRD on a Bruker D2 Phaser instrument with Cu Kα radiation and a nickel filter. Scans were conducted with a step size of 0·020°, for 2 s per step. Samples were front loaded by pouring the sample into a sample holder, then smoothed over with a glass tile.

Selective dissolution (Luke and Glasser, 1987; Lumley et al., 1996) was performed to provide a quantitative determination of the degree of hydration of the BFS by dissolving PC and hydration products while leaving slag grains intact. Initially, 93·0 g of disodium ethylenediaminetetraacetic acid (EDTA·2H₂O) was dissolved in a mixture of 250 ml of triethanolamine and 500 ml of water. The solution was transferred to a volumetric flask. 173 ml of diethylamine was added into the solution, then the mixture was made up to 1000 ml with water.

For each extraction test, 50 ml of the above solution was pipetted into a beaker and diluted to 800 ml with distilled water. After the diluted solution was brought to a temperature of 20·0 ± 2°C, 0·5000 g of dried and ground sample (particle size smaller than 63 μm), weighed to the nearest 0·0001 g, was sprinkled over the surface of the solution. The solution was stirred using a magnetic mixer for 120 ± 5 min maintaining a constant temperature, then filtered under vacuum through a 90 mm dia. Whatman GF/C filter which had been previously washed with 100 ml of distilled water, dried at 105°C and weighed. The residue was washed five times with 10 ml of distilled water per washing, dried at 105°C for 1 h and weighed to the nearest 0·0001 g.

Anhydrous PC and BFS were dissolved by EDTA solution using the same method as used for the hydrated samples, to determine the proportions of these powders that dissolved. Corrections were thus applied to the data for the hydrated samples, to account for the minor amounts of PC remaining after selective dissolution, the few per cent of anhydrous slag that was dissolved, and the hydrotalcite-group minerals that are not dissolved along in the residue (Dyson et al., 2007; Luke and Glasser, 1987). It was assumed that the magnesium oxide (MgO) content of the slag would react to form quintinite (Mg₄Al₂(OH)₁₂CO₃·4H₂O), which is insoluble in EDTA.

where HT_m is the maximum quantity of this hydrotalcite-group phase (mineralogically resembling quintinite as a phase with a 4:2 Mg:Al ratio) formed by 100% hydration of slag (29·93 g); m_MgO is the mass of magnesium oxide within the BFS; m_MgO/HT is the mass percentage of magnesium oxide within ‘quintinite’ (33·08 wt%); HT_s is the mass of ‘quintinite’ created based on the percentage of slag reacted; R is the residue after dissolution including PC and BFS corrections; D is the corrected degree of hydration; and R_c is the calculated initial residue without any form of hydrotalcite remaining.

These calculations assume that all of the available magnesium oxide is used to form ‘quintinite’. Equations 2–4 are solved iteratively, replacing R with D each time. The sum of squared errors (SSE) between the iterated initial residue and the calculated initial residue was minimised to obtain the actual degree of hydration of the slag.

Solid-state ²⁷Al and ²⁹Si magic angle spinning nuclear magnetic resonance (MAS NMR) spectra were collected on a Varian VNMRS 400 (9·4 T) spectrometer with either a 4 mm zirconia (for ²⁷Al) or 6 mm zirconia (for ²⁹Si) rotor. The ²⁷Al MAS NMR single-pulse experiments were collected at 104·198 MHz using the following parameters: 14 kHz spinning speed, minimum of 5700 scans, pulse width of 1 μs (25°) and a 0·2 s relaxation delay. The ²⁹Si MAS NMR single-pulse experiments were recorded at 79·435 MHz using the following parameters: 6·8 kHz spinning speed, minimum of 7000 scans, pulse width of 4·7 μs (90°) and a relaxation delay of 5 s. Poulsen et al. (2009) showed that a 5 s relaxation delay may result in an under-quantification of belite as there may not be enough time for the nuclei to fully relax prior to the next pulse, depending on the iron content of the cement tested, and its incorporation into different clinker phases. Edwards et al. (2007) also showed a difference between the intensity ratio of alite to belite as a function of relaxation delay; however, for delays between 3 and 70 s, the difference was minimal. It is also not clear whether differences in relaxation behaviour between different Si environments in the hydrate products will have a significant influence on quantification under the experimental conditions used here. Therefore, no correction of the silicon intensities for this effect was performed here, and the error in the quantification of resonances due to the differences in relaxation behaviour between different silicon sites is estimated to be ± 5%.

²⁹Si, and ²⁷Al chemical shifts are referenced to external samples of tetramethylsilane (TMS), and a 1·0 M aqueous solution of aluminium nitrate (Al(NO₃)₃), respectively.

Data collected from these scans were used to: (a) determine the degree of hydration for direct comparison with the results obtained through selective dissolution; (b) obtain the degree of hydration of clinker phases; and (c) identify poorly crystalline reaction products which are difficult to observe by XRD.

Deconvolutions were performed, using non-linear minimisation of the sum of squared errors using Gaussian curves, to obtain the best fit for comparing the deconvolution with the experimental data (Bernal et al., 2013, 2014; Myers et al., 2015a, 2015c). Constraints were placed on the line widths and peak positions dependent on the peak being analysed, as detailed below.

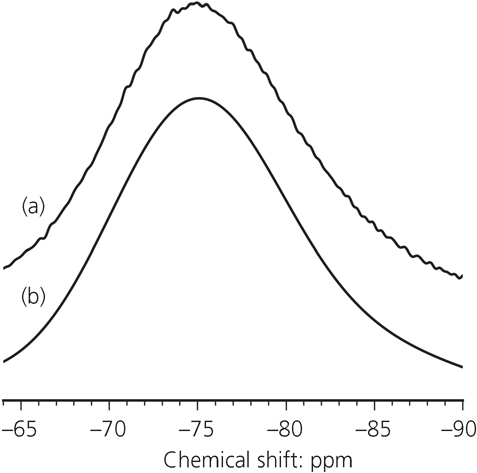

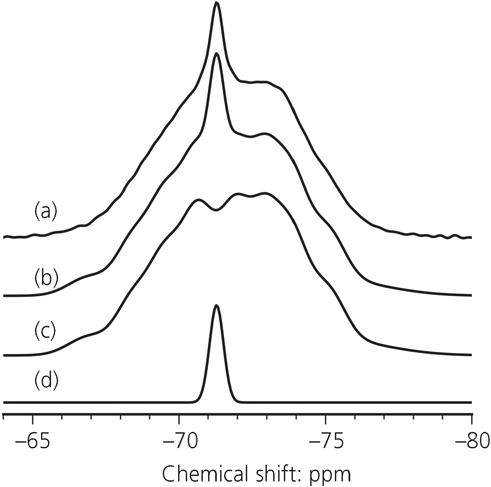

Quantification and deconvolution of the anhydrous PC was performed using nine overlapping peaks with varying line widths for alite (−64·5 to −76·5 ppm) and a single peak for belite (−71·3 ppm) with an observed line width (full width at half-maximum (FWHM)) of 0·33 ppm (Poulsen et al., 2009) (Figure 2). A relative belite to alite intensity of 0·13 was determined. This relative intensity was used in conjunction with the calcium oxide (CaO) and silicon dioxide (SiO₂) contents determined by X-ray fluorescence (XRF) (Table 1) to determine the quantity of alite and belite available in the PC (Poulsen et al., 2009). This calculation is in good agreement with the quantity of alite and belite determined using the modified Taylor–Bogue method (Taylor, 1989) as seen in Table 2. These clinker compositions were used to define the thermodynamic modelling precursor values. Fitting of the anhydrous BFS showed a large, broad resonance from −65 to −90 ppm (Figure 3). It was assumed that all hydration of the anhydrous material was congruent.

Thermodynamic modelling was performed using GEMSelektor v3 (Kulik et al., 2013; Wagner et al., 2012) using the CEMData14 database which is an updated version of CEMData07 (Lothenbach et al., 2008). GEMS utilises a Gibbs energy minimisation algorithm which determines the most stable phase assemblage. Included within this study is a solid-solution model for C–A–S–H, adapted from the work of Myers et al. (2014) and Kulik (2011), in Table 3. This adaptation was used to provide a greater calcium/silicon (Ca/Si) ratio within the modelled C–A–S–H gel to describe BFS:PC cements, as opposed to the alkali-activated slags for which the Myers model was originally developed. A similar approach was also adopted by Elakneswaran et al. (2016) using PHREEQC (Appelo and Postma, 2005; Parkhurst and Appelo, 2013). A solid solution model was used to represent a magnesium aluminum layered double hydroxide (MA–OH–LDH (Myers et al., 2014)), which replaced the OH–hydrotalcite phase found within CEMData14 to better represent the magnesium aluminate hydrate (M–A–H) phase.

The activity coefficients of aqueous species (γ_i) were determined using the Truesdell–Jones equation, which is an extension of the Debye–Hückel equation (Equation 5) (Helgeson et al., 1981).

Here γ_i and z_i are the activity coefficient and charge of the ith aqueous species, respectively; A_γ and B_γ are temperature- and pressure-dependent coefficients; I is the molal ionic strength; X_jw is the molar quantity of water; and X_w is the total molar amount of the aqueous phase. A common ion size parameter, $a˙$ (0·367 nm), and short-range interaction parameter, b_γ (0·123 kg/mol), were used, treating potassium hydroxide (KOH) as the background electrolyte (Helgeson et al., 1981).

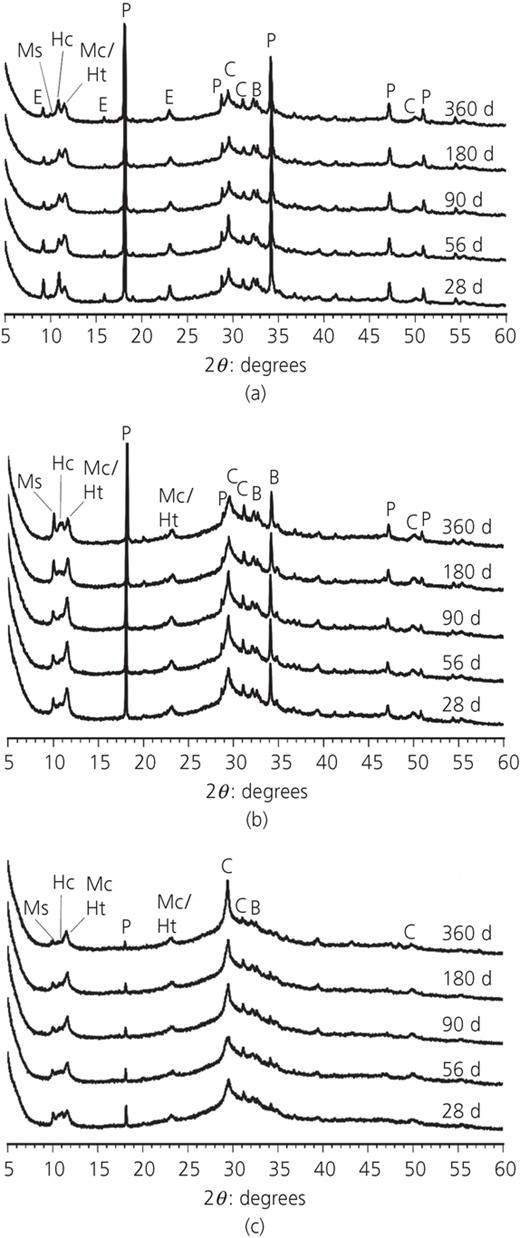

X-ray diffractograms highlighting the impact of the varying levels of slag in the hydration products of the blended cements assessed are depicted in Figure 4. Phases present for each curing time and blend ratio are portlandite (ICSD #15471), calcium hemicarboaluminate-AFm (hemicarbonate, PDF #00-036-0129), calcium monocarboaluminate-AFm (monocarbonate, PDF #00-036-0377), calcium monosulfoaluminate-AFm (monosulfate, ICSD #100138), a hydrotalcite-like phase (PDF #00-014-0525), ettringite (ICSD #16045) and C–A–S–H (PDF 34-0002).

In the 1:1 BFS:PC grout, evidence of the formation of ettringite (with a distinctive peak at 9·08° 2θ) can be seen at each age tested; however, between 28 d and 56 d the intensity of this peak drops just as a slight increase in monosulfate (9·93° 2θ) emerges. The ettringite transforms into monosulfate when the ratio of SO₄²⁻ to Al³⁺ decreases (Clark and Brown, 1999), as is the case as more slag reacts. The 3:1 BFS:PC system exhibits a very small ettringite peak intensity after 28 d and none at later curing ages, while the 9:1 blend exhibits no ettringite and has a much more distinct monosulfate peak.

Other AFm phases, such as hemicarboaluminate and monocarboaluminate, are detected (10·75° and 11·5° 2θ) as a result of reaction of the small amount of calcite in the cement (as identified by XRD, Figure 4) during hydration, and potentially some superficial carbonation contamination of the samples. The availability of calcite restricts the formation of monosulfate (Schöler et al., 2015), leading to a weak reflection assigned to this phase within the 1:1 grout. Within the 3:1 and 9:1 grouts the monosulfate peak is more pronounced compared with grouts with lower BFS content, as the sulfate levels are not high enough to form ettringite at the elevated curing temperature used here (35°C), except perhaps in the very early stages of hydration, and instead AFm phases were formed.

The hydrotalcite-like phase is formed as a solid solution with a varying Mg:Al ratio, which impacts its crystal structure (Gastuche et al., 1967; Pausch et al., 1986); therefore, the position of its basal reflection peak may vary between 11·2° and 11·6° 2θ (Ke et al., 2016, 2017; Richardson, 2013). All three grouts assessed have distinct peaks at 11·6° 2θ; within the 1:1 grout this can also be attributed to monocarbonate; however, for the 3:1 and 9:1 grouts it is likely that this peak can instead be attributed to a hydrotalcite-like phase. The magnesium oxide content of the slag used in this study is 9·9 wt% Table 1, which is sufficient for hydrotalcite-group minerals to form in slag-dominated binders (Provis and Bernal, 2014). There is also less calcite available to form carboaluminate phases when the PC content is low, which further supports this line of reasoning. The peaks corresponding to the hydrotalcite-like phase have a much greater intensity in the 3:1 grout than the others, which is attributed to the greater degree of hydration of slag in this cement.

Portlandite and C–A–S–H gel were the hydration products with the highest peak intensities for the 1:1 and 3:1 grouts. The peak intensity of portlandite decreased with the increasing of BFS content, and in the case of the 9:1 grout, at longer curing times. The consumption of portlandite with time in the 9:1 grout leads to the formation of more C–A–S–H, as more silicon becomes available from the dissolution of slag, as the hydration progresses.

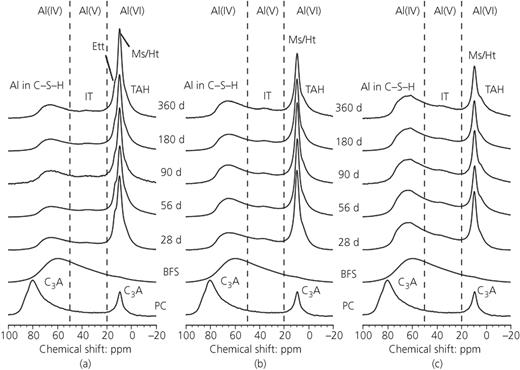

Figure 5 includes the ²⁷Al MAS NMR spectra of the anhydrous PC and BFS, along with those of the hydrated samples. The spectrum of the anhydrous BFS displays a very broad resonance between 50 and 80 ppm, centred around 67 ppm. This is consistent with a tetrahedral aluminium coordination state. Anhydrous cement contains two aluminium-containing phases: tricalcium aluminate (aluminate) and tetracalcium aluminoferrite (ferrite). From the broad peak around 81 ppm (Andersen et al., 2003, 2006) and the sharp peak at 9·4 ppm it is assumed that only aluminate can be identified here by NMR, owing to the suppression of the signal from the ferrite phase, which can be attributed to the close proximity of iron to the aluminium nuclei in that phase (Brunet et al., 2010).

Samples cured for 28 d or more, across all blend ratios, do not display any evidence of the C₃A peak at 81 ppm, indicating that essentially all of the aluminate in the PC has reacted. Within the Al(IV) region, a shoulder emerges to the left of the slag peak at 71 ppm for all samples. A resonance at this chemical shift is indicative of aluminium substitution within the C–S–H silicate chains (Andersen et al., 2003; Faucon et al., 1999; Pardal et al., 2012; Richardson et al., 1994; Sun et al., 2006). There is clearly a greater influence in the Al(IV) region with increasing slag content in the grouts. In the 1:1 grouts there is only a slight shoulder on the underlying broad feature; however, in the 3:1 and particularly the 9:1 grout the peak at 71 ppm becomes more defined. The increasing definition of the 71 ppm peak indicates more incorporation of aluminium within the C–S–H gel, which takes place mainly at the Q² bridging sites within the dreierketten silicate chain structure (L'Hôpital et al., 2016a; Richardson, 2014).

The Al(V) species exhibited at 36 ppm was identified in all formulations as interlayer charge balancing aluminium (denoted IT) (Sun et al., 2006).

Noticeable changes occur within the Al(VI) region of the spectra between 0 and 20 ppm as a function of curing time and slag content. Within this region it is evident that ettringite is only observed, at around 13 ppm (Andersen et al., 2003, 2006), in the 1:1 grout from 28 to 360 d. The sharp ettringite peak appears to become less defined at longer curing times. This peak is not evident at all in the 3:1 and 9:1 grouts, consistent with the XRD data (Figures 4(b) and 4(c)). There are clearly not enough sulfate ions within the solution to stabilise the ettringite in the lower PC containing grouts and for later age 1:1 grouts.

Clear evidence of AFm phase formation can be seen at 9·8 ppm; this can be attributed to monosulfate, hemicarbonate and/or monocarbonate owing to the interchangeability of the charged ion within AFm phases, [Ca₂(Al(OH)₆)·X·xH₂O] where X is one unit of a single charged ion or half a unit of a doubly charged ion (Taylor, 1990). This peak may also indicate the presence of octahedral aluminium in hydrotalcite (expected at 9·7 ppm, so strongly overlapping the AFm resonance). All of these phases were identified in these grouts by XRD (Figure 4) and contribute to the peak intensity in this region. A stronger resonance at this chemical shift was observed in the 1:1 grout as a result of the presence of larger amounts of cement supplying calcite and gypsum. At 3·9 ppm, the third aluminate hydrate (TAH) was identified in all grouts and curing times. The lack of sulfate ions and an increase in aluminium present in the cements with the higher BFS contents leads to a more distinct resonance assigned to the TAH phase (Andersen et al., 2006).

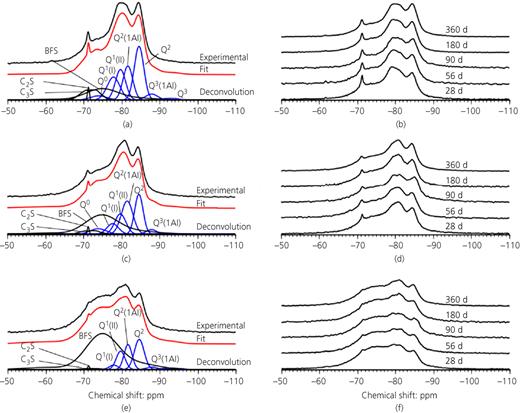

Figure 6 shows the ²⁹Si MAS NMR spectra of each sample analysed; Figures 6(a), 6(c) and 6(e) show examples of the deconvoluted ²⁹Si MAS NMR of the 1:1, 3:1 and 9:1 grouts, respectively, after 360 d of curing, while Figures 6(b), 6(d) and 6(f) show the full sets of spectra as a function of curing time. In conducting the deconvolutions, peaks associated with the C–A–S–H gel were limited to a line width of 3·5 ppm (FWHM) and the peak positions were allowed to vary within ±0·1 ppm of the values provided in Table 4, to account for the variation of the local environments of silicon within this disordered phase.

The broad glassy slag peaks overlap the signals from unreacted alite and belite, alongside the Q⁰, Q¹(I), Q¹(II) and Q²(1Al) sites of C–A–S–H gel, where the two Q¹ environments are distinguished by the nature of the charge-balancing cations (monovalent and divalent), whose differing field strengths lead to the observation of separate resonances (Bernal et al., 2013; Myers et al., 2014). The slag peak overlaps the monomeric and dimeric silicate species (Q⁰, Q¹(I) and Q¹(II)) to a significant extent, which may impact the quantification of the Ca/Si ratio within the C–A–S–H gel. The site located at −74·0 ppm represents a hydrated silicon monomer, Q⁰; however, the precise structure in which this site is located is still unknown. Previous studies have highlighted that this silicon environment is linked with greater slag content within the BFS:PC system (Bernal et al., 2013, 2014; Richardson et al., 1993), and this was the case for the 3:1 grout as seen in Table 5, where raising the slag content and increasing the hydration of the slag results in a greater Q⁰ intensity than was observed for the 1:1 grout. This was not the case for the 9:1 ratio; it is possible that the lower degree of slag hydration in the 9:1 system resulted in a lower intensity for this peak.

Increased PC content resulted in the presence of more Q¹ sites due to the higher level of calcium supplied by PC. Correspondingly, the Q¹ prevalence decreased, and Q²(1Al) and Q² increased, over time as more slag hydrated, thus increasing the amount of silicon available to extend the silicon chains within the C–A–S–H gel. The chemical shift values used in the deconvolutions for the silicon linked to the aluminium substituted sites (Q²(1Al)) and the paired silicon sites (Q²) were more similar to those used in the literature for white PC and BFS:PC (Dai et al., 2014; Dyson et al., 2007; Skibsted and Andersen, 2013; Sun et al., 2006) than those found in alkali-activated slag (Bernal et al., 2013), as the chemical environments of these peaks are influenced by the alkali concentration. Each specimen exhibited signs of aluminium substitution within a cross-linking site in the C–A–S–H gel (Q³(1Al)) at −88 ppm, and small signs of cross-linking silicon (Q³) at −93 ppm. These peak intensities are much smaller than the other peaks, and are observed at similar levels across each time and blend ratio. Cross-linking is most dominant within the 1:1 and 9:1 systems, where aluminium substitution is most prevalent.

Table 6 summarises the structural characteristics of the C–A–S–H gel in each sample, calculated from the deconvoluted NMR spectra (Richardson, 2014). The mean chain length (MCL) (Equation 6) was seen to increase with BFS content and curing duration, as a result of the increased aluminium and silicon levels within the C–A–S–H; Ca/Si ratios calculated from Equation 16 of the paper of Richardson (2014) decreased with increased curing duration, whereas aluminium/silicon (Al/Si) (Equation 7) remained constant, consistent with the discussion presented above. Despite evidence of less cross-linking within the 3:1 system than the others, it still achieved a greater MCL because of the higher proportion of bridging sites when compared with the 1:1 system.

The Ca/Si ratio of each grout calculated from this method was significantly lower than what has been observed in the literature for comparable cements (Richardson and Groves, 1992). Rarely has the Ca/Si ratio been published when derived from ²⁹Si MAS NMR data of hydrated cementitious materials; however, the Al/Si and MCL are often provided using this methodology (Andersen et al., 2003; Dai et al., 2014; Skibsted and Andersen, 2013; Sun et al., 2006). Generally, transmission electron microscopy energy dispersive X-ray spectroscopy (TEM-EDX) or scanning electron microscopy energy dispersive X-ray spectroscopy (SEM-EDX) data are considered to provide more accurate results when considering the Ca/Si values of C–A–S–H gels in hydrated cementitious systems. The nature of the process of deconvoluting NMR spectra based on the local environment of silicon contains many issues because of the wide variety of potential interaction ions that impact the chemical shift of each silicon species, specifically the dimer species (Q¹), which would have the greatest impact on the Ca/Si values. As a result of the high level of variation and overlapping signal of anhydrous material, a fully detailed structural model considering the Ca/Si based on the site concentration values determined from NMR has yet to be created to convert this information into Ca/Si values similar to those determined by more direct methods. Richardson (2014) provided an in-depth overview of how using different structural models influenced the Ca/Si ratio determined using NMR data, and highlighted the variation in the possible results based on which model was used. It was concluded that the use of NMR data consistently yielded lower Ca/Si values when compared to SEM or TEM results. Analysis using the cross-linked substituted tobermorite model (CSTM) method (Myers et al., 2013) provides good agreement for NMR data of alkali-activated slag systems, but its application here also tended to produce low Ca/Si values. Despite these issues, NMR data can still supply useful information about the trend in Ca/Si values based on the blend ratio and time of curing of the cement systems of interest in this study; the actual values should be treated as semi-quantitative rather than absolute.

As described in the earlier section entitled ‘²⁷Al and ²⁹Si MAS NMR’, the fitted ²⁹Si MAS NMR spectra of the anhydrous materials were scaled and used as components in the deconvolution of the spectra of the reaction products, to determine the degree of hydration of each constituent within the hydrated samples. Comparison of the degree of hydration between the (independent) ²⁹Si MAS NMR and selective dissolution techniques for BFS, Figure 7, displays good agreement between the two techniques. The BFS in the 1:1 and 3:1 blends was slower to react when compared to some reports of other BFS:PC blended cements of the same proportions (Adu-Amankwah et al., 2017; Lumley et al., 1996), but does align better with various other reports in the literature (Durdziński et al., 2017a; Escalante et al., 2001; Snellings et al., 2014). This may be attributed to the rather lower w/s ratio used here, which is based on the UK nuclear industry's specification for acceptance mixes (Angus et al., 2010; Utton et al., 2008). Determination of the extent of reaction by NMR spectral deconvolution has an error margin of approximately 5%, as previously discussed based on the relaxation delay (Poulsen et al., 2009; Skibsted et al., 1995), whereas the selective dissolution technique used here has reported errors of up to 10% (Mohan and Taylor, 1985), so these possible variations must also be considered when comparing the results reported here with those available in the literature. Higher slag inclusion would be expected to result in a lower degree of hydration of the slag, as there is less portlandite produced by PC hydration that would activate the latent hydraulic character of the slag, and this trend was borne out in the current results. After 360 d the 9:1 system had approximately half the degree of reaction of the 3:1, whereas the difference between 3:1 and 1:1 was less marked; both of these systems contained significant residual portlandite according to the XRD data in Figure 4, so this was evidently less of a limitation at slag contents of up to 75%.

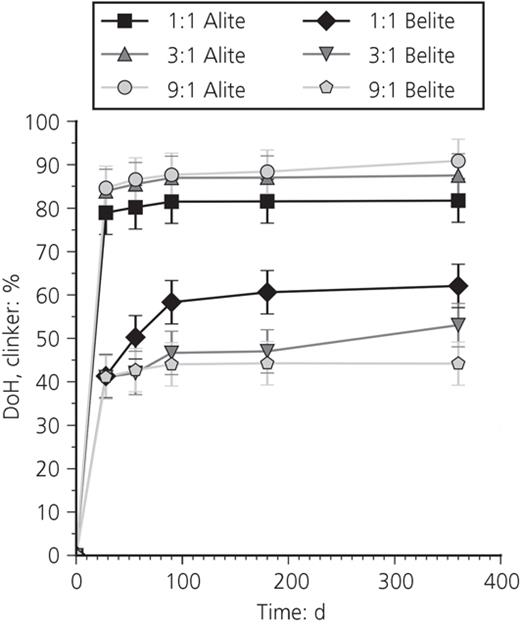

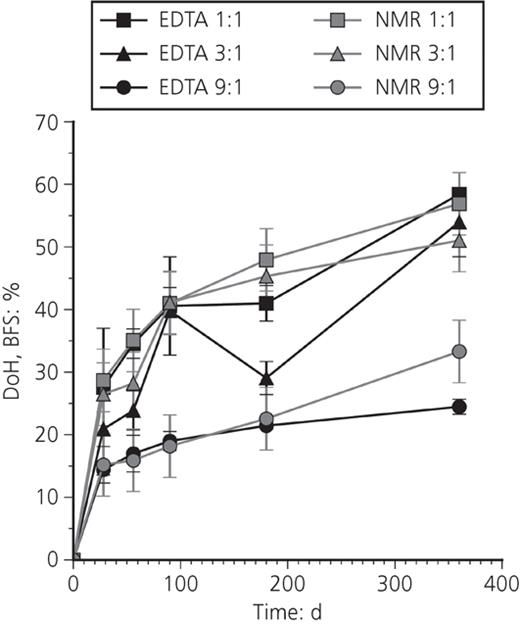

Across all blend ratios, the degree of alite hydration as determined by deconvolution of ²⁹Si MAS NMR spectra reached at least 79·0% after 28 d, but from this time up to 360 d there was only a small further increase (Figure 8). Higher BFS content led to a higher degree of hydration of the alite, possibly due to the higher water to alite ratio in the systems with higher BFS content, where the slower reaction of the slag means that more water and space are available for PC hydration in the early stages of the reaction process, in a form of the filler effect commonly seen in blended cements, but taken to an extreme case where the cement is only 10–25% PC. A moderate degree of reaction of belite can be seen in all blends assessed, but not exceeding 65% even at 360 d in any of the cements evaluated; the belite in the 9:1 grout showed very little reaction beyond 90 d. This may be because belite is more prone to react at higher pH (Kawabata et al., 2013), and the pore solution pH of BFS:PC cements is reduced when they contain very high fractions of BFS (Vollpracht et al., 2015).

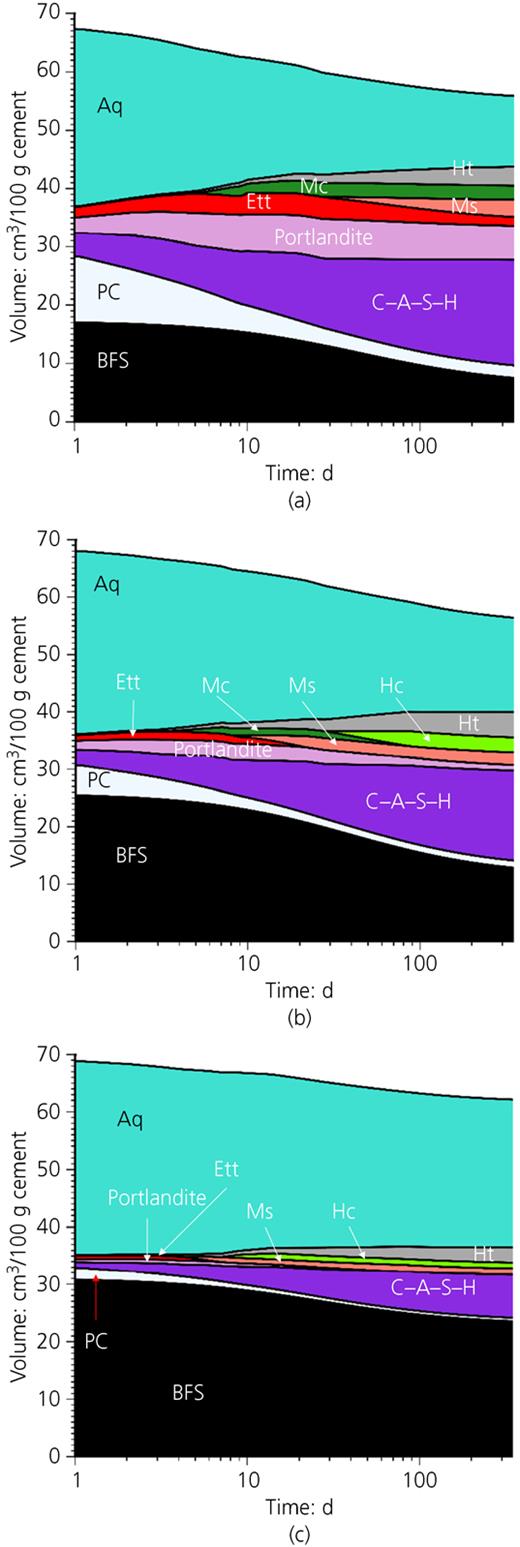

Using the degree of hydration data presented above, prediction of the phase assemblages by way of thermodynamic modelling (Figure 9) gave results that corresponded well with the phases identified experimentally.

As expected, the C–A–S–H gel was dominant in all grouts, and was predicted to entirely consume portlandite by 28 d in the 9:1 system. The fact that this was not observed experimentally (i.e. a small quantity of portlandite persisted at all ages in Figure 4) may indicate spatial heterogeneity of the blended cement leading to deviations from the assumed equilibrium behaviour, as has been discussed recently by Skocek et al. (2017) for other low-clinker cements. Portlandite formation was much higher in the 1:1 cement (14 wt% after 360 d) than the 3:1 cement (10 wt% after 360 d), which corresponds well with the XRD data.

Ettringite appears in the model phase assemblages at early age for all blends assessed; however, in the 3:1 and 9:1 cements it was predicted to be replaced by monosulfate, after 60 d and 6 d, respectively. From the experimental data presented above, only a small amount of ettringite was observed in the 3:1 system at 28 d, and none from 56 d onwards, whereas no ettringite was observed in the 9:1 system. Ettringite was still predicted in the 1:1 system after 360 d, along with increasing monosulfate as curing time and the degree of hydration of the BFS increased. It is possible that experimental factors not fully captured in the thermodynamic model – particularly the influence of sulfide provided by the slag, which can be incorporated into AFm phases (Nedyalkova et al., 2017) and/or oxidised to sulfate – will lead to under-prediction of the stability of ettringite in the model applied here. However, the predicted increase in monosulfate content in higher BFS cements did align well with the experimental data. It should also be noted that the TAH phase identified by NMR was not included within the thermodynamic database used in this work.

Hydrotalcite-group phase formation was predicted to increase with BFS content and degree of hydration of the slag; after 360 d hydrotalcite comprised as much as 12·6 wt% of the solid binder constituents in the 9:1 system. Thus, the peak at 11·6° 2θ in Figure 4 is identified as mainly attributed to hydrotalcite formation. Figure 9 displays the reducing amount of monocarbonate forming when lower levels of PC are available in the system to provide calcite. In the 3:1 and 9:1 systems, hemicarbonate becomes the dominant carbonate hydrate phase at later ages, rather than monocarbonate, as can be seen in the XRD results. Matschei et al. (2007a, 2007b) demonstrated that the lower amount of CO₃²⁻ ions present in the pore solution causes this phase transition from monocarbonate to hemicarbonate.

The use of the high-Ca/Si end-members in the model may be the cause of the under-prediction of portlandite formation in the 9:1 system. The Ca/Si ratio of C–A–S–H in the modelled 9:1 system after 360 d was 1·373 (Table 7), which is higher than the 1·03 determined from the NMR spectra here (Table 6), but more similar to the value published by Richardson and Groves for a 9:1 cement also based on UK nuclear industry-specification materials, which was 1·29 (Richardson and Groves, 1992). There was a better agreement for the 3:1 system as it was closer to the value expected from literature data, Ca/Si between 1·34 and 1·40 (Richardson and Groves, 1992). In the 3:1 and 9:1 systems, the Ca/Si ratio decreases as Al/Si increases. As expected, the Ca/Si ratio in the C–A–S–H is highest in the 1:1 formulation but, using this model, it was only marginally higher than the 3:1 after 360 d.

Only the 1:1 system shows no alteration of the calculated C–A–S–H molar ratios with time, consistent with the NMR results (Table 6) which showed minimal variation. Under-prediction of the Ca/Si in the 1:1 system corresponds to the over-prediction of Al/Si within the C–A–S–H gel. Another limitation is that once the Ca/Si ratio of the C–A–S–H gel reaches 1·4 to 1·5, portlandite formation is more favourable than incorporating more calcium within the C–S–H gel, which limits the Ca/Si ratio to this range.

As a result of the minimum Ca/Si of C–A–S–H formation required before portlandite can be formed, no portlandite was observed in the simulated 9:1 system, despite the fact that portlandite was observed in the X-ray diffractograms up to 360 d. This issue was highlighted in the creation of the CSHQ model whereby, once the C–S–H reached a Ca/Si ratio of 1·5, portlandite would begin to form alongside the C–S–H (Kulik, 2011).

However, a promising trend in the model results is that, with higher levels of slag hydration, the Ca/Si value decreases and the Al/Si value increases, as was seen in the NMR results. Over-prediction of the MCL within the 1:1 grout occurs owing to the poor agreement of the Ca/Si and Al/Si values; however, the 3:1 and 9:1 systems display better agreement despite the differences between predicted and experimental Ca/Si ratios.

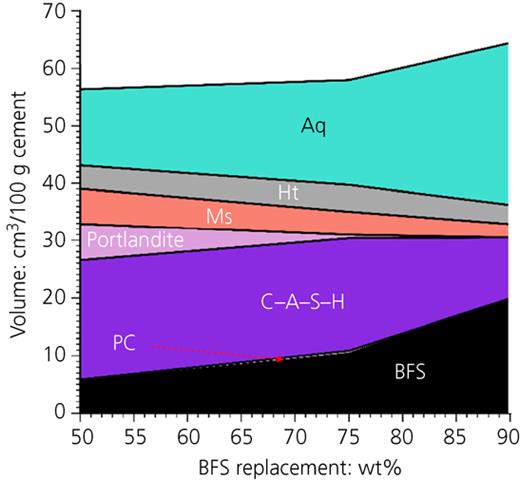

The applicability of this method to samples cured for more extended durations than those evaluated in this study is of critical importance when applying this method to long-term storage or disposal of wastes. Here the thermodynamic modelling approach described in the earlier section ‘Thermodynamic modelling method’ is applied for modelling 20 year old BFS:PC samples, whose detailed characterisation was carried out by Taylor et al. (2010). The phase assemblage predictions show good agreement with the identified hydration products forming in the aged cements (Figure 10). The dominant phases at later age are hydrotalcite and C–A–S–H gel, and the good agreement regarding portlandite content is particularly notable (Table 8).

At advanced curing ages the end-member model used in this study for blended cements was struggling with the same issues as the earlier age samples in the section ‘Comparison of C–A–S–H gel structural characteristics between model and experiment’, whereby the C–A–S–H gel required a certain Ca/Si ratio before portlandite could form. This has led to an over-prediction of the Ca/Si ratio of the C–A–S–H gel (Table 9) and no predicted portlandite formation in the 9:1 system. There was a greater variation of the Ca/Si ratio in the 9:1 system when compared to the 1:1 and 3:1 systems, due to the much lower amount of calcium available for reaction.

Under-prediction of the Al/Si ratio was not as severe as the over-prediction of the Ca/Si ratio. There was a small increase in Al/Si as BFS replacement increased. Based on the geochemical equilibrium calculations that govern the software, the bulk Ca/Si and Al/Si ratios govern the performance of the C–A–S–H end-member model. As similar levels of bulk Al/Si were observed in each system (approximate Al/Si = 0·35), there was little variation in the Al/Si ratio of the C–A–S–H (which is limited in the model by the allowable degree of incorporation of Al into Si sites in the tobermorite structure); however, the Ca/Si ratio was much lower within the 9:1 system which caused the greater variation as a function of age. Following the experimental results, the later age samples had a larger MCL than the earlier age samples modelled. Values from the modelling work were significantly lower than those observed experimentally; however, the clear increase of MCL in all grouts when compared to the earlier age samples does indicate reasonable applicability of the model to later age cements.

Prediction of cement hydrate phase assemblages using thermodynamic modelling is fundamentally dependent on the availability of a complete and accurate database for all phases present, and this work has demonstrated that this still poses some challenges in the description of BFS–PC blends at high BFS content. Qualitatively, good agreement of the predicted phase assemblage can be observed for the 1 year cured cement systems between the NMR and XRD results. All the main phases observed experimentally were present in the simulated phase assemblages, and in comparable proportions at each age of curing. This agreement highlights the potential of using ²⁹Si MAS NMR with careful spectral deconvolution for determination of the degree of hydration for silicon-containing cement constituents.

The calculation of structural characteristics of the C–A–S–H gel using a thermodynamic modelling approach still has limitations; however, it is promising that the trend of Ca/Si, Al/Si and MCL follows what is observed from experimental results. The end-member compositions and energetics of the C–A–S–H gel still require refinement, possibly including introduction of alkali-containing end-members and/or the incorporation of aluminium into interlayer sites. Improvement of the aqueous solution modelling approach may also be a method of improving the structural accuracy of the solid solution phases within blended cements. Methods such as the specific ion interaction theory or Pitzer models may lead to an improved ability to predict the phase assemblages of these complex systems. Introducing these methods will also allow a greater level of accuracy when combining this method for predicting interactions of cements with wastes.

This work was funded by the Engineering and Physical Sciences Research Council (EPSRC) UK in partnership with the National Nuclear Laboratory, through the iCASE scheme. This research was performed in part at the MIDAS Facility, at the University of Sheffield, which was established with support from the UK Department of Energy and Climate Change. The NMR spectra were collected using the EPSRC UK national solid-state NMR service at Durham University. The authors would like to thank Shishir Mundra, Sam Walling, Brant Walkley and James Vigor for their helpful advice and discussion when performing data analysis.

A_γ

temperature-dependent electrostatic parameter in the extended Debye–Hückel equation

$a˙$

ion size parameter in the extended Debye–Hückel equation, nm

B_γ

pressure-dependent electrostatic parameter in the extended Debye–Hückel equation

b_γ

short-range interaction parameter in the extended Debye–Hückel equation, kg mol⁻¹

D

corrected degree of hydration

HT_m

maximum quantity of hydrotalcite-like phase, g

HT_s

mass of hydrotalcite-like phase created based on percentage of slag reacted, g

I

ionic strength of the aqueous electrolyte phase in the extended Debye–Hückel equation, mol kg⁻¹

m_MgO

mass of magnesium oxide within the BFS, g

m_MgO/HT

mass percentage of magnesium oxide within hydrotalcite-like phase, wt. %

R

mass of residue after selective dissolution including PC and BFS corrections, g

R_c

calculated initial residue without any formation of hydrotalcite, g

X_jw

molar quantity of water in the extended Debye–Hückel equation, mol

X_w

total molar amount of the aqueous phase in the extended Debye–Hückel equation, mol

z_i

charge of aqueous species i

γ_i

activity coefficient of aqueous species i
