Shaft friction changes for cyclically loaded displacement piles: an X-ray investigation

The mechanisms controlling the macroscopic behaviour of sand–pile interface during pile installation and cyclic loading are complex and are difficult to fully understand from field observations. Jardine & Standing (2000, 2012) reported results of multiple axial cyclic loading tests conducted on steel open-ended pipe piles driven in sand, at Dunkerque, northern France. The authors identified three kinds of responses (stable, unstable and meta-stable), depending on the mean shaft load, the shaft cyclic amplitude and the number of cycles. They also noted that a large number of low-level stable cycles can have beneficial effects on shaft capacity, whereas high-level cycles can lead to shaft failure and halving of the axial capacity within a few tens of cycles. As part of the national project SOLlicitations CYcliques sur Pieux de fondation (SOLCYP), Benzaria et al. (2013) obtained the same trends for bored piles installed in dense Flanders sands, at Loon Plage, northern France. A remarkable laboratory investigation using a pressurised calibration chamber was performed in the framework of a combined research effort by Laboratoire 3SR and Imperial College London (Rimoy et al., 2015; Tsuha et al., 2012; Silva, 2014). The results, compatible with those obtained in the field, offer further insights into the local effective stress paths developed during cycling.

In a number of recent contributions, the behaviour of soil–pile interfaces has been studied by means of DEM simulations (Jiang et al., 2006; Lobo-Guerrero & Vallejo, 2007; Butlanska et al., 2014). However, the authors are not aware of any equivalent experimental study. Numerous laboratory investigations have been reported on related topics of sand kinematics, grain crushing, local porosity changes and macroscopic interface behaviour (White & Bolton, 2002; Yang et al., 2010; Silva et al., 2013; Arshad et al., 2014). The mechanisms controlling the macroscopic response of the interface were observed either post-mortem or in plane strain and mainly during pile installation.

This work focuses on the sand grains behaviour in the vicinity of a pile during axial cyclic loading. The tests are performed in a mini calibration chamber installed in an X-ray scanner. The pile is installed by jacking and submitted to 1000 displacement-controlled cycles under constant radial stress. The tests do not represent accurately real engineering applications, where piles supporting bridges, tidal or wind turbines are subjected to load-controlled cycles due to their environment. However, the combined use of three-dimensional (3D) tomographic imaging and advanced tools such as 3D-digital image correlation (DIC), allows us to obtain quantitative information at the grain scale and offers valuable data set against which theoretical or numerical approaches can be tested.

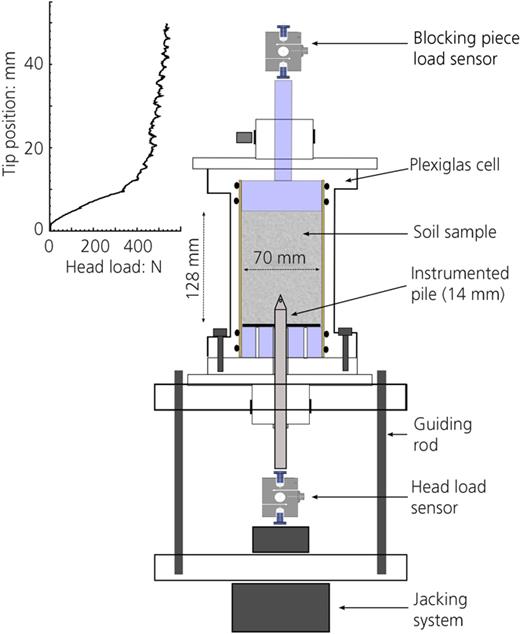

The tests are carried out inside the X-ray scanner of Laboratoire 3SR, in Grenoble, France. The chamber consists of a cylindrical cell transparent to X-rays in order to image the deformation of the sample while running a test (Fig. 1). The soil used for this study is Glageon sand, whose index properties are summarised in Table 1. Glageon sand is a calcareous sand derived from limestone rock crushed in Bocahut quarry, France, with D₅₀ = 1·125 mm and a relatively uniform grading (between 1·00 and 1·25 mm). Grains are large enough to be identified and tracked individually from one image to another (see Section ‘X-ray Tomography and 3D-DIC’). The angular and elongated shape of the grains of Glageon sand makes them highly crushable, which is the main reason they were selected for this study. In this paper, results from three nominally identical tests (GLAG-C1, GLAG-C2, GLAG-C3) are presented. The samples are dry and their initial relative density ranges from 70 to 90%. At this relative density, triaxial compression tests give φ′ values of 48°.

The cone-ended model pile is made of aluminium, due to its very low X-ray absorption coefficient. The diameter of 14 mm allows for its instrumentation with a load sensor at its end to measure the tip load. The total load applied on the pile is measured thanks to the head load sensor. By subtracting the tip load from the total load, the shaft capacity is also measured. The model pile has a smooth surface with a roughness of about 0·7 μm. The roughness of sand–pile interface is known to be one of the most important factors affecting the unit shaft resistance (Fioravante, 2002; Hebeler et al., 2015; Tehrani et al., 2016). Uesugi et al. (1988) also showed the effect of the roughness of the interface on the formation of a shear band in the vicinity of the interface. They noted that sand particles tend to slide along a smooth surface without large deformation. Therefore, in this study, the friction mobilised by the shaft is lower than the one measured in the field. Direct shear tests on sand–aluminium interface give δ′ = 15° whereas field piles have a roughness that leads to a typical δ′ of about 30°.

The pile is installed by jacking at a rate of 25 μm/s until an initial embedment depth (either 50 or 60 mm) under an isotropic stress of 100 kPa (see Fig. 1). Note that, for practical reasons, the pile is installed from the bottom of the cell, that is, it moves upwards. Following the installation phase, the pile is submitted to 1000 axial displacement-controlled cycles. The cycles are performed at the same rate as for pile installation, with an amplitude of ±0·5 mm around the pile-tip reference position, alternating between compression and tension phases (two-way cycles).

At earth gravity, the main effect to be considered for small-scale calibration chambers is that of chamber boundaries. In fact, except in the very specific case of ‘active’ boundary conditions (i.e. under constant normal stiffness) pile behaviour is very sensitive to the ratio of the chamber diameter to the pile diameter (Parkin & Lunne, 1982; Been et al., 1986; Boulon & Foray, 1986; Foray, 1991). Schnaid & Houlsby (1991) reported that this ratio should be higher than 50 for dense sands. More recently, Salgado et al. (1998) suggested that higher values (>100) may be required in order to reach complete similitude with field behaviour.

A second important source of scale effects in model pile tests is the ratio of the pile diameter to the mean particle size. In the case of a coarse sand, the layer of grains around the shaft experiencing shearing becomes too large, which can lead to excessive normal effective stress and affect directly the shaft resistance as reported by Lee et al. (2011). To minimise this effect the pile diameter should be at least 80 times the mean particle size according to Peterson (1988).

In this study, the ratio of the chamber to the pile diameter and the ratio of the pile diameter to the mean particle size are, respectively, 5 and 14, which is far below the limits proposed in the literature and cannot reproduce field conditions. This design was selected in order to access new information at the grain scale and was restricted by the imaging tools.

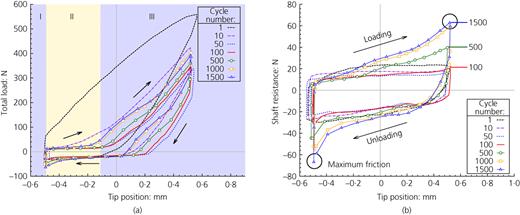

Figure 2(a) shows the evolution of the total load applied to the pile against tip position as measured in test GLAG-C1. When tip position goes from –0·5 to +0·5 mm, three different phases are observed after the first two cycles or so. At the very beginning of each cycle (phase I), the measured response is very stiff, which is expected due to load direction reversal. A sudden change in slope is then observed (phase II), which becomes more important after 50 cycles. The load increases slightly with a smaller tangential stiffness and less rapidly till a tip position of around −0·1 mm, thereafter it starts increasing again (phase III). Li et al. (2012) observed relatively similar response, with three different phases, in the case of pre-jacked piles. They attributed the softening behaviour observed during the second phase to a high densification of the sand at the pile base. In this study, tomographic images taken at different stages of the loading reveal that in fact a gap forms between the pile tip and the grains, due to a high densification of the sand ahead of the pile tip. This phenomenon indicates that during phase I, the head load is only due to the friction on the shaft, while the tip is completely unloaded. Once the friction is mobilised, the head load does not vary significantly (phase II) until the tip comes again in contact with the grains (phase III).

Figure 2(b) shows the shaft resistance during the cycles. Two different phases can be identified. For the first 50 to 100 cycles, shaft friction slightly decreases (of about 15 N), whereas it increases continuously and significantly for the subsequent load cycles. When the tip is at ±0·5 mm, the curves show a peak, which become increasingly marked with increasing number of cycles.

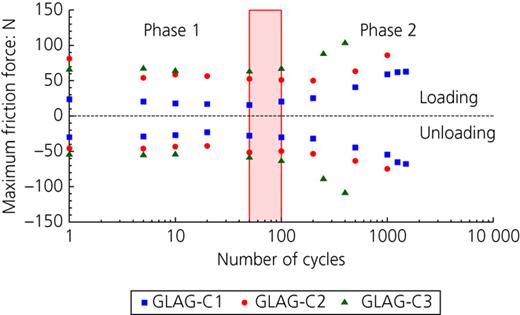

Figure 3 presents the force induced by friction measured at the peak for various tests performed on Glageon sand, with identical testing parameters. The shaft resistance at the end of the cycles is twice as big as the value measured during the first cycle. The transition between the two phases occurs at 50–100 cycles (shaded region in the figure). From displacement controlled calibration chamber model pile tests, Silva (2014) and Bekki et al. (2016) obtained similar results but the transition between the two phases was found around 3000 cycles and 300 cycles, respectively, for an amplitude of cycle of ±0·5 mm. The difference in the required number of cycles to gain shaft resistance is likely due to the size effects discussed in Section ‘Scale Effects’.

The loading on the pile is stopped after given amounts of cycles (1, 50, 100, 500 and 1000) for 3D scanning. Restricted by the sample size, scans are taken in ‘local’ tomography, that is, with a field of view focused on the tip and the shaft, for a pixel size of 40 μm (which means that there are about 25 pixels across a grain diameter). The X-ray beam is set to a tension of 150 kV and a current of 200 μA. Figure 4(a) shows a 3D rendering after pile installation.

3D fields of displacement and strain can be obtained using the 3D-DIC code, TomoWarp2 (Tudisco et al., 2017). 3D-DIC is a powerful tool for assessing the spatial transformation between two digital images, here tomographies. A group of grains within a subdomain, commonly called correlation window (containing about 8 grains in the present case), is tracked from one configuration to another. 3D-DIC was successfully used to study the installation of a pile in sand (Silva & Combe, 2014). The results, fully three-dimensional, showed distinct regions where grains rearrangement concentrates. A ‘recirculation’ of sand grains was also observed close to the tip during the penetration of the pile.

In this work, a discrete version of TomoWarp2, developed at Laboratoire 3SR, is used, which allows for the measurement of the kinematics of each individual sand grain in the sample.

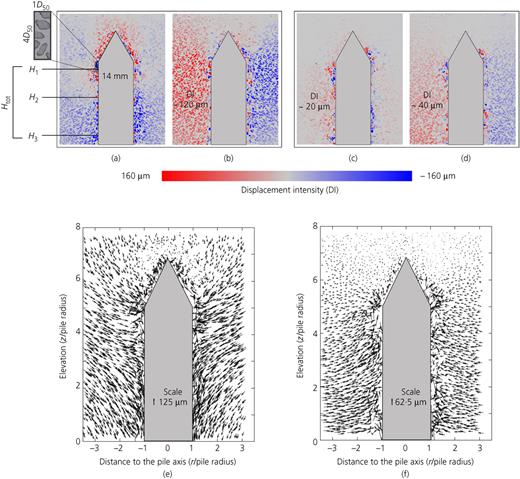

In the following, only the results from test GLAG-C2 are shown, as the results from the other two tests are essentially the same. Typical results from 3D-DIC are presented in Fig. 5 (note that all displacements are measured after pile installation). Two pairs of 3D images are analysed, one from 10 to 50 cycles and one from 500 to 1000 cycles. Note that these two increments, respectively, fall in the first and second phase of behaviour of the shaft resistance defined in Section ‘Macroscopic Response of the Interface’. Cyclic loading induces significant displacements, mainly in the horizontal direction. Grains globally move towards the shaft for both loading steps leading to a radial contraction (Figs 5(b) and 5(d)). The sand mass undergoes very little vertical displacements – less than 20 μm (Figs 5(a) and 5(c)). Hebeler et al. (2015) investigated the effect of particle shape and size on CPT friction sleeve behaviour over a range of counter-face surface roughness values. They noted that, for a conventional smooth CPT, some key aspects of interface shearing are eliminated, which results in a pure sliding failure mechanism. In this study, sand grains tend to slide alongside the shaft (mainly due to the low roughness of pile shaft); however, relative displacements between grains, that is, grain rearrangement occurs – and is measured – around the pile.

Individual displacement vectors for both loading increments are shown in Figs 5(e) and 5(f). Ahead of the pile tip, the displacement vectors are nearly vertical and relatively minute, while around the shaft the displacement vectors have a much larger radial component. The displacement fields also reveal, in both increments, a thin layer around the shaft where the grains are highly disturbed and difficult to track from one image to another. In the first of the two increments shown (Fig. 5(e)), grains are moving downwards. This is likely due to a reduction of the hoop stresses created during pile installation. This effect is erased in the later increment.

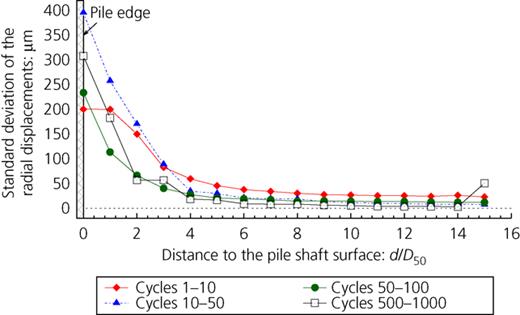

The radial displacements are calculated from vertical and horizontal displacements using the axis of the pile as the axis of reference. The axisymmetry of the displacement field is verified by calculating the standard deviation of the vertical and horizontal displacements on the circumference of the sample. Radial displacements are averaged within a subdomain (see Fig. 5) defined by its distance from the shaft (d), normalised by D₅₀. Three such sub-domains are studied, at three different elevations (H₁, H₂ and H₃ in Fig. 5(a)). Finally, the analysis is also applied to the entire length of the pile (H_tot in Fig. 5(a)).

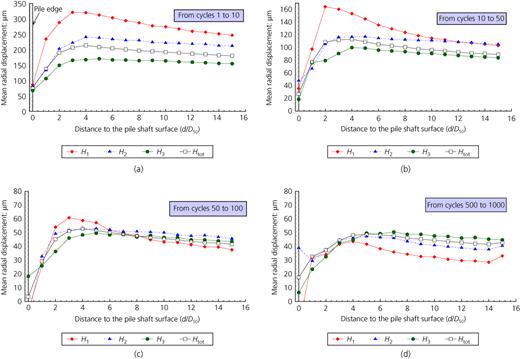

In Fig. 6, average radial displacements are plotted against the normalised distance from the shaft surface. At a distance between 3 and 6D₅₀, the highest radial displacements take place. As one goes closer to the shaft, grains displacements decrease significantly. This region corresponds to a layer of soil experiencing intense shearing, particle crushing and high porosity changes (see Section ‘Porosity changes at the interface’). On the shaft surface, non-zero displacements are measured which are likely due to the rotation of the grains induced by shearing. At a distance greater than 6D₅₀, sand grains are moving homogeneously towards the shaft. It is also noteworthy that the closer the grains are to the tip (elevation H₁), the more they are affected by the loading. By comparing radial displacements after 50 cycles (Fig. 6(b)) and 1000 cycles (Fig. 6(d)), two different trends can be identified. The first tens of cycles cause higher grain movements (100–300 μm). After 50 cycles, displacement intensity (DI) is almost divided by 6 and it is essentially the same at all elevations. Figure 7 shows that the standard deviation of the radial displacements is 20 times higher for the grains close to the pile (d ≤ 3D₅₀). Except for these grains, kinematics are inhibited after 50 cycles.

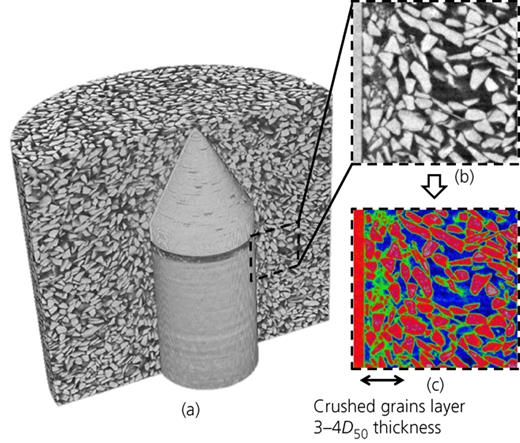

X-ray images are analysed looking at the grey levels in order to assess the effect of cycles on porosity. The study is carried out using the open-source image processing software Fiji (see Schindelin et al., 2012). Three phases are identified in the images as shown in Fig. 4(c): pores (low grey level), intact grains (high grey level) and fines produced by grain crushing. These fines are smaller than the pixel size, therefore, they cannot be resolved at the spatial resolution of the images. However, they can be associated with an intermediate mean grey level. Choosing appropriate values for the grey level thresholds, the percentage of voxels belonging to each phase is estimated within 5-voxels-thickness hollow cylinders centred on the pile axis. The radial evolution of the density of each phase during cyclic loading is plotted in Fig. 8.

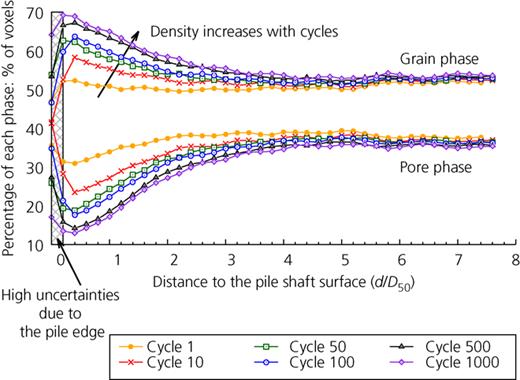

The results show an increase of the percentage of voxels associated to intact grains (without taking fines into account) with increasing number of cycles. Close to the interface, the quantity of grains is 20% higher after 1000 cycles, which indicates a local densification. It can also be observed that the region affected by such densification is about 2D₅₀ for cycle 1 and 4D₅₀ for cycle 1000. In the rest of the sand mass, the proportion of grains and pores remains constant. This result indicates that the thickness of the band adjacent to the shaft is related to the displacements that the grains undergo and to the local shearing loading history. Yang et al. (2010) also report a shear zone 2·4D₅₀ – 8·6D₅₀ wide, after cyclic jacking installation, in their large calibration chamber tests on NE34 Fontainebleau sand (D₅₀ = 0·21 mm). Similar to Silva et al. (2013), in their post-mortem analysis, Yang et al. (2010) suggest that the shear zone thickness grows with the vertical distance from the pile tip, especially when the installation is not monotonic, and is augmented by later static or cyclic loading.

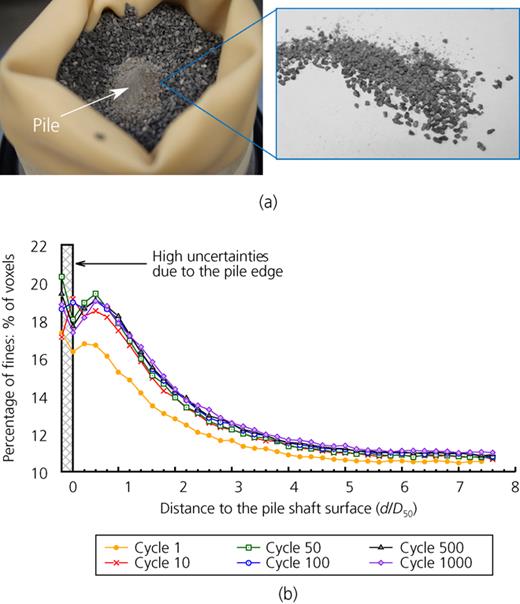

Figure 4(b) shows a layer of crushed grains about 4D₅₀ wide at the interface – see also post-mortem pictures in Fig. 9(a). The powder resulting from grain crushing is highly packed and fills the pores between intact grains. Figure 9(b) shows that fines production increases to about 2% between the first and tenth cycle. Due to their own weight, fines rearrange around the shaft during the first loading and unloading steps, which may explain this apparent increase of the quantity of fines. For a larger amount of cycles, the percentage of fines remains stable, indicating that most of particle crushing occurred during pile installation.

The influence of axial cyclic loading on the behaviour of sand–pile interface has been analysed at the grain scale thanks to X-ray tomography and advanced 3D image analysis. Two distinct phases are identified in the evolution of shaft resistance, according to the number of applied cycles. For these two phases, the measurement of grain kinematics reveals a different behaviour of the sand mass associated with a significant densification at the interface. In the first phase, the sand mass contracts radially within a region of thickness 4D₅₀. This mechanism is likely due to inter-granular rearrangement. In the second phase, sand grains hardly move and the sand mass reaches a threshold density for which the friction on the shaft starts to substantially increase.

In this experimental study, the test conditions are admittedly not representative of true field conditions. In fact, some of the results obtained in this study cannot (and should not) be directly extrapolated to field cases. For example, the positive effect of cyclic loading on shaft resistance is a clear consequence of the very specific way loading cycles are applied (full failure displacement-controlled) – which is rarely the case in the field. However, due to well-defined and fully known testing conditions, the model pile tests presented in this study provide valuable results, which can be used to validate theoretical solutions or numerical models.

The way a pile is installed has a major effect on its mechanical behaviour (Deeks et al., 2005; Li et al., 2012). Thus, the next steps of this research will include the use of different modes of pile installation, in order to isolate (and better understand) the various mechanisms controlling the macroscopic behaviour of sand–pile interface, that is, grain rearrangement, dilatancy/contractancy, grain crushing and production of fines.

The authors gratefully acknowledge Pascal Charrier, Christophe Dano, Matías Silva and Edward Andò, from Laboratoire 3SR, for their contributions. They also thank the three reviewers for their extremely valuable suggestions. Laboratoire 3SR is part of the LabEx Tec 21 (Investissements d'Avenir – grant agreement number ANR-11-LABX-0030).
