Use of fall-cone flow index for soil classification: a new plasticity chart

The Casagrande plasticity chart (Casagrande, 1947) is one of the most recognisable tools in geotechnical engineering. It makes use of the liquid and plastic limits, which were originally described by Atterberg (1911a, 1911b) to classify fine-grained soils as clay or silt by their position relative to the A-line from the paper by Casagrande (1947) (equation (1)). The A-line was originally an empirical line dividing silts and clays (including organic materials) (Casagrande, 1947) but has since become the de facto classification tool for clays and silts, with particle size distribution (in theory the definitive method) being almost completely replaced. The U-line (equation given in the paper by Howard (1984) and shown in this paper as equation (2)) ‘… was recommended by Casagrand[e] as an empirical boundary for natural soils. It provides a check against erroneous data, and any test results that plot above or to the left of it should be verified’ (Howard, 1984: p. 221).

where I_P is the plasticity index and w_L (%) is the liquid limit.

Polidori (2003, 2004, 2007) proposed a revised classification chart to separate fine-grained soils into clays, silts and organic soils by making explicit use of the clay fraction in the classification system (although the clay fraction is not always reported in geotechnical studies and does require additional experimental work). Despite these recent proposed amendments, the Casagrande soil-classification framework is now almost universal, although differences exist in the method for liquid limit determination (e.g. BSI, 1990, 2018a; ASTM, 2017). The different liquid limit test methods (i.e. fall cone as recommended in BSI (1990) and the percussion-cup method as recommended in ASTM (2017)) can cause substantial variations in values of both liquid limit and I_P, as discussed by Haigh (2012, 2016), and hence for the classification of soils which lie close to boundaries. This can have substantial implications, for instance, when design codes are prescriptive about allowable soil classes but methods for testing Atterberg limits change (e.g. Di Matteo et al., 2016). More recently, Reznik (2017) described a non-linear variation of the A-line (reported to be based on over 7000 fall-cone tests (using a Soviet Union era fall cone) on fine-grained soils from the Odessa region).

While there are differences in worldwide codes of practice for liquid limit determination, the plastic limit (w_p) is, to date, still most often determined by the thread-rolling test. Many publications have sought to achieve w_P determination using fall cones, generally by extrapolating fall-cone data (e.g. Feng, 2000) using the assumption of a 100-fold increase in soil undrained shear strength across the plastic range (i.e. from liquid to plastic limit) (e.g. Schofield & Wroth, 1968; Wroth & Wood, 1978). This approach is not reliable, rather it defines a different parameter, the plastic strength limit (Haigh et al., 2013; Sivakumar et al., 2016; O'Kelly et al., 2018). Shimobe & Spagnoli (2019) presented a study comparing the plasticity index and liquid limit deduced using the ‘extended fall-cone method’ (as previously stated, such methods are often based on the inaccurate assumption of a 100-fold strength variation across the plastic range of water contents; c.f. Vardanega & Haigh (2014)) with the conventional Casagrande approaches. Shimobe & Spagnoli (2019) showed that extrapolated w_P values derived using an ‘extended fall cone method’ correlated well with thread-rolling values. Shimobe & Spagnoli (2020) recently made use of the ‘extended fall cone method’ to redraw the Casagrande classification chart.

Haigh et al. (2013) demonstrated that the undrained shear strength at the plastic limit is not a constant, but varies widely, and that the range of undrained strengths could be explained using critical state soil mechanics (Schofield & Wroth, 1968). The aim of this paper is to use the fall-cone flow index to develop a new soil classification chart that can be used to classify fine-grained soils with only fall-cone data.

Sridharan et al. (1999) defined a flow index (denoted here as FI_c to avoid confusion with the flow index F from the Casagrande cup) for fall-cone liquid limit (i.e. w_{L FC}) test data given by equation (3). The same concept was used for Casagrande-cup liquid limit (i.e. w_L) test data by Fang (1960) (and also in the recent work of Spagnoli et al. (2019)).

where d is the fall-cone penetration depth (mm).

Sridharan et al. (1999) showed for 41 soils from India that a high degree of correlation existed between the flow index (as determined using the BSI (1990) 30°, 80 g cone with d = 20 mm at the liquid limit) and plasticity index (I_P = w_{L FC} − w_P) such that

Vardanega & Haigh (2014) assembled a large database of fall-cone tests on 101 fine-grained soils. This database was re-analysed along with the stated FI_c data from Sridharan et al. (1999), fall-cone data digitised from Campbell (1975) and Sampson & Netterberg (1985), Vardanega et al. (2019) and data from the Trinity College Dublin (TCD) soils database (see Table 1) to test equation (4) on a larger dataset. As the original classification system developed by Casagrande (1947) included organic soils (see Fig. 5 from Casagrande (1947)), organic materials have been included in this enlarged database. For each soil entry, the fall-cone liquid limit was determined using the British Standard (BS) fall-cone method (i.e. using the 30°, 80 g cone with the liquid limit taken at d = 20 mm) (BSI (1990) or a predecessor standard) and the thread-rolling w_P result was reported. (BSI (2018a) now permits the use of a 60°, 60 g cone with the liquid limit taken at d = 10 mm.).

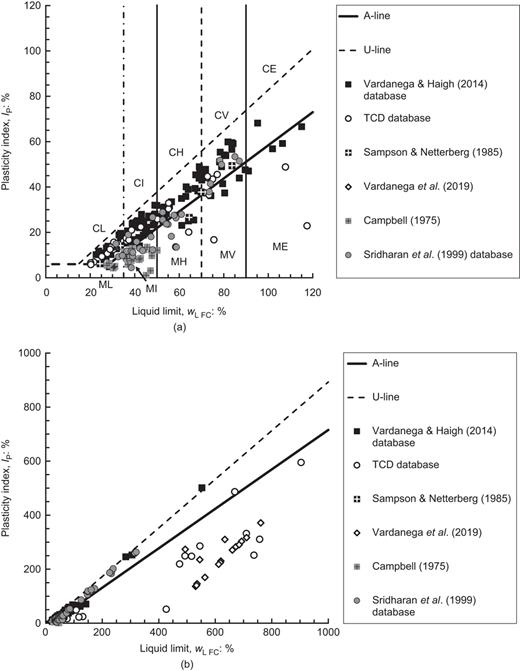

Figure 1 shows the database soils plotted on the standard plasticity chart, revealing that a large range of soil types is present in the database. Some high-loss-on-ignition (LOI) peats are included in the TCD database and in Vardanega et al. (2019), and when combined with the other data sources, a large range of soil plasticity values is present.

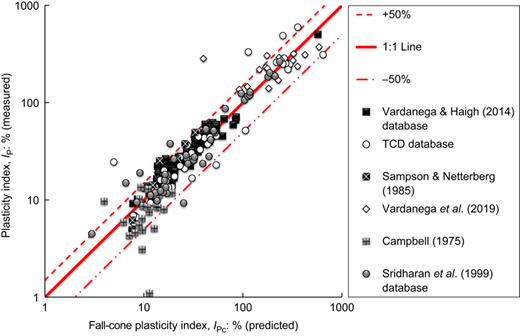

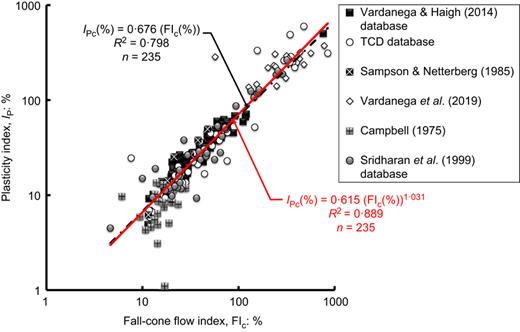

Regression analysis showed that a power-law relationship fitted to the data (Fig. 2) can find a fall-cone plasticity index, denoted in this paper as I_Pc (%), that matches the standard plasticity index, I_P (%), to within about 50% (see Fig. 3) (it is shown later that this apparently high potential error does not prevent adequate classification of the soils in the database; however, equation (5) should not be used to predict the results of the thread-rolling test for w_P determinations)

For comparison with equation (4) from Sridharan et al. (1999), the following linear fit to the Table 1 dataset is reported

Based on its better goodness of fit, equation (5) is used in the subsequent analysis in this paper.

FI_c is the slope of a linear fit to fall-cone data plotted on semi-log axes (equation (3)) and as such its accuracy depends on the range of the distribution of water contents over which fall-cone data are available. Therefore, to ensure a good fit in the plastic range, soils were excluded from the analysis if insufficient fall-cone tests were reported for which cone penetration was less than 20 mm, as noted in Table 1.

Given that the liquid limit for the database is defined using the BS fall-cone method (i.e. w_{L FC}) and its interpretation is not changed in this analysis, it is clear that the soils’ positioning can only shift vertically on the plasticity chart as a result of differences between the predicted cone plasticity index I_Pc (%) and standard plasticity index I_P. To investigate the changes in position relative to the A-line, the following ΔI_P parameter, as defined in Wesley (2003) to indicate height above the A-line on the standard plasticity chart, is used

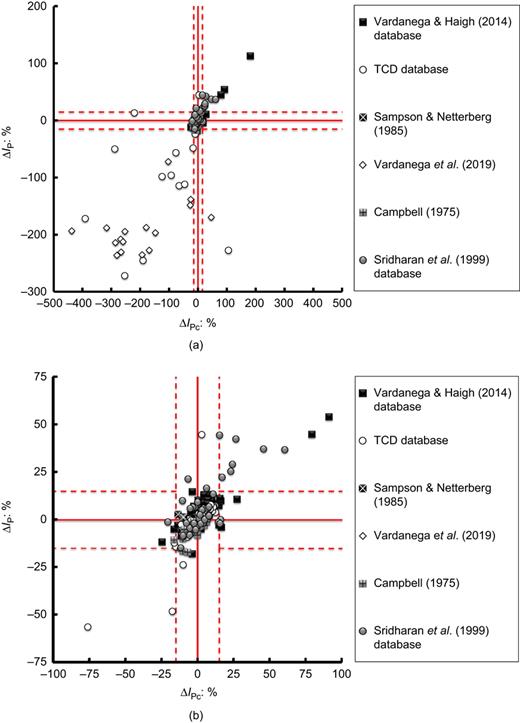

Figure 4 shows ΔI_P (%) plotted against ΔI_Pc (%), the equivalent height above the A-line on the modified chart which is derived using equation (8) (note that the liquid limit used in both ΔI_P and ΔI_Pc calculations (i.e. Equations (7) and (8), respectively) was derived from the fall cone).

From this comparison, although some scatter exists about the trend, the soils which change classification (35/235 soils considered) are mostly ones that originally lay very close to the A-line. Sherwood (1970) reported on the basis of a large multi-laboratory testing programme that the thread-rolling w_P operator error when testing the same soil could be as great as 10–15%, a finding that was confirmed more recently by the results of Sivakumar et al. (2009, 2015). Although this error could be reduced by repeat testing and improved control of the testing process, the database values of plastic limit have not been subjected to this rigour and so must be assumed to have a possible 15% error. Any soil lying within 15% of the A-line in terms of its plasticity index must hence have the possibility of having been misclassified by the standard process. Examination of Fig. 4 shows that only 2/235 soils both change their classification (i.e. clay as opposed to silt) and fall outside the ± 15% bounds shown, indicating that for soil classification purposes equation (5) is an acceptable alternative to the determination of the conventional plasticity index, I_P. The strong correlation between the ΔI_P and ΔI_Pc values would be symptomatic of two systems with broadly similar results.

Before updating the A-line and U-line given by equations (1) and (2), respectively, it must be recalled that they were originally determined using Casagrande's method for liquid limit determination (i.e. the percussion-cup method). As the proposed classification chart is based purely on fall-cone testing, it is appropriate to incorporate correlations linking the Casagrande cup and fall-cone liquid limits for percussion-cup devices with appropriate base hardness (Haigh, 2016); given that Di Matteo et al. (2016) showed that ‘boundary materials’ can be classified rather differently simply by switching from the Casagrande cup method to the fall-cone method for liquid limit determination.

O'Kelly et al. (2018, 2020) produced equation (9) linking the BS fall-cone liquid limit to that obtained for the ASTM percussion cup, considering w_L values of up to 600% (a similar range to that for equation (5)). It should be noted (as expected following the work of Haigh (2012)) that at high values of w_L there is substantial divergence in the liquid limit values obtained using the two methods.

Using equations (5) and (9), the A-line and U-line equations (equations (1) and (2), respectively) can be redefined as equations (10) and (11).

Revised A-line

where w_{L FC} is expressed as a percentage.

Revised U-line

where w_{L FC} is expressed as a percentage.

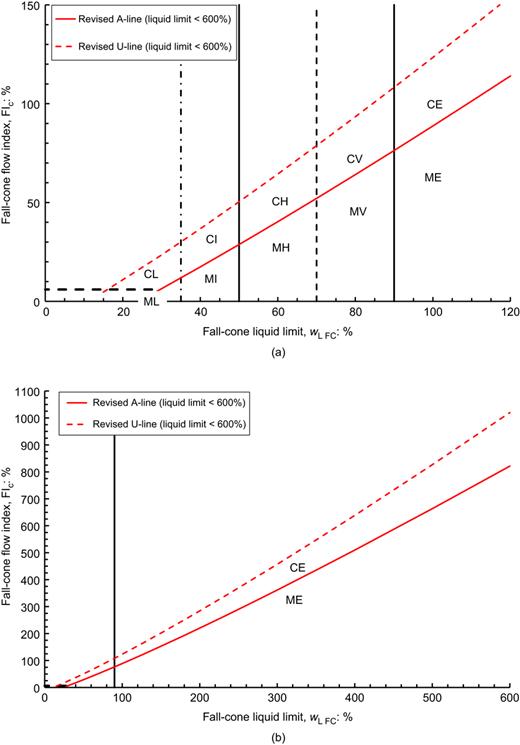

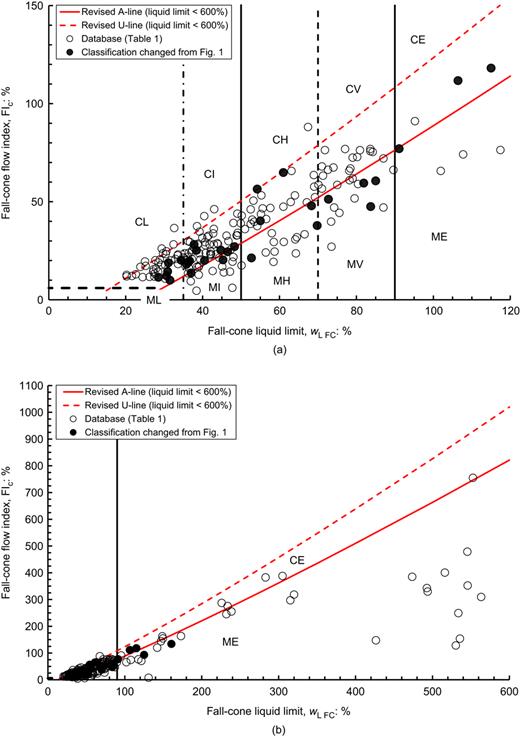

Figure 5 shows a revised soil plasticity chart which makes use of the fall-cone flow index FI_c of Sridharan et al. (1999) (equation (3)) derived from data taken with the 30°, 80 g BS fall cone (BSI, 1990, 2018a). Plotted in this figure are the data from Fig. 1, with those data points that change soil classification category (see BSI, 1999, 2018b) indicated with solid black markers. (Note that the separation of the plasticity levels (e.g. CE, CV, etc.) as defined by BSI (1999) has not been changed, as BSI (1990, 2018a) already prefers the use of the fall-cone liquid limit.) Fig. 6 shows the revised plasticity charts, which are recommended for soil classification purposes without needing to use the conventional plastic limit (thread-rolling) test.

This paper has shown that fine-grained soil classification can be carried out to an acceptable degree of accuracy using only fall-cone data. If fall-cone data alone are used to do this, the operator should undertake such testing as far as practical across the plastic range to produce an accurate flow index (FI_c) magnitude. In this paper, a new plasticity chart has been proposed on the basis of FI_c and fall-cone liquid limit (as determined using the 30°, 80 g cone with the liquid limit taken at d = 20 mm), both of which can be derived from a single fall-cone testing series. As two different soils can have the same fall-cone liquid limit and different computed values of FI_c, these measures are arguably independent despite being obtained using data from the same test apparatus. If the water content indicating transition from the plastic state to the brittle state is needed, then the thread-rolling test must be retained. However, adopting the new chart, the thread-rolling plastic limit is no longer needed for soil classification purposes. This change removes the need for soil classification to rely on a test (thread rolling) that has high operator variability.

This study has not generated new experimental data.

d

cone penetration depth

F

flow index for Casagrande-cup test data

FI_c

flow index for fall-cone test data

I_P

plasticity index based on thread-rolling plastic limit

I_Pc

fall-cone plasticity index inferred from flow index, FI_c

n

number of data points used in developing a regression

R²

coefficient of determination

r

correlation coefficient

w_L

liquid limit

w_{L ASTM}

liquid limit determined using ASTM Casagrande cup

w_{L FC}

liquid limit determined using the 30°, 80 g British Standard fall cone

w_P

plastic limit

ΔI_P

height above A-line on standard plasticity chart using I_P

ΔI_Pc

height above A-line on modified plasticity chart using I_Pc
