Advanced in situ and laboratory characterisation of the ALPACA chalk research site

Recent offshore North and Baltic Sea wind energy-generating projects have demonstrated that current recommendations are insufficiently reliable to guide safe and economical driven pile design in chalk, a very weak to weak biomicrite limestone. Considerable uncertainty exists regarding driving resistances, axial capacities at a range of ages and response to lateral and cyclic loading; Barbosa et al. (2015, 2017), Muir Wood et al. (2015), Carotenuto et al. (2018), Jardine et al. (2018) and Buckley et al. (2020a).

The ALPACA (axial-lateral pile analysis for chalk applying multi-scale field and laboratory testing) and ALPACA Plus joint industry projects (JIPs) described by Jardine et al. (2019) and Buckley et al. (2020b) addressed these shortcomings by conducting multiple large-scale field experiments on piles driven at the St Nicholas-at-Wade (SNW) test site in the UK. This paper describes intensive characterisation research conducted to aid the pile experiments’ interpretation. It also provides new insights for other geotechnical problems involving chalk.

The aims of the study were to

• (a)

  enable analyses of the field experiments by investigating the chalk comprehensively through advanced in situ and laboratory techniques

• (b)

  establish how chalk's structure, pore pressures and mechanical properties vary from ground level to the maximum pile tip depth (20 m)

• (c)

  investigate the influences of applied stress path, pressure and strain levels, principal stress axis orientation and strain rates on the chalk's mechanical behaviour.

Chalk's sedimentary and cementing-in-place processes allow low- to medium-density formations to retain in situ liquidity indices close to unity, even after deep burial (Mortimore, 2012). Variable density profiles are common, as is parallel-to-bedding anisotropy (Hickman, 2004). Hard silica flint bands are also often encountered. Upper Cretaceous syn-sedimentary and subsequent depositional processes related to burial and tectonics, combined with more recent Quaternary periglacial action and weathering, led to fractured rock showing multiple types of discontinuities at a range of scales. The Ciria (Lord et al., 2002) classification scheme therefore considers, in addition to intact dry density (IDD), differences between natural and induced fractures and deterioration within chalk blocks, and structure.

Locally instrumented triaxial tests involving routine confining pressures indicate stiff and near-elastic initial behaviour in single unfractured elements, with yielding at axial strains < 0·15%, followed by brittle failure, dilation and fracturing (Jardine et al., 1984, 1985). Stiffness may be significantly anisotropic (Talesnick et al., 2001; Korsnes et al., 2008). Natural micro- to macro-fissuring reduces mass stiffness in situ, particularly in high-density chalks (Matthews & Clayton, 1993; Clayton et al., 1994, 2002; Holloway-Strong et al., 2007). High-pressure compression tests reveal ‘pore collapse’ (Collin et al., 2002) when the chalk ‘destructures’ (Leroueil & Vaughan, 1990) as bonds break and both hollow calm carbonate (CaCO₃) particles and macro-void spaces collapse (Petley et al., 1993). The chalk's post-yield behaviour is also time and strain rate dependent (Addis & Jones, 1990; Leddra et al., 1993; Bialowas, 2017). De Gennaro et al. (2004) and Ma et al. (2019) discuss fundamental aspects of how chalk properties vary with physiochemical changes within its pore space.

Destructured reconstituted chalk has been studied by Clayton (1977), Razoaki (2000), Bundy (2013), Alvarez-Borges (2019) and Bialowas (2017). Dynamic percussion, cone penetration test (CPT) penetration and pile driving in high-porosity chalks produce putties, whose shear strengths are compatible with their liquidity indices, but which gain strength and stiffness when allowed to reconsolidate, creep and age (Doughty et al., 2018). Shear strengths < 20 kPa have been noted in thin annuli formed around piles shortly after driving (Hobbs & Atkinson, 1993; Lord et al., 2002; Buckley et al., 2018). Cyclic CPT probing can reduce friction sleeve resistances to ≈ 4 kPa (Diambra et al., 2014). High-amplitude, displacement-controlled simple shear cycling produces comparably weak putties (Carrington et al., 2011).

The above studies helped define the ALPACA characterisation agenda. Earlier investigations at SNW concentrated on sampling trials, piezocone testing (CPT with pore pressure measurement (CPTu)) and geophysics, with relatively sparse laboratory testing (Buckley et al., 2018). The ALPACA field work included, as identified in Fig. 1, multiple new soundings, pressuremeter profiling, three boreholes and a large sampling excavation after pile testing. The comprehensive laboratory programme included index and oedometer profiling and over 100 advanced tests with locally instrumented, automated, stress path triaxial equipment. This paper summarises the central findings. Additional high-pressure (up to 13 MPa) laboratory tests are reported separately by the ALPACA Academic Working Group (ALPACA AWG, 2022), while Ahmadi-Naghadeh et al. (2022) explore the intact chalk's cyclic loading response and Liu et al. (2022) consider the monotonic and cyclic behaviour of puttified chalk reconsolidated to stresses comparable to those acting around the pile shafts.

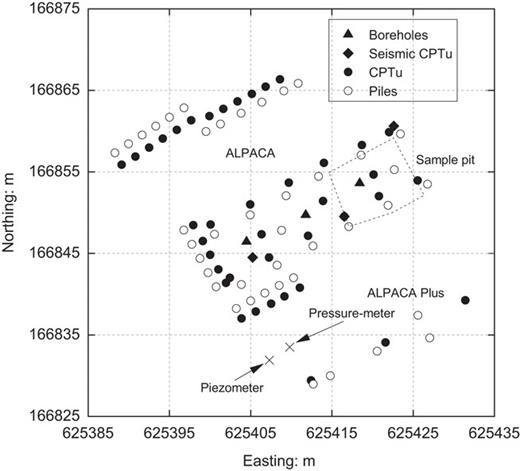

The site occupies a former quarry at UK grid: TR 25419 66879, near Margate in Kent. Up to 5 m of excavation took place before sampling and geophysical trials with compression (P) and shear (S) wave (PS) logging, cross-hole and down-hole seismic testing by SETech (2007). Investigations for the ‘Wind-support’ and ‘Innovate UK’ pile test programmes (Ciavaglia et al., 2017a, 2017b; Buckley et al., 2018, respectively) concentrated on CPTu and seismic CPT (SCPT) profiling.

The ALPACA investigations located the water table ≈ 0·9 m above ordnance datum (AOD), with ± 0·25 m variations and found < 0·5 ppt sodium chloride (NaCl) in the groundwater. A tensiometer installed at 3 m depth indicated seasonally varying suctions around 30 kPa. CPTu or SCPT soundings were made for each of the 41 test piles shown in Fig. 1. Cone pressure-meter testing was conducted and samples from three 16 m deep, Geobore-S wireline rotary boreholes were cleaned, partitioned, sealed and preserved immediately on-site. Eighteen 350 × 350 × 250 mm blocks were sampled from a 7 m × 10 m, 4 m deep, excavation. Careful hand sampling mobilised, wherever possible, pre-existing fissures and (mainly horizontal) bedding planes to minimise disturbance; all visibly fractured material was avoided. Hand and chainsaws were used to disconnect blocks which were preserved immediately in successive layers of foil, cling-film and wax. Expanding polyurethane foam secured the blocks in plywood storage boxes.

Vinck (2021) details the chalk's stratigraphy and structure, noting pure (98·6% calm carbonate (Hancock, 1975)) white Margate Chalk, showing slight weathering near ground level, occasional small flints and very few macrofossils, extending down to the yellow iron-stained Barrois’ Sponge Bed at 5·2 m AOD, which marks the unit's base and contains echinoid Micraster fossils. Below this is horizontally bedded Seaford Chalk, with regular discontinuous nodular flint bands, including ‘Whitaker's three-inch’ flint marker at −7·5 m AOD.

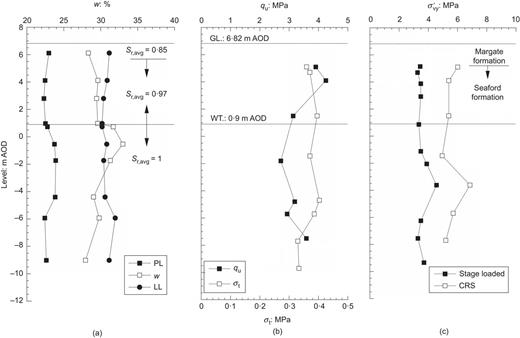

The chalk classifies as Ciria Grade B3/B2 (structured, very weak to weak, low to medium density) over the depths of interest, with discontinuity apertures < 3 mm and fractures spaced at 60 to 600 mm. The fractures become tighter from −2·7 m AOD as the Grade improves to A2. Predominantly vertical linear features and micro-fissures were identified at all depths with ≈ 10 to 25 mm spacings as described by Lawrence et al. (2018). The excavation pit revealed that pile driving, lateral testing and excavating opened discontinuities and reduced the upper chalk to Grade C.

Chalk particle size analyses are affected by particle fracture and testing methodology (Clayton et al., 2002). However, both manually ground-down dried SNW chalk, and putty formed by compaction at natural water content present as fine silts with D₅₀ around 3–4 μm in hydrometer and laser diffraction analyses. The index properties summarised in Fig. 2 and Table 1 indicate low-density chalk (Mortimore, 2012), with 1·43 to 1·53 Mg/m³ intact dry densities and a 0·91 average liquidity index. The degree of saturation S_r increases from ≈ 0·85 near the ground surface to ≈ 0·97 just above the water table and ≈ 1·00 below.

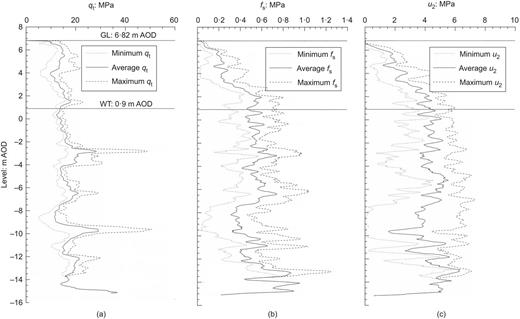

Figure 3 presents typical CPTu and SCPT profiles. Corrected (q_t) resistances range from around 5 to 35 MPa, with higher resistances in thin, discrete, often discontinuous flint bands. Destructuration starts beneath the tips and excess pore pressures as high as 10 MPa were measured at u₁ (face) piezocone positions (Buckley, 2018), while lower, but still remarkably high, pressures develop at u₂ (shoulder) locations. Friction sleeve resistances of 0·05 to 1 MPa persist as the chalk flows past. Forty-eight CPTu dissipation tests showed 50% equalisation times, t₅₀, <10 s in most cases, indicating 7 × 10⁴ m²/year (±35%) radial coefficients of consolidation, c_h,piezo when the chalk's high rigidity index is recognised. Vinck (2021) estimates 5 × 10⁻⁹ to 7 × 10⁻⁸ m/s permeabilities (depending on bulk stiffness estimates) from these inevitably ‘disturbed’ in situ experiments, while laboratory tests on southern Seaford chalk show mid-range k_v ≈ 2 × 10⁻⁸ m/s (Marley, 2020). The chalk's open fractures do not constrain the disturbed CPTu or ‘small volume’ laboratory measurements but lead to higher undisturbed mass permeability in situ. Simplified consolidation analyses indicate that CPT penetration may be partially drained at SNW (Buckley et al., 2018).

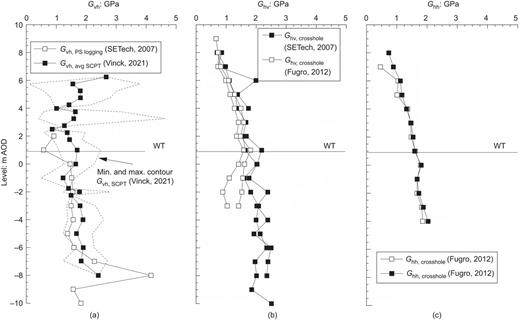

In situ shear wave velocities measured at SNW generally fall below the 1·0 km/s < V_s < 1·8 km/s range of Røgen et al. (2005) for low- to medium-density North Sea chalk. Fig. 4 illustrates shear moduli from cross-hole and PS logging (SETech, 2007; Fugro, 2012), along with ALPACA project SCPTs.

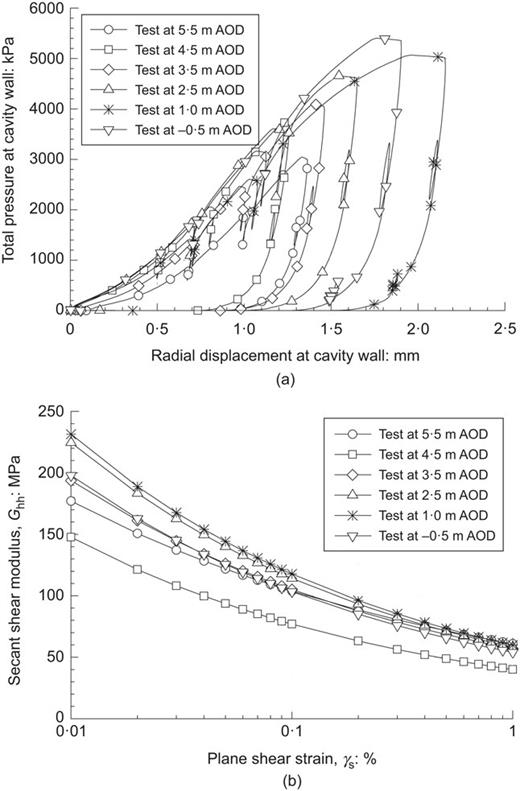

Pressure-meter testing has been employed to aid offshore wind turbine foundation design in chalk (Whittle et al., 2017). Cambridge Insitu Ltd undertook and interpreted testing with a 47 mm dia., 0·5 m long cone push-in pressure-meter inserted into cavities formed by CPT probing. Initial inflations to around 2 mm radial displacement took place over 15 to 20 min, including two unload–reload loops. Further loops were imposed during deflation, as shown in Fig. 5. Test analysis poses multiple challenges as consistent interpretation methodologies have yet to be developed specifically for chalks (Whittle et al., 2017). Homogeneous, continuously non-linear, elastic shear stiffnesses were assumed, after Bolton & Whittle (1999), which varied in proportion to p′ raised to an exponent n, while Poisson's ratio υ′ = 0·2. Iterative hindcasts applying Withers et al. (1989) drained plane-strain analysis, assuming non-associated Mohr–Coulomb yielding and c′ = 0 indicated best-fitting ϕ′ values of 31° ± 5°, dilation angles ψ of 0° to −12°, suggesting volumetric contraction. Exponent n increased with depth from 0·4 to 0·63 and Fig. 5 shows the non-linear (implicitly G_hh mode) shear moduli scaled to in situ p′ for each depth. It is difficult to resolve very-small-strain stiffnesses from pressure-meter tests and the curves plotted in Fig. 5 start from the γ_min = 0·01% limit at which reliable measurements could be made, which appears to exceed any linear range. The maximum G_hh values grow from 148 MPa to 231 MPa with depth and represent ≈ 20% of the elastic geophysical G_hh trends in Fig. 4. The curves reflect the non-linear properties of partially destructured chalk, which plays a role in defining the behaviour of open-steel piles driven in chalk (Lord et al., 2002).

Laboratory mechanical test specimens require very careful preparation in chalk (Jardine et al., 1984, 1985). Trials revealed a need for plaster-of-Paris confining moulds and water-flush coring with a highly stable radial-arm drill. The resulting cores were enclosed in split aluminium moulds and machined to achieve ASTM (2019) end flatness and parallelism tolerances.

The UCS tests on 38 mm dia., 76 mm high, jacketed specimens and BT tests on 38–50 mm dia., 19 mm thick specimens gave the profiles included in Fig. 2. The UCS and BT tests advanced at 0·05 mm/min and reached failure within ≈ 5 to 10 min of loading. The shallower samples developed higher UCS strengths (up to 4·3 MPa) and greater scatter, reflecting their partial saturation and suctions, the impact of which has been noted previously by De Gennaro et al. (2004) and Taibi et al. (2009) for chalk and Ciantia et al. (2015) for calcarenite. The tension BT strengths were ≈ 1/10th of the UCS values.

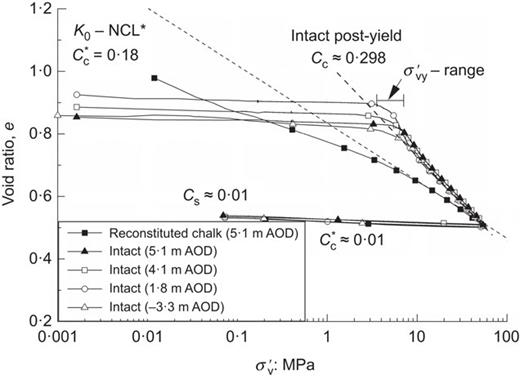

Stage-loaded and constant-rate-of-strain (CRS) oedometer tests exhibited very stiff, quasi-elastic, initial one-dimensional (1D) behaviour, with minimal volumetric straining before yielding at the 3·3 < σ′_vy < 6·9 MPa points shown in Fig. 6, which are interpreted as reflecting in situ cementing and post-depositional geological disturbance, rather than the chalk's ≈ 850 m expected maximum burial depth (Mortimore, 2012).

The stage-loaded tests gave post-yield secondary compression (creep) indices C_αe = Δe/Δlog (t) of 0·016 to 0·018, indicating 0·043 to 0·048 C_αe/C_c ratios that exceed Mesri & Vardhanabhuti's (2006) range for inorganic soils. Addis & Jones (1990) and Katsaros & Stone (2018) also note marked post-yield creep straining and strain rate dependency in chalk. The CRS tests, run at 0·6%/h, gave notably higher σ′_vy values than stage-loaded tests, which slowed to ≈ 0·02%/h after 24 h, suggesting strain rate dependency, as with natural clays (Nash et al., 1992). An ‘isotach’ CRS test which switched between the standard rate and velocities ten times slower and then ten times faster, confirmed a 12% increase in vertical effective stress per ten-fold (post-yield) change in strain rate.

The SNW chalk's high average liquidity index (0·91) leads to its in situ e–σ′_v plotting well above the state limits that can be sustained by reconstituted specimens, as shown in Fig. 6 by the K₀ normal compression line (NCL*) of dried and ground chalk that was reconstituted by mixing to slurry at 1·4 times the liquid limit (LL). The intact post-yield compression curves trend towards the K₀-NCL* at 30 < σ′_v < 50 MPa, as noted with calcarenites (Cuccovillo & Coop, 1999) but without converging, as expected for clays by Burland (1990). The swelling curves confirm that the intact chalk's microstructure breaks down under high-pressure consolidation.

The SNW chalk's open vertical fissures indicate low K₀, despite its high prior burial depth. K₀ cannot be measured reliably in chalk, so in situ stresses were assessed for testing assuming K₀ = 0·6 (after Lord et al.  (2002)) and accounting for measured field suctions, leading to 30 < p′₀ < 160 kPa over the testing depth range. Matching sets of specimens were tested after re-consolidation to both p′₀ and p′₀ + 300 kPa. The latter tests, which approached the cells’ pressure limit for the deepest samples, indicated how the stress increases expected around the test piles might affect field behaviour.

Five series of locally instrumented triaxial tests detailed in Table 2 investigated the stiffness and shear strength of the intact, saturated SNW chalk, providing additional information to the UCS tests on jacketed samples equipped with local axial strain sensors.

Series A. Undrained compression CIU (i.e. isotropically consolidated undrained triaxial compression) tests with pore pressure measurement on 38 mm dia., 76 mm high specimens consolidated isotropically to in situ p′₀.

Series B. As series A, but with drained compression CID (i.e. isotropically consolidated drained triaxial compression) testing to failure.

Series C. CID and CIU tests on 38 mm samples consolidated to in situ p′₀ plus 300 kPa.

Series D. As series B, with 100 mm dia., 200 mm high specimens.

Series E. Non-destructive small-strain probing on 100 mm dia. specimens consolidated to a wide range of stress conditions, with dual-axis bender element testing.

Hydraulic stress-path cells rated to 4 MPa deviatoric stresses (q) and 750 kPa cell and back-pressures were employed, with the local strain sensors that are essential to reliable stiffness determination (Jardine et al., 1984; Tatsuoka et al., 1999). ‘Floating’ pairs of linear variable differential transformers (LVDTs) and a ‘floating’ radial belt LVDT were deployed for 38 mm tests. The 100 mm dia. tests deployed three ‘floating’ vertical LVDTs and a three-point radial sensing system; vertical and horizontal bender elements also enabled non-destructive G_vh, G_hv and G_hh measurements. Liu (2018) summarises the equipment's capabilities, sensitivities, resolutions and nominal precisions, noting that the 100 mm systems offer better resolution, finer stress control. Their larger sample volumes also accommodate the chalk's structure more representatively. Neither system could apply the high cell pressures required to bring the chalk to failure in triaxial extension.

Specimens inevitably dried slightly during preparation, showing 70 to 80 kPa suctions on set-up that exceeded in situ p′ at most levels; saturation was achieved by applying back-pressures (350 kPa or greater) until B > 0·95. Samples were swelled or compressed isotropically at 60 kPa/h to target p′₀ values, which were maintained until volumetric creep rates reduced below 0·005% per day, requiring ≈ 24 and 48 h for the 38 mm and 100 mm specimens, respectively. The average primary and secondary (creep) axial strains developed by consolidating isotropically to 300 kPa above p′₀ in series C were 0·11% and 0·012%, respectively; the corresponding average radial strains were slightly greater at 0·13% and 0·031%. Creep straining is more pronounced under compression to higher pressures (ALPACA AWG, 2022). Monotonic shearing followed at 5% axial strain/day. System compliance and sample imperfections led to markedly lower local strain rates until peak deviator stresses were reached, on average, after 2·5 h of loading, although shearing continued for several days to capture post-peak trends.

Investigations were undertaken to establish the degree to which micro-fissures and other features might cause variations between tests on nominally identical samples. Repeat CIU tests on 38 mm dia. specimens cut from the same blocks indicated ± 10% lateral variations in s_u and greater variations in stiffness. Dispersion also arose due to minor vertical variations, with 100 mm dia. specimens showing less scatter than smaller samples. Drained tests gave more stable outcomes; check CID tests indicated only ± 2% q_f variations between tests run at 0·5, 5, 50 and 500% per day, suggesting a minor influence of rate on strength, as with sands. However, non-linear stiffness was more markedly affected (Vinck, 2021).

Constant volume DSS tests were run (with Fugro GB Marine Ltd) at 5% shear strain/h employing 67 mm dia., 30 mm high samples and GDS Instruments ‘stacked-ring’ apparatus: see Table 3.

Shearing behaviour is illustrated first by considering exemplar tests on saturated specimens sampled at −1·45 m (±0·25 m) AOD; later profiles summarise the key outcomes from all tests.

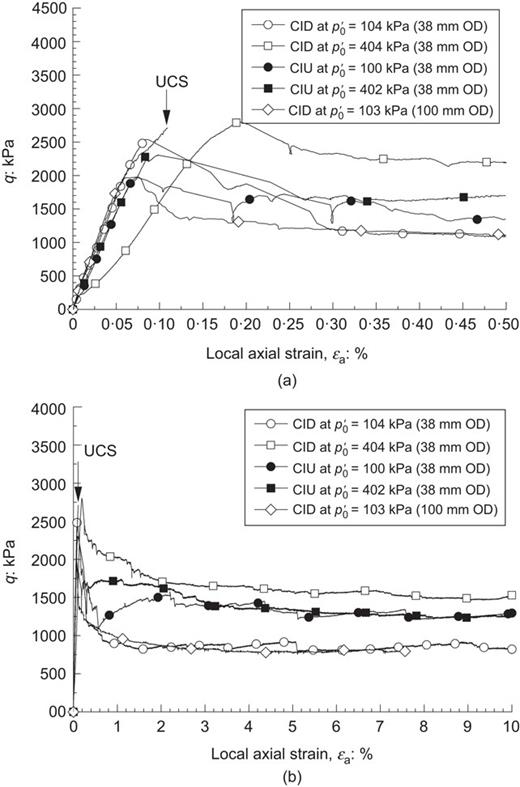

The stress–strain curves in Fig. 7 illustrate the general trend for UCS tests to manifest the most extended initial linear ranges and highest peak strengths among samples sheared from in situ p′₀. The slower triaxial tests showed non-linearity (or Y₁ yielding (Jardine, 1992)) from smaller strains (ε_a > 0·002%) and modest stiffness non-linearity, until brittle failure (or Y₃ yielding) commenced at 0·05% < ε_a < 0·2% as the chalk lost bond strength and fractured. Intermediate Y₂ yield points, identified in sands and clays by Kuwano & Jardine (2007), Gasparre et al. (2007) and others were not identified. The higher pressure CID test showed an anomalously soft concave upwards stress–strain curve over the intermediate strain range and required a larger than typical strain to reach failure. This feature is interpreted as reflecting randomly occurring relatively open micro-fissures (Kohata et al. (1997) or Tatsuoka et al. (1999)). Vinck (2021) encountered several similarly anomalous results in his 49 monotonic triaxial tests.

The 38 mm samples generally indicated drained pre-failure Poisson's ratios (υ′_vh) between 0·2 and 0·3. However, the 100 mm dia. specimens’ three higher resolution radial sensors showed disparate trends around the specimens’ circumferences. This discontinuous response is interpreted as resulting from the low normal joint stiffnesses of partially open micro-fissures. More ‘continuous’ radial deformations and stiffer radial responses developed in most of the p′₀ + 300 kPa experiments; higher pressure consolidation closes the micro-fissures more tightly and so increases normal stiffnesses.

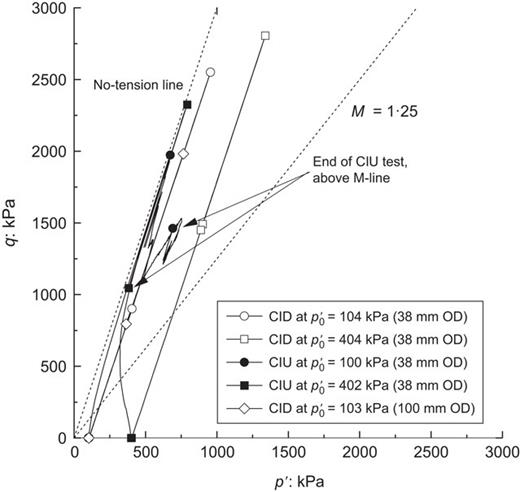

The triaxial effective stress paths presented in Fig. 8 show peak q/p′ ratios close to 3, the maximum that can be applied without the minor principal effective stress going into tension. Nevertheless, specimens sheared from in situ stresses developed vertical cracks and shear discontinuities as they failed, which often propagated upwards from the sample bases.

The CID triaxial tests showed marked ‘dilation’ as the specimens cracked and bifurcated. Such apparent ‘dilatancy’ is common in compression with rocks containing micro-fissures (Cerfontaine & Collin, 2018). Similar patterns were reflected in CIU tests, which showed strong pore pressure reductions as the samples failed and fractures tried to open.

The CIU tests’ pre-failure effective stress paths also approached the no-tension limit, following paths with initial gradients dp′/dq between 0·16 and 0·20, which curved to the right as the tests progressed towards gradients close to the applied total stress dp/dq = 1/3 ratio. The initial shear-induced pore pressure ratios A = du/dq (Skempton, 1954) fall around half the 1/3 ratio (equivalent to dp′/dq = 0) expected for an isotropic elastic soil undergoing undrained compression. Cross-anisotropic elastic theory predicts A < 1/3 when horizontal stiffness is less than vertical, with E′_h/E′_v < 1 (Lings et al. (2000) or Kuwano & Jardine (2002)). Stiffness anisotropy is interpreted as the main reason for the low initial A values, as explored in later sections. The overall pore pressure changes tended to become closer to zero as the tests progressed and behaviour became progressively less elastic. CIU tests conducted after consolidation to p′₀ + 300 kPa gave more vertical q–p′ paths and A values compatible with E′_h ≈ E′_v, before showing pore pressure changes close to zero at failure.

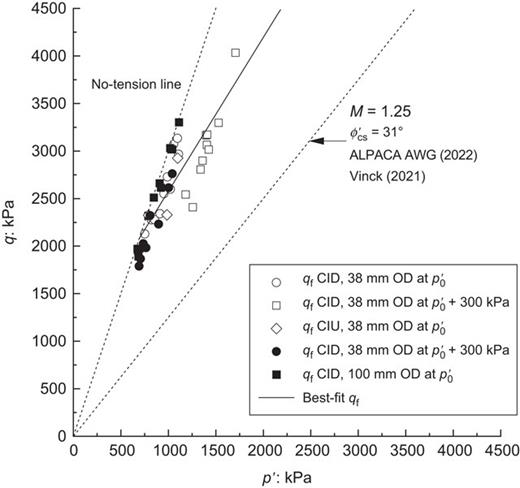

The peak effective stress failure points from all triaxial tests are presented in Fig. 9. Interparticle bonding provides much of the specimens’ peak resistance and the regressed q–p′ peak failure line approximates a portion of the curved envelope implicit in critical state-based models of cemented calcareous media (Lagioia & Nova, 1995). Other criteria may be applied, including Hoek and Brown's expression. A regressed Mohr–Coulomb treatment gives c′ = 0·49 MPa, ϕ′_peak = 39·6°. ALPACA AWG (2022) show how consolidation to higher pressures damages the bonding, promotes a more ductile and ‘frictional’ shearing response with a curved yield envelope with M = 1·25 or ϕ′_cs ≈ 31° at critical state and implies pressure-dependent c′ and ϕ′_peak for dry of critical conditions. The v–p′ states given by equation (1) held at critical states, where v = 1 + e and p′_ref corresponds to 1 kPa in the units adopted

The non-uniform bifurcation mechanisms that apply post-peak cannot be interpreted as single-element tests represented by ‘continuum-mechanics’ q/p′ measures. However, Coulomb analyses of failure planes can identify ‘post-rupture’ strengths (Burland, 1990). Resolving shear and normal forces acting on planes measured at 60–65° to the horizontal after testing indicates post-rupture ϕ′ = 35° ± 5° if c′ = 0, although other combinations with lower ϕ′ and higher c′ can be drawn through the scattered post-rupture trends.

Simple shear (DSS) testing is difficult with chalk, as local slippage or putty formation may occur near the platens. Alternative fixing arrangements were trialled before the six successful reported tests were completed. The DSS boundary conditions limit the scope for large displacements to develop on bifurcations. They also impose large principal stress axis rotations, which can lead to lower strengths in anisotropic soils. Hollow cylinder apparatus (HCA) tests show that the minor principal stresses may tend towards tensile values in simple shear tests conducted on bonded geomaterials from relatively initial mean stresses (Brosse et al., 2017).

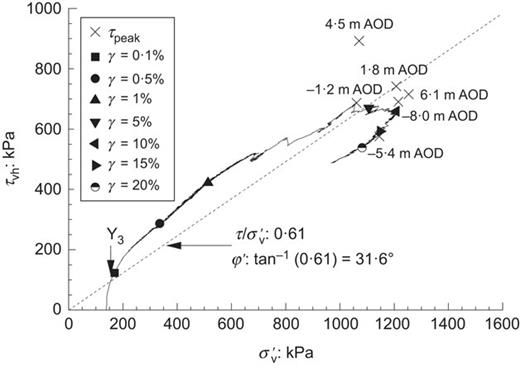

Figure 10 presents the (τ, σ′_v) DSS ‘effective stress path’ followed by a chalk sample from a similar (−1·2 m AOD) level to the exemplar triaxial tests. The points at which shear strains (from 0·1 to 20%) were attained are indicated, as are failure points from the five other tests. All showed clockwise stress-path rotations (indicating Y₃ yielding) after relatively short, near-vertical, initial sections. Relatively soft non-linear ‘dilative’ paths followed until failure after large strains, with 5% < γ_f < 12%. However, the peak s_u values (taken as peak τ_vh) were, on average ≈ 45% lower than in the CIU tests. Applying conventional Coulomb analysis, the average ultimate τ/σ′_v ≈ 0·61 ratio indicates ϕ′ ≈ 31° if c′  =  0 kPa, comparable to the pressure meter and triaxial critical-state strengths. Tension cracks were evident on dismantling that contributed to the low resistances.

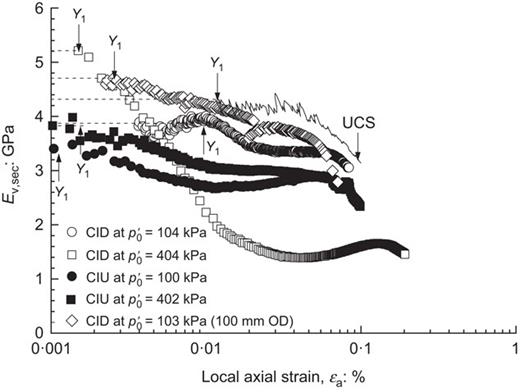

Figure 11 presents the exemplar triaxial and (locally instrumented) UCS tests’ drained (CID) E′_v and undrained (CIU and UCS) E^u_v vertical stiffness–strain trends. Linear regressions established pre-Y₁ (drained or undrained) linear initial moduli followed by non-linear secant variations up to peak q. As noted earlier, the CID test's lower stiffness was untypical and is interpreted as being attributable to its micro-fissures being unusually open and compliant. The larger 100 mm specimens show the most systematic decays in stiffness after undergoing Y₁ yielding, while the smaller samples’ CID and CIU curves showed more variable behaviour. Even large increases in consolidation pressures have only a modest effect on vertical stiffness (ALPACA AWG, 2022).

It is interesting that the CIU E^u_v traces fall well below the CID E′_v curves. With isotropic elastic media E^u/E′ = 3/(2(1 + υ′)) and so exceeds unity if υ′ is less than 0·5. However, E′_v can exceed E^u_v in cross-anisotropic soils if, as argued earlier, E′_h < E′_v and plausible cross-anisotropic Poisson's ratios apply.

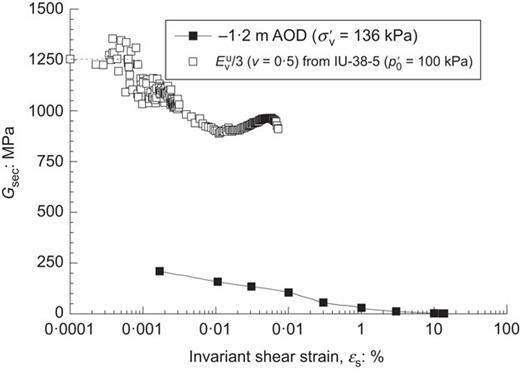

The typical DSS test from −1·2 m AOD shown in Fig. 12 indicated equivalent secant shear stiffness G_sec falling steeply with invariant shear strain ε_s ( = γ/√3) from an initial maximum of 210 MPa at ≈ 0·002%. The DSS tests were unable to resolve any initial linear range and the triaxial CIU tests’ octahedral shear stiffnesses, calculated as G_txl = E^u_v/3 with ε_s = ε_a, far exceed the reported DSS maximum moduli at all depths considered. The discrepancy may reflect non-uniform strains developing near platens, as well as the DSS tests’ early yielding identified in Fig. 10.

Profile plots summarise how mechanical properties vary with depth, test stress path and pressure level.

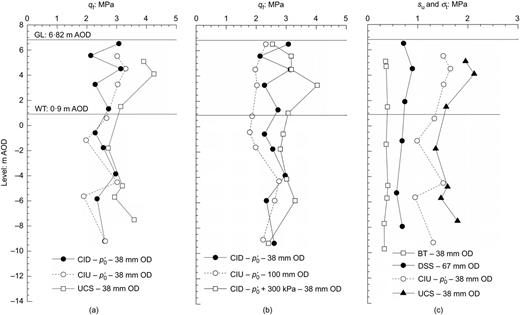

The peak deviator stress q_f and s_u trends are presented in Fig. 13, showing that the (jacketed) UCS tests q_f values exceed those of the fully saturated triaxial tests by, on average, ≈ 22%. The higher UCS strengths reflect their specimens’ generally higher effective stresses (with suctions of 70 to 80 kPa on set-up that generally exceeded the triaxial tests’ imposed in situ p′₀ values), incomplete saturation (especially above the water table) and potentially their ≈ 24 times faster strain rates to failure. The UCS strengths also appear ≈ 45% higher than expected from Matthews & Clayton's (1993) correlation with IDD, emphasising the value of site-specific testing.

Considering next the effects of drainage, the saturated 38 mm peak triaxial q_f trends covering in situ p′₀ conditions, the undrained CIU tests (with s_u = q_f/2) give only slightly higher q_f values than drained CID tests in the (shallow) Margate Chalk, and vice versa in the deeper Seaford. As noted earlier, little overall undrained pore pressure generation occurred prior to failure.

The checks on CID sample size effects indicated generally lower q_f and less scattered values for 100 mm than 38 mm dia. specimens, as is often the case for soils possessing pronounced meso-structure, although the trends converged better at depth, reflecting fissures becoming tighter and more widely spaced.

A further feature examined in Fig. 13 is the impact of the 300 kPa consolidation pressure increases applied in series B and C. The ‘elevated’ q_f–depth trend plots ≈ 25% above the ‘in situ’ series at shallow depth and ≈ 15% above it at greater depth, reflecting the reducing intensity of discontinuities with depth. Consolidation to higher stresses causes gains in ‘frictional’ strength along with damage to bonding (ALPACA AWG, 2022). Finally, the DSS s_u trends (taken as peak τ_vh) data plot consistently (by ≈ 45%) below the CIU triaxial test outcomes.

CPTu penetration tests are often employed to gauge in situ s_u values for fine-grained soils through empirical N_kt cone factors, assuming correlation of q_t = N_kt × s_u + σ_v0. The profiles shown in Figs 2 and 13 indicate N_kt values of 12 ± 3 and 21 ± 4 with respect to CIU and DSS s_u, respectively.

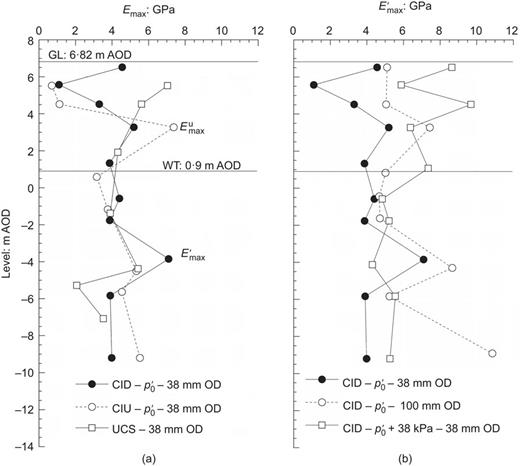

Equivalent profiles of initial vertical Young's moduli plotted in Fig. 14 identify how drainage condition, sample size, elevated pressures and shearing conditions affect stiffness. The locally instrumented triaxial and UCS moduli are broadly comparable, although the latter show more scatter and longer linear ranges. The unusual hierarchy between drained and undrained moduli is confirmed, with E′_v,max exceeding E^u_v,max in most cases. Elevating the initial mean effective stress by 300 kPa raised E′_v,max by ≈ 55% over the first 6 m, but had less impact at greater depth. This gain, which exceeds that noted for shear strength, is interpreted reflecting the closure of micro- and meso-fissures, which are more prominent and have wider apertures at shallow depth. It is also clear that the 100 mm dia. triaxial samples’ E′_v,max exceed those from the smaller specimens, by an average of ≈ 45% (excluding one outlier), which may reflect the larger equipment's better stress/strain uniformity and higher resolution measurements.

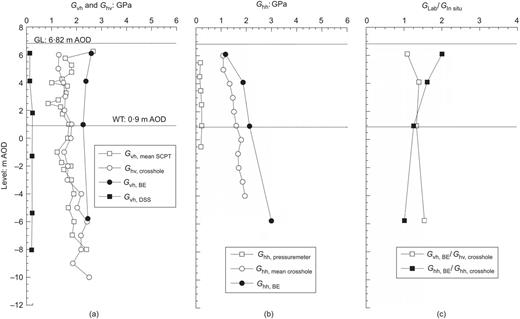

Figure 15 considers the shear stiffnesses defined at the smallest strains offered by various field and laboratory techniques. Such profiles may vary due to specimen disturbance, anisotropy, meso-structure and differing strain rates, as well as variable stress and strain levels, test volumes and instrument resolutions. Comparing laboratory bender element shear wave velocities with identically oriented in situ values allows the combined effects of sampling disturbance and meso-fabric to be assessed. While profiles vary across the site, the mean seismic CPT G_vh and cross-hole G_hv trends fall well below the near-ground-surface triaxial bender element (BE) G_vh measurements, before converging with increasing depth. This trend is interpreted as reflecting the impact of any open fissures, which are systematically avoided when preparing laboratory specimens, occurring less frequently at depth. The DSS G_vh maxima fall far below those interpreted from either laboratory or field shear wave velocities, confirming the tests’ inability to resolve elastic moduli.

Figure 15 also contrasts the cross-hole, BE G_hh and pressure-meter G_hh (measured at 0·01% shear strain) trends. The BE tests show higher stiffnesses than the seismic field measurements, with laboratory-to-field ratios of 1·1 to 1·5, confirming the systematic impact of meso-structure. As with the DSS tests, the pressure-meter data fall far below the geophysical measurements and reflect the larger-strain behaviour of more disturbed material.

The CIU tests’ effective stress path inclinations and the systematic trend for initial E′_v to exceed E^u_v indicated that the chalk's vertical moduli exceed equivalent horizontal stiffnesses under in situ stress conditions. Series E explored anisotropy more precisely through high-resolution BE and monotonic stress probing experiments. Fig. 16 presents first the field and laboratory tests’ G_hh/G_vh profiles. The triaxial BE measurements (made on the same samples) gave G_hh/G_vh ≈ 0·5 in the shallow layers and tended to ratios exceeding unity at depth. The equivalent field seismic data show a similar, but more muted, trend.

The series E tests applied small-strain axial and radial drained probes to assess any elastic, fully recoverable behaviour with the chalk's Y₁ kinematic yield surfaces. The vertical stiffnesses are found easily from the high-resolution axial stress and strain measurements. Assessment of horizontal stiffnesses is less direct. Kuwano & Jardine (2002) give alternative routes for deriving full sets of cross-anisotropic compliance parameters from combined radial probing tests, which define the parameter R in equation (2) below and BE G_hh measurements. However, even small radial increments applied from in situ stresses led to responses that were hysteretic and non-uniform around the samples’ perimeters, reflecting the presence of imperfectly closed, mainly vertical, micro-fissures. Treating the chalk as an elastic continuum led to implausible cross-anisotropic υ′_hv ratios in some cases, because the samples’ radial behaviour was neither continuous nor fully recoverable, even at very small strains. Vinck (2021) shows that equation (3) provides robust assessments of horizontal stiffness E′_h,max as it contains no Poisson ratio terms.

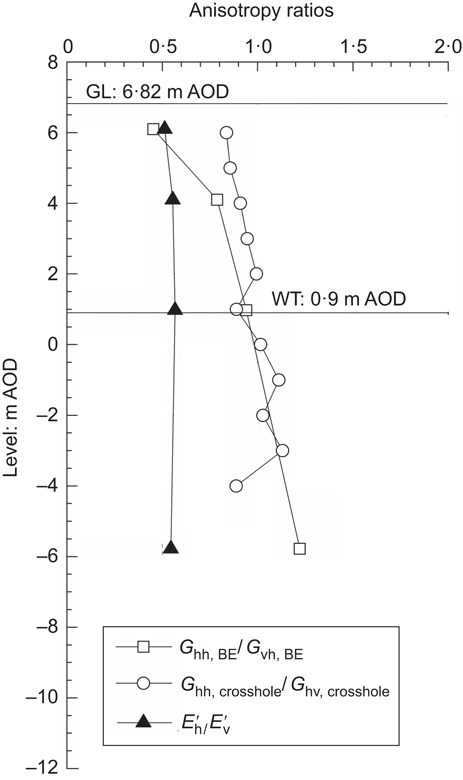

The E′_h/E′_v profile developed from four suites of probing tests in Fig. 15 confirms that horizontal loading from in situ stresses provokes a far softer response than vertical compression, which is important when analysing lateral pile loading. Vinck (2021) shows that anisotropy diminishes after consolidation to higher pressures.

The characterisation research identifies aspects of behaviour that require attention when attempting to model practical problems in chalk. Pedone et al. (2020) describe how these aspects were addressed in advanced 3D finite-element modelling of the ALPACA lateral pile load tests, showing how the SNW characterisation research was applied to capture full-scale field behaviour.

The selection of parameters and constitutive models for reliable and representative predictions of field shear strengths depends on the boundary conditions, pressures and scales of the problem considered. The most important aspects to recognise at ‘routine’ mean stresses are: (a) chalk's propensity to tensile fracture when sheared; (b) the fragile nature of its compressive shear strength; and (c) its rapid degradation from peak to post-rupture strengths. It is equally vital to recognise that ductile behaviour and stable critical state resistances apply after consolidation to p′₀ > 2 MPa (ALPACA AWG, 2022). Strain softening and destructuration in both laboratory DSS and full-displacement field pressure-meter tests indicate ‘operational’ shear strengths far below the triaxial or UCS peak values. Interfaces between chalk masses and structural elements also require careful consideration. Vinck (2021) reports that putty formed around pile shafts develops angles δ′ of 31° to 34° when sheared against a range of rough steel interfaces, when tested with a spread of pore-fluid sodium chloride concentrations and at a broad range of ages.

Analysts must also consider stiffness. The monotonic triaxial, laboratory BE and field geophysical measurements indicate remarkably high elastic moduli. Modelling must also capture the chalk's non-linear pre-failure behaviour; locally instrumented triaxial tests show how vertical moduli vary with strain level and provide the basis for fitting suitable non-linear pre-failure models. Stiffness is markedly anisotropic under in situ conditions with the response to horizontal loading being around half as stiff as expected from laboratory compression tests. While meso-structural factors lead to field velocities being lower than laboratory equivalents, body waves can follow branched pathways that circumvent discontinuities and micro- to macro-fissures may have a still greater impact on mass stiffness under field loading (Matthews & Clayton, 1993).

The characterisation study also confirmed that chalk is susceptible to creep straining and shows strain-rate-dependent compressibility, both under in situ pressures (due to micro-fissure closure) and at higher stresses, when bond breakage and pore space collapse occur.

The characterisation study applied advanced testing to establish how the properties of low- to medium-density chalks vary with applied stress conditions, depth and structure. Although the programme was designed to support and enable modelling of the ALPACA pile tests, the outcomes are relevant to a wide range of other geotechnical problems in chalk and comparable geomaterials. The key conclusions are given below.

• (a)

  Intact chalk exists at states it cannot sustain when reconstituted. It is highly sensitive and destructures when taken to large strains, especially under high-impact dynamic loading, leading to remarkably high CPTu pore pressures and putty formation around pile shafts during installation.

• (b)

  Destructuration and tensile failure affect the responses seen in field and laboratory shear tests; they also affect full-scale pile behaviour.

• (c)

  A clear hierarchy exists between strengths obtained from UCS, BT, saturated triaxial and DSS tests conducted from in situ stress conditions. The relatively high UCS strengths reflect partial specimen saturation and potentially rate effects, while the DSS and BT tests’ low resistances reflect the chalk's fragile response to tension loading.

• (d)

  Slow drained (CID) and undrained (CIU) triaxial compression tests develop markedly brittle failures after relatively small axial strains (around 0·15%). The closely similar CID and CIU effective stress path inclinations developed under in situ stresses reflect marked stiffness anisotropy, with E′_h < E′_v.

• (e)

  Specimen scale affects CID test outcomes. 100 mm dia. specimens are generally slightly weaker than 38 mm dia. samples, but are noticeably stiffer due to the influence of both micro-fissures and test conditions. Where practically feasible, well-instrumented tests on large specimens should be preferred.

• (f)

  Under routine pressures the chalk's effective stress peak compressive shear strengths includes a substantial proportion of bonded strength. However, this decays rapidly post-peak to give low post-rupture strengths. Fully destructured chalk develops well-defined critical state shearing resistance and void ratio–pressure relationships. Cone–pressure-meter tests appear to reflect the properties of destructured chalk.

• (g)

  Profiles of G_hh and G_vh from in situ and laboratory dynamic testing show similar depth trends. While laboratory tests over-record bulk stiffness systematically by avoiding all large fissures, field geophysical tests reveal similar patterns for G_hh/G_vh < 1 at shallow depth and E′_h/E′_v < 1 throughout that are interpreted as resulting from micro-fissures. Samples consolidated to pressures that close these fissures show far less anisotropy, while full displacement pressure-meter tests indicate substantially lower shear stiffness.

• (h)

  Laboratory and field tests in chalk indicate high levels of creep straining as well as strain-rate-dependent compressibility and stiffness; further investigation is warranted on these aspects.

The ALPACA and ALPACA Plus projects were funded by the Engineering and Physical Science Research Council's (EPSRC) grant EP/P033091/1, Royal Society Newton Advanced Fellowship NA160438 and Supergen ORE Hub 2018 (EPSRC EP/S000747/1). Byrne is supported by the Royal Academy of Engineering under the Research Chairs and Senior Research Fellowships scheme, while Imperial College's EPSRC Centre for Doctoral Training (CDT) in Sustainable Civil Engineering and the DEME Group (Belgium) supported Ken Vinck's doctoral study (EPSRC EP/L016826/1). The authors would like to express their gratitude to the joint industry project industrial partners: Atkins, Cathie Associates, Equinor, Fugro, Geotechnical Consulting Group (GCG), Iberdrola, Innogy, LEMS, Ørsted, Parkwind, Siemens-Gamesa, Scottish Power Renewables, Vattenfall and TATA steel for their substantial financial and technical support. Imperial College technicians Steve Ackerley, Graham Keefe, Prash Hirani, Stef Karapanagiotidis, Graham Nash and Gary Jones are thanked for their invaluable expert work. The authors also acknowledge contributions to CPT and pressure-meter testing, block sampling, rotary core sampling, piezometer installation and monitoring and DSS testing by Cambridge Insitu Ltd, Fugro Ltd, Geotechnical Observations Ltd, Lankelma Ltd and Socotec UK Ltd.

A

pore-pressure coefficient

B

pore-pressure coefficient

C_c, C^*_c

compressibility index for intact and reconstituted specimen

C_s, C^*_s

swelling index for intact and reconstituted specimen

C_αe

secondary compression index

c′

soil cohesion

c_h,piezo

radial coefficient of consolidation

E

specimen void ratio

E′_h, E′_v

drained Young's moduli for cross-anisotropic elastic soil

E^u_h, E^u_v

undrained Young's moduli for cross-anisotropic elastic soil

G_hh

shear modulus in the horizontal plane

G_hv, G_vh

shear modulus in the vertical plane

G_s

specific gravity

K_o

earth pressure coefficient at rest

k_v

vertical permeability

Μ

critical state stress ratio, (q/p′)_cs

N_kt

empirical cone factor

n

porosity

p′

mean effective stress

p′₀

initial mean effective stress

Q

deviatoric stress ( = σ′_a–σ′_r)

q_f

deviatoric stress at failure

q_t

corrected cone tip resistance

q_u

unconfined compressive strength

R

radial effective stiffness

S_r

saturation degree

s_u

undrained shear strength

t

time

t₅₀

time for 50% dissipation of excess pore water pressure

u₁

pore pressure measured at the cone tip

u₂

pore pressure measured at the cone shoulder

V

specific volume

w

water content

Y₁, Y₂, Y₃

soil yielding surfaces defined in the multiple yielding surface framework, details by Jardine (1992)

γ_s

plane shear strain

ε_a

axial (vertical) strain

ε_h

radial (horizontal) strain

ρ_b

bulk density

ρ_d

dry density

σ′_r

radial effective stress

σ_t

indirect tensile strength

σ′_v, σ′_a

vertical (axial) effective stress

σ′_vy

effective vertical yield stress

υ′

Poisson's ratio

ϕ′, ϕ′_peak, ϕ′_cs

shear resistance angle at peak and critical state

Ψ

dilation angle
