Contribution by Zenon Szypcio and Katarzyna Dołżyk-Szypcio
Nguyen et al. (2021) studied the influence of the shape of a particle on critical state (CS) and dilatancy using discrete-element method (DEM) modelling. Triaxial compression of assemblies of spheres, ellipsoids and two clusters of spheres were investigated. One of the results is the linear stress ratio–dilatancy relationship for minimum dilatancy states. The stress ratio for zero dilatancy represents CS ratios (Mc). In the case of a small number of DEM calculations, the CS stress ratio (CS angle, ϕcs) may be affected by error.
The linear relationship between the stress ratio (η) and the minimum dilatancy (dmin) represents a frictional state line (FSL) for conventional drained triaxial compression and has the form (Szypcio, 2016a)
where

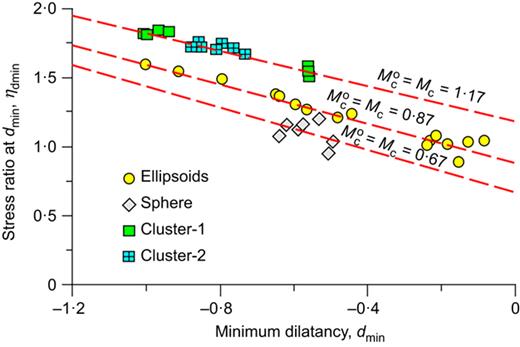

Here, ϕo is the critical frictional state angle (Szypcio, 2016a, 2016b), δεv = δε1 + 2δε3 and δεq = 2(δε1 − δε3)/3. The critical frictional state angle for granular materials is equal to the CS angle ϕo = ϕcs, (Moc = Mc; Szypcio (2016b)). Points representing minimum dilatancy states lie on the FSL. The slope of the FSL (Aoc) in the η–dmin plane is defined by the CS friction angle ϕo (ϕcs) or Moc (Mc). The best approximations of stress ratios–minimum dilatancy obtained with the use of equation (13) are with Moc = Mc = 0·67, 0·87 and 1·17 (ϕo = ϕcs = 17·54°, 22·33° and 29·31°) for spheres, ellipsoids and clusters of spheres, and these are shown in Fig. 15.
The relations between the minimum dilatancy and the corresponding η (adapted from Nguyen et al. (2021))
The relations between the minimum dilatancy and the corresponding η (adapted from Nguyen et al. (2021))
The corresponding values of Mc (ϕcs) obtained by Nguyen et al. (2021) are: Mc =0·8, 0·9, 1·2 and 1·1 (ϕcs =20·67°, 23·04°, 30·0° and 27·7°). There are some differences between the values of Mc (ϕcs) calculated with the use of equation (13) and direct calculations, especially for small numbers of DEM simulations.
The special case of Rowe's equation shown in the Appendix (equation (12))
is correct only for δεv/δε1 = −1 (Horne, 1965; Rowe, 1969). For triaxial compression
Comparing equations (13) and (18) for δεv/δε1 = −1 the relationship between sin ϕμ and sin ϕcs has the simple form

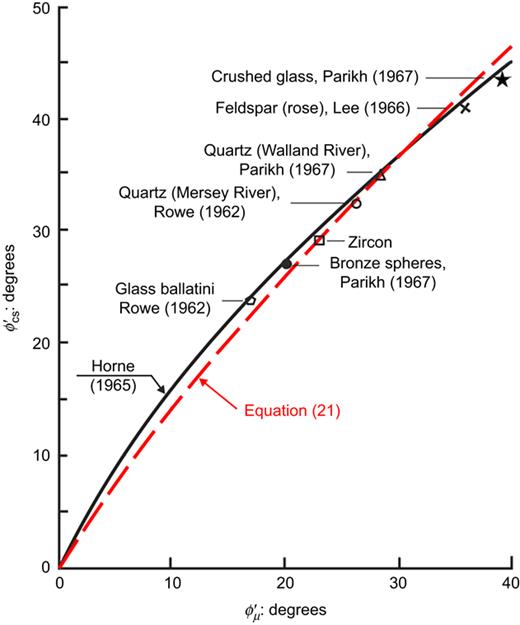

Figure 16 shows the relationship between ϕμ and ϕcs calculated by equation (21). The correct values of ϕμ are: ϕμ =12·9°, 16·9°and 22·15° or, in terms of the corresponding friction coefficients, μ = 0·23, 0·30 and 0·41 for spheres, ellipsoids and clusters of spheres. The inter-particle friction angles shown in Fig. 12 (Nguyen et al., 2021) do not fulfil equation (21).
The DEM method has gained great popularity in the last decade. The stress–dilatancy relationship, equation (13), can be used to determine the CS stress ratios (CS friction angle) correctly, especially for small numbers of DEM simulations. The friction coefficient as a basic DEM modelling parameter may be calculated by use of equation (21). The discussion contributors believe that the relationships presented will be helpful for DEM modelling in the future.
Authors’ response
The authors appreciate the discussers’ interest in their paper (Nguyen et al., 2021). The discussers show a way of approximating the CS stress ratio (Mc) from a linear approximation of the stress ratio (η) and the minimum dilatancy (dmin) relationship. This was done on the assumption by the discussers that a limited number of DEM simulations were conducted, and thus Mc was affected by the dataset, despite it having been stated in the paper that there were a large number of simulations for each particle shape, in the section ‘Effect of particle shape’; the discussers might have missed this information. However, the authors welcome this discussion to clarify the issue. The authors also note that the discussers’ approach would have some uses when independent measurement of the CS stress ratio from individual tests/simulations is not available or possible to achieve, but a dilatancy relation is, somehow, available. Therefore, these have been explained below.
Critical state stress ratio (Mc)

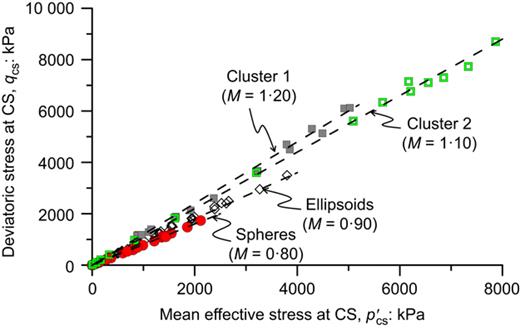

The CS stress ratio (ηc = q/p′) is an independent measurement of q and p′ at CS from an experiment/simulation. The data trend from a few to many individual experiments/simulations is plotted in q–p′ space, and the slope of the trend line is taken as the Mc for that soil (see Fig. 17). Therefore, the number of data points could affect the value of Mc. In the authors’ DEM study, both drained and undrained triaxial simulations after isotropic and K0 consolidations were considered. All these simulations gave stress ratios at CS. Thus, the corresponding Mc values were obtained from 34 simulations for spheres, 104 for ellipsoids and 46 for clusters (see Fig. 17). These numbers are certainly higher than the drained simulation data points used by the discusser in Fig. 17 and the authors’ Mc values represent a wide range of conditions. Most triaxial experiments could not afford as many data points as the authors have considered through the DEM simulations. It is well known that the measurement of Mc or a close approximation to the Mc value in q–p′ space for both experiments and simulations is much easier than for the other CS parameters associated with void ratio (e) or volume change (εv) in e–log(p′) space. In this respect, it is not clear to the authors why Mc has to be estimated from dmin measurements, which are associated with volume changes. The authors can think of a situation for the use of this approach – when all measurements, including εv, can be done reliably in triaxial experiment/simulation, but CS cannot be reached for various reasons, for example, strain limitations.
The critical state (CS) lines for samples with different particle shapes in the q–p′ space
The critical state (CS) lines for samples with different particle shapes in the q–p′ space
However, the authors would be cautious in using this approach even in the above hypothetical situation. This is simply because Mc is the intercept on the η-axis when dmin = 0 for . The discussers’ Fig. 17 shows no data points close to dmin = 0; to be precise most data points were dmin < −0·40, except for the ellipsoid. Thus, the best-fit linear relations were weighted with the data points away from Mc for dmin = 0 in the case of the sphere and cluster particles. However, more data points, including dmin ≈ 0, were used for the best fit for ellipsoids. Therefore, the estimated Mc of 0·87 was very close to the authors’ Mc of 0·90.
Relation between ϕμ and ϕcs

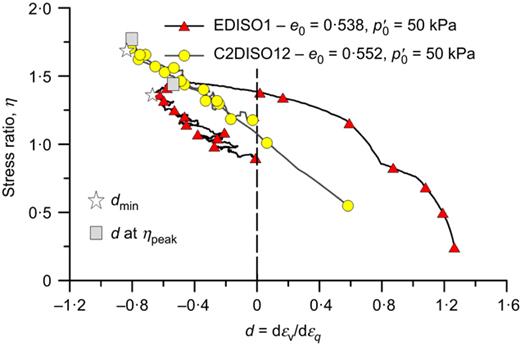

In the study under discussion, the authors did not explore any theoretical relationship between ϕμ and ϕcs. They are not clear how that justified the correctness of the discussers’ Mc or ϕcs. The authors explored a relationship between at dmin and dmin. The value of was calculated based on the direct measurement of major principal stresses and strains at the point of dmin and using equation (12) in the paper. The same method was done by Frossard (1979) to calculate ϕμ, who suggested that ϕμ increased with particle angularity. Fig. 12 in the original paper demonstrated the same finding. Further, a generalisation of the ϕμ and ϕcs relationship in the discussers’ equation (21) and Fig. 18 was also misleading – for example, having a CS friction angle of ϕcs = 0 is not realistic for soil. Furthermore, such a relationship was developed based on a liner relationship between η and d, where dmin coincides with d at ηpeak. The authors found that dmin occurred well after ηpeak, as shown in Fig. 18 and in other literature (Rahman et al., 2018; Nguyen et al., 2020). Such a phenomenon may be related to particle angularity, but that needs further investigation. However, this observation is not only DEM related. The experimental work by Santos et al. (2010) also showed the difference between dmin and d at ηpeak.
The evolution of stress dilatancy paths during drained triaxial simulations
