This paper presents a comprehensive statistical analysis to evaluate the uncertainties inherited in the lower–upper matrix (LU) decomposition-based random field theory, which is commonly used in geotechnical engineering to model the random spatial variability of soil properties. To facilitate this study, several realisations of Monte Carlo simulation coupled with LU decomposition-based random field theory are made for varying values of input statistical parameters. Thereafter, the statistical parameters are estimated for each simulated random field using the method of maximum likelihood. The results obtained in this study indicate that the LU decomposition-based random field theory does not yield the random field as it is anticipated to be for given input parameters. Ideally, the statistical parameters estimated from the simulated random fields should be nearly equal to the values of input parameters; however, there is significant randomness in the statistical parameters of the simulated random fields. Furthermore, this paper also presents the analysis to evaluate the factors affecting the uncertainties in the random fields simulated by LU decomposition-based theory by varying the input statistical and geometrical parameters.

a0

intercept on μX axis

a1

slope of trend line of variation of μX along the depth

COVX

coefficient of variation of X

d¯

average of vertical distances between intersection of soil property curve and fitted trend line

L

soil domain depth

qc

cone tip resistance in MPa

X

soil property

ϵ

percentage relative error

ζX

standard deviation of log-normal distribution of X

θ

input scale of fluctuation

λX

mean of log-normal distribution of X

μX

mean value of X

[ρ]

correlation matrix

τ

lag distance

The soil is formed through several intricate natural processes that unfold over extended geological time periods. Due to this, the geotechnical properties vary over short distances of just a few metres, which results in an inherent spatial variability of the ground (Baker, 1984; Fenton and Vanmarcke, 1990; Phoon and Kulhawy, 1999a, 1999b). Exact characterisation of soil spatial variability requires extensive geotechnical test data to obtain the complete information of the soil properties of the ground of interest, which is practically near to impossible. The presence of considerable inherent variability and limited geotechnical data gives rise to randomness in the quantification and modelling of soil spatial variability; therefore, treating the ground as a spatially varying random field is the most appropriate approach. Several studies have been done to assess the influence of spatially varying random ground on the behaviour of geotechnical engineering systems, including shallow foundations, slope stability, and pile foundation (Fenton and Griffiths, 2002, 2003, 2004a, 2004b, 2005; Haldar and Babu, 2008). These studies revealed that the soil spatial variability significantly affects the geotechnical system response; hence, it cannot be ignored. Therefore, the characterisation and modelling of spatial variability become of utmost importance in the risk assessment of geotechnical engineering systems. Over the period of time, several methods for probabilistic characterisation and modelling of the random spatial variable ground are developed. The method of moments and the method of maximum likelihood are commonly used methods to characterise the spatial variability of the ground (Cami et al., 2020; DeGroot and Baecher, 1993; Fenton, 1999a, 1999b). There are several mathematical models available, such as LU decomposition, fast Fourier transformation, and local average subdivision methods to model the random spatial variable ground (Fenton, 1994; Fenton and Vanmarcke, 1990; Jha and Ching, 2013). These mathematical models are generally known as random field theory.

Among these random field theories, LU decomposition-based random field theory is mostly used in practice (Cheng et al., 2019; Haldar and Babu, 2008; Li et al., 2015; Singhai and Vikash, 2022; Singhal et al., 2023). The LU decomposition-based random field theory follows Cholesky’s decomposition method coupled with Monte Carlo simulation, and it requires three parameters, namely, mean, variance, and scale of fluctuation, to model the stationary spatially varying random soil domain. Although the LU decomposition-based theory is commonly used to assess the risk associated with geotechnical engineering systems due to random spatially varying ground, a critical evaluation of the performance of this theory is yet to be done. Considering this, the LU decomposition-based random field theory is analysed in this paper, wherein the following points are critically evaluated.

  • Does the theory yield the simulated random fields as it is expected to for a given set of input parameters? Are the statistical parameters characterising the simulated spatially varying ground the same as those given as the input parameters to the random field theory, or are there some uncertainties involved in these?

  • Are the random fields simulated by the LU decomposition-based theory stationary?

  • What are the factors that enhance the randomness in the simulated random fields significantly?

The evaluation of these points is important, as the uncertainties in the random fields generated using LU decomposition-based random field theory will lead to an error in the risk assessment of geotechnical engineering systems. To achieve this, a comprehensive stochastic analysis of the uncertainties involved in modelling the soil spatial variability is performed, which is described in subsequent sections.

The inherent soil spatial variability is concisely described by mean, coefficient of variation, and scale of fluctuation. Based on an extensive literature review, Phoon and Kulhawy (1999a) summarised the values of these three statistical parameters for various mechanical properties of soils. They reported that the coefficient of variation of soils varies from 10% to 50%, and the scale of fluctuation lies between 0.2 and 6 m. Details of these can be found elsewhere (Phoon and Kulhawy, 1999a). In geotechnical engineering, the spatial variability of ground is commonly characterised by cone penetration test data, as it provides a continuous profile of cone tip resistance, qc, and sleeve friction, fs (Onyejekwe et al., 2016). Phoon and Kulhawy (1999a) reported that the mean value of qc of the soils ranges from 0.5 to 30 MPa, depending on the soil type. Considering these, this study considers a soil domain of depth (L) 20 m with qc as a soil property with a varying degree of coefficient of variation and scale of fluctuation. The cone tip resistance (qc) is denoted hereafter by the term X for brevity. Numerous sets of 2000 one-dimensional (1-D) random fields are realised for X with a given set of input parameters. The soil domain is discretised into 100 equidistant nodes for the simulation of random fields. The realisations are made using the Monte Carlo simulation technique with the input parameters: mean, μX = 25 MPa; coefficient of variation, COVX, varying from 10% to 30%; and the scale of fluctuation, θ, varies from 0.5 to 5 m. The soil property, X, is assumed to follow a log-normal distribution as it is always non-negative. The statistical analysis performed in this paper is categorised into two major sections, viz, the estimation of statistical parameters characterising the generated random fields, and the evaluation of uncertainties in the statistical parameters of the random fields. The former section is primarily focused on finding out the suitable method for the estimation of parameters of soil spatial variability, followed by statistical hypothesis testing. To accomplish this, a comparative analysis is made among the mostly used statistical estimation methods, namely, the method of moments and the method of maximum likelihood. The comparison between these two methods is done to determine the most appropriate method to characterise the soil spatial variability. Besides this, the goodness-of-fit test, the K–S test (Kolmogorov–Smirnov test) is performed to verify whether the generated random fields follow the given log-normal distribution or not. The latter section of the paper evaluates the randomness in statistical parameters of 1-D random fields to assess the potential factors influencing the uncertainties in the random fields generated by LU decomposition-based random field theory. Several rigorous statistical analyses are made on various sets of random field realisations by varying some of their input parameters (θ, COVX, and L) and observing its impact on their output statistical parameters. Numerical codes for Monte Carlo simulation coupled with random field theory, method of moments, and method of maximum likelihood are developed in this study using the Python programming environment to perform these statistical analyses.

The LU decomposition-based random field theory considers that the spatial correlation of the soil property, X, follows the Markovian exponentially decaying function, which is defined as

1

where ρij is the correlation coefficient defining the correlation of the soil property at ith and jth nodes, τij is the absolute distance between these two nodes, and θ is the scale of fluctuation. For n number of nodes, the correlation matrix, [ρ], which consists of all the correlation coefficients, is written as,

As the correlation matrix is a positive symmetric matrix, it can be decomposed into a product of lower and upper triangular matrices using the Cholesky decomposition technique, thus it is written as

2

where [L] is the lower triangular matrix.

The soil property, X, is assumed to follow a log-normal distribution, whose probability density function (pdf) is defined as

3

where λX and ζX are the parameters of the log-normal distribution, which are related to the parameters of the normal distribution μX and σX as shown.

4
5

To generate a random field of the soil property, the LU decomposition-based random field theory introduces a vector G of size n× 1, which is defined as

6

where z is the standard random normal variate with zero mean and unit variance. The spatially varying random field of soil property, X, is then determined by utilising the vector, G, and log-normal distribution parameters (λX, ζX) as

7

Thereafter, a Monte Carlo simulation is performed to generate distinct spatially varying soil properties in each realisation.

Three parameters are required to estimate the randomness in soil spatial variability: mean, variance, and scale of fluctuation. These parameters are generally estimated using the method of moments and the method of maximum likelihood. This section describes both the methods in brief, estimates the statistical parameters of the simulated random fields, followed by a quantitative comparison between these two methods to select the suitable method out of these two for further analysis.

In the method of moments, the parameters defining the distribution are estimated using the information on its moments. The parameters of the log-normal distribution, λX and ζX2, are determined as the first moment, E(lnX), and the second moment, Var(lnX), of logarithmic of the observation (x1, x2, x3, , xn) of the random variable, X, respectively. The observation (x1, x2, x3, , xn) is the value of X at different nodes along the depth obtained from each realisation of the random field. In the method of moments, the scale of fluctuation, θ, is generally determined using three methods, namely, the approximate method, the autocorrelation function method, and the semivariogram method. These methods are described below.

Approximate method

The approximate method is also known as the rule of thumb method for estimation of the scale of fluctuation, which was given by Fenton and Vanmarcke (1990). It assumes that the correlation function follows the squared exponential decay model. The method involves the fitting of the soil property profile into a trend line using a statistical method such as linear regression analysis. Furthermore, the average of the vertical distances, d¯, between the intersection of the soil property curve and the fitted trend line is determined. The scale of fluctuation is then estimated as

8

Figure 1 illustrates the rule of thumb method to estimate the scale of fluctuation.

Autocovariance function fitting

In the autocovariance function fitting, the covariance C(τ) between the random vectors X(z) and X(z+τ), which are subsets of the realisations of the random variable X, is determined as,

9

where, X(z) and X(z+τ) are the vectors of equal size separated by the lag distance τ and μX(z) and μX(z+τ) are the mean of X(z) and X(z+τ), respectively.

For a given lag distance τj=( j1)Δz, where j=1,2,,n, and Δz is the distance between two successive nodes, X(z) and X(z+τ) can be written as,

10

Thus, C(τ) for a given lag distance τj can be determined as,

11

In the above formula, random fields are assumed to be stationary and therefore μX(z) and μX(z+τ) are considered to be the same as μX, which is the mean of X. Furthermore, C(τj) is normalised with C(0) to obtain the sample correlation coefficient ρ(τj). C(0) is the covariance between the random vectors with zero lag distance, which is defined as,

12

Therefore,

13

The normalised correlation coefficient is plotted against the lag distance, τ, to determine the appropriate correlation function and its parameter. Generally, the Morkov model is considered a correlation function for spatially varying ground. The Markov model, which is an exponentially decaying correlation function, is defined as,

14

where θ is called scale of fluctuation. The scale of fluctuation θ is determined by performing least square regression analysis to fit the variation of ρ(τ) with τ for the random field X obtained from the theoretical function as given in Equation 14.

Semivariogram fitting

The semivariogram fitting is an alternative method to determine the correlation between the random vectors X(z) and X(z+τ). It is defined as,

15

where V(τ) is semivariogram, which can be written as below for a given lag distance τj,

16

The difference between the autocovariance and semivariogram fitting methods is that the former depends on the mean μX, whereas the latter does not depend on it. However, for the stationary process ρ(τ) and V(τ) are related as follows

17

The scale of fluctuation θ in the semivariogram fitting is determined using the regression analysis as similar to the autocovariance function fitting. For the least square regression analysis, the error for autocovariance and semivariogram fitting is defined as,

18a
18b

where ρ(τj) and ρ(τj) are the autocorrelation coefficients at given τj obtained from the theoretical function (Equation 14) and that from the simulated random field, respectively; V(τj) and V(τj) are the semivariogram coefficients obtained from the theoretical function (Equation 17) and that from the simulated random field, respectively. The error is minimised by performing an iteration over θ. The value of θ for which the error is minimum is considered as the scale of fluctuation for a given random field. Figures 2(a) and 2(b) show the variation of error with θ for autocovariance and semivariogram function fitting, respectively. Figures 3(a) and 3(b) depict the variation of ρ(τ) with τ obtained from the simulated random field and from the theoretical function with the estimated θ for autocovariance and semivariogram function fitting, respectively. From Figure 3, it can be clearly observed that the autocovariance method fits the ρ(τ) against τ relatively better than the semivariogram function fitting. The estimated value of θ for semivariogram function fitting is also higher than the input value of θ; whereas, it is close to the input value of θ for the autocovariance method.

In the method of maximum likelihood, the statistical parameters defining uncertainties are estimated by maximising the likelihood of observations under the assumed distribution. The likelihood of producing the observation xT={x1,x2,,xn} (x is the vector and superscript T is the matrix transpose) given the parameters ϕT={μX,σX2,θ} is defined as (Fenton, 1999a),

19

where C is the covariance matrix, |C| is the determinant of C, and μ is the vector of means defined as μ=μX1; 1n×1={1,1,,1}T. The expression for likelihood, as shown in Equation 19, considers that the observations follow the normal distribution. However, the simulation of the spatially varying random field is done considering that the realisations of X follow a log-normal distribution. Therefore, the data obtained from the simulation is transformed by taking the natural logarithmic to use it for the maximum likelihood estimation. Equation 19 is further simplified to estimate the parameters as shown below. Details of the mathematical derivations of the maximum likelihood method can be found in Fenton (1999a).

20

where L(x|ϕ) is logarithm of L(x|ϕ), σ^X2 is the estimator of σX2, and |ρ| is the determinant of correlation matrix. σ^X2 is determined by setting the partial derivative of L(x|ϕ) with respect to σX2 equal to zero, which yields,

21

where, r is a vector defined as ρr=x, and μ^X is estimator of μX, which is obtained by setting the partial derivative of L with respect to μX equal to zero,

22

The estimation of θ requires partial derivative of L(x|ϕ) (as given in Equation 20) with respect to θ. However, the closed-form solution does not exist for the same as differentiation of the determinant of ρ is not possible. Therefore, an iterative approach has been used to estimate the θ wherein the iteration over θ has been done to maximise the L(x|ϕ). The value of σ^X2 and μ^X have been updated in each iteration, and this process has been continued till the global maximum of L(x|ϕ) is obtained.

Table 1 shows the θavg estimated using the method of moments and the method of maximum likelihood, respectively. The θavg is the average value of θ estimated for all the simulated 2000 random fields with μX = 25 MPa, COVX = 10%, and the input θ = 2 m. Two cases of the soil domain with the length of 20 and 50 m are considered for estimation of θavg. Table 1 depicts that the θavg estimated from the approximate method for both the L equals to 20 and 50 m are much lesser than the input θ. The value of θavg in this case is between 0.75 and 0.81; however, θ given as input to generate the random fields is equal to 2. The semivariogram yields the value of θavg relatively higher than the input θ. The autocorrelation function fitting gives the value of θavg closer to the input θ. From Table 1, it can be clearly observed that the method of maximum likelihood estimates the value of θavg much closer to the input θ than any of the three methods of the method of moment. This indicates that the method of maximum likelihood performs better than the method of moment in estimation of the scale of fluctuation, θ. Therefore, the method of maximum likelihood is used for further analysis.

The analysis of uncertainties in the LU decomposition-based random field theory begins with performing the hypothesis testing for the following hypotheses.

  • The simulated random field of the soil property, X, follows the log-normal distribution.

  • The simulated random field of the soil property, X, follows the same distribution that is given as input to the random field theory for the realisation of the random fields.

The K–S test is performed to test the hypotheses mentioned above. The one-sample test is done for the first hypothesis, whereas the two-sample test is done for the second hypothesis. These tests are performed on the total 2000 random fields simulated with the input parameters, μX = 25 MPa, COVX = 30%, and θ = 2 m. Table 2 shows the percentage of acceptance of the hypothesis at different significance levels. From this table, it can be observed that the percentage of acceptance of the first hypothesis is in the range of 95%–99% for the given significance levels. This indicates that most of the simulated random fields follow the log-normal distribution. The result of the two-sample test shows that the percentage of acceptance of the second hypothesis is in the range of 43%–58% for the given values of significance level. This result indicates that approximately half of the total number of simulated random fields do not follow the distribution given as an input to the random field theory. Based on the results of one-sample and two-sample tests, it can be inferred that although simulated random fields follow the log-normal distribution, the statistical parameters of a major proportion of the simulated random fields are not the same as their input values. This indicates that the generated random fields are not the same as those expected to be; thereby, it results in the randomness in the statistical parameters of the simulated random fields.

To evaluate the randomness in the simulated random fields, a set of 2000 realisations of spatial random field are made with the input parameters: μX equals to 25 MPa, COVX = 20%, and θ = 2 m. Figures 4–6 show the histogram and best-fitted pdf of μXo, COVXo and θo, respectively. Where, μXo, COVXo, and θo are the mean, coefficient of variation, and scale of fluctuation estimated from the realised random fields using maximum likelihood estimation, respectively. These figures indicate that the statistical parameters (μXo, COVXo, and θo) characterising the simulated random fields are not constant as these are expected to be, instead these behave as the random variables following skewed normal distribution with their distribution parameters shown in the respective figures. The distribution parameters shown in Figures 4–6 are μ, σ, and Sk, where μ is the mean, σ is the standard deviation, and Sk is the skewness of the input statistical parameter, respectively. To further investigate the factors governing the randomness in output parameters, an elaborate stochastic analysis was conducted using 12 distinct sets of 2000 realisations done with varying input parameters. The scale of fluctuation was varied as 0.5, 1, 2, and 5 m, and the coefficient of variation was varied as 10%, 20%, and 30% with μX= 25 MPa.

Effect of input COVX on randomness in μXo, COVXo, and θo

Figure 7 shows the best-fitted distribution of μXo of the random fields generated with θ=2 m and COVX varying from 10% to 30%. This figure indicates that the mean and standard deviation of μXo increases with increase in the value of COVX. The percentage relative error (ϵ) of the mean of μXo varies from 0.88% to 8.04% as COVX varies from 10% to 30%; where the percentage relative error (ϵ) is determined as,

23

It can also be observed from Figure 7 that the standard deviation of μXo varies from 0.8 to 2.57 with an increase in the value of COVX from 10% to 30%. Similar observations can also be made from Figure 8, which shows that the percentage relative error in mean of COVXo varies from 65.4% to 70.7% and standard deviation of COVXo increases from 1.2 to 4.27 as the COVX increases from 10% to 30%. Figures 7 and 8 indicate that the randomness in μXo and COVXo increases with increase in the value of COVX. However, Figure 9 shows that θo is minimally sensitive towards the variation in COVX as ϵ in mean of θo varies from 9.5% to 7.5% and standard deviation of θo varies from 0.63 to 0.66 for COVX varying from 10% to 30%.

Effect of input θ on randomness in μXo, COVXo, and θo

Figure 10 depicts the best-fitted distribution of μXo for different values of θ ranging from 0.5 to 5 m for the given COVX=20%. This figure indicates that the scatteredness in μXo increases as θ increases. The value of σ of μXo varies from 1.39 to 2.21 as θ varies from 0.5 to 5 m. However, the percentage relative error in mean of μXo decreases from 15.28% to 0.52% with an increase in the value of θ from 0.5 to 5 m. Figure 11 shows the probability distribution of COVXo of the simulated random fields with input θ= 0.5, 1, 2, and 5 m for the given COVX=20%. Analysis of these distributions indicates that the percentage relative error decreases from 207.3% to 8.45% and the standard deviation decreases from 5.51 to 1.59 as the value of θ increases from 0.5 to 5 m. It is to be noted that the coefficient of variation measures the deviation of the values of the random variable around its mean. Thus, it can be inferred from the observations made from Figure 11 that the simulated random fields at lower value of θ are more scattered around their mean and the scatteredness decreases with increase in the value of θ. Effect of increase in dispersion with decrease in the value of θ can be observed in the percentage relative error in the mean of μXo and the standard deviation of μXo. Although the uncertainties in COVXo, which are measured herein with the relative percentage error and standard deviation, are relatively high, but their effect on the randomness in μXo are minimal. Figure 12 indicates that the accuracy as well as precision in θo increases with decrease in value of input θ. The relative percentage error in the mean of θo decreases from 25% to 2% and the value of σ decreases from 1.41 to 0.13 as the values of input θ varies from 5 to 0.5 m. This observation indicates that the simulated random fields are relatively more accurate at the lower value of θ as their scale of fluctuation (θo) are close to the value of θ for which realisations are made.

Effect of input θ/L on randomness of θo

In the above section, effect of input value of θ on the randomness in θo is analysed. However, the normalised value of θ with respect to the depth of the domain (L), defined as θL, can be considered to be a more appropriate parameter as compared with θ. Therefore, effect of θL on the parameters defining randomness in θo is further investigated. The values of θL ranging from 0.01 to 0.2 are considered for this analysis. This range has been chosen based on the practical values of θL reported in the literature (Fei et al., 2022; Onyejekwe et al., 2016). Two cases are considered to obtain the varying values of θL. In the first case, θ is varied from 0.5 to 2 m, and L is kept constant; and in the second case, θ is kept constant, and L is varied from 10 to 50 m. Figures 13 and 14 depict the effect of θL on the percentage relative error in mean of θo and the standard deviation of θo for the first and the second cases, respectively. From these figures, it can be clearly observed that the effect of COVX on the variation of parameters defining randomness is not significant for both the cases. Figures 13 and 14 indicate that the randomness in θo is very small as the percentage relative error is found to be around 5% and standard deviation is around 0.2 for θL=0.05, which are increased to around 18% and 0.80, respectively, as θL is increased to 0.2. It can be therefore inferred from these observations that the randomness in θo is less for the lower value of θL and it increases with increase in the values of θL. Figures 15(a) and 15(b) present an empirical relationship for the variation of the percentage relative error in the mean of θo and the standard deviation of θo with θL, respectively, which is obtained by performing least square regression analysis on the combined results of both the cases. These empirical relationships are useful in determining an optimum value of θ for a given domain to obtain the expected random fields using LU decomposition-based random field theory by setting a tolerable limit for ϵ and σ. In addition to this, these relationships also yield the amount of uncertainty in the random fields simulated for an input value of θL.

LU decomposition-based random field theory implicitly considers that the simulated spatially varying random fields are stationary. The stationarity assumption infers that the joint probability distribution function does not change with respect to space. In a simple way, it emphasises that the mean and variance should remain constant throughout the space. To evaluate this assumption, the soil domain is divided into four equal and successive subdomains, each having a depth of 5 m. Furthermore, the mean and the variance are estimated for each subdomain, and their values are shown at mid point of the subdomains in Figures 16(a) and 16(b). These figures show the variation of the mean and the variance along the depth estimated for one of the realisations, respectively. It can be clearly observed from Figure 16 that the values of the mean and the variance are not the same for all the subdomains, thereby indicating the non-stationary behaviour of soil property X along the spatial dimension. For detailed analysis, the subdomain mean values of X are fitted into a linear trend line using regression analysis as

24

where a0 is the intercept on μX axis and a1 is the slope of the trend line of the variation of μX along the depth.

For a stationary field, a0 should be equal to the input value of mean and a1 should be equal to zero. However, likelihood of single point prediction of a0 or a1 to analyse the stationarity assumption is practically zero in such random scenario. Therefore, a reasonable range of slope of trend line ranging from 7.5o to 7.5o, for which the value of a1 ranges from 0.1 to 0.1, around its mean is assumed to be the stationary field condition for statistical evaluation of stationarity assumption. Figure 17 shows the histogram of a1 and its best-fitted probability distribution for the random field simulated for θ = 2 m, COVX=30%, and μX=25 MPa. A hatched portion is also shown in this figure to depict the area corresponding to the assumed range of a1 for stationarity assumption. Thus, this area yields likelihood of the simulated random fields to be stationary, which is termed as P(S). Figure 18 shows the variation of P(S) with θL. This figure shows that the probability to obtain a stationary random field is reduced on increasing the value of θL following the exponentially decaying trend. Hence, this observation indicates that the likelihood of the simulated random fields to be stationary is more at the lower value of θL.

A comprehensive statistical analysis to evaluate the uncertainties associated with LU decomposition-based random field theory is done in this paper. The first part of the study analyses the suitable method to characterise the spatially varying ground, and the later part evaluate the uncertainties associated in modelling the random spatial variable ground using LU decomposition-based random field theory. The results obtained in this study indicate that the method of maximum likelihood performs better than the method of moments in estimation of the scale of fluctuation, θ. The one-way and two-way K–S hypothesis test performed on the simulated random fields indicate that the LU decomposition-based random field theory does not yield the random fields as these are expected to be for given input parameters. The mean, variance, and the scale of fluctuation estimated from the simulated random fields are different from those given as the input parameters to generate the random fields. The results obtained in this study indicate that the statistical parameters estimated from the simulated random fields behave as a random variable. It is observed that the effect of COVX on the randomness in μXo and COVXo are significant; however, it is minimal in θo. The randomness in θo is less for the lower value of θL and it increases with increase in the value of θL. The likelihood to obtain a stationary random field is more at the lower value of θL, and it reduces following exponentially decaying trend as θL increases. The results obtained from this study clearly highlight the limitations of LU decomposition-based random field theory, which is commonly used in geotechnical engineering to generate spatially variable random fields for risk assessment analyses for ground spatial variability. The findings of this study can be utilised to select the optimum values of statistical parameters, thereby reducing uncertainties and enabling the simulation of more accurate random fields.

Financial support from Shiv Nadar Institution of Eminence, Delhi-NCR, India, is gratefully acknowledged. Any opinions, findings, and conclusions or recommendations expressed in this materials are these of authors and do not necessarily reflect the views of Shiv Nadar Institution of Eminence, Delhi-NCR.

Baker
R
(
1984
)
Modeling soil variability as a random field
.
Journal of the International Association for Mathematical Geology
16
(5)
:
435
448
, .
Cami
B
,
Javankhoshdel
S
,
Phoon
KK
and
Ching
J
(
2020
)
Scale of fluctuation for spatially varying soils: estimation methods and values
.
ASCE-ASME Journal of Risk and Uncertainty in Engineering Systems, Part A: Civil Engineering
6
(4)
:
03120002
.
Cheng
H
,
Chen
J
,
Chen
R
and
Chen
G
(
2019
)
Comparison of modeling soil parameters using random variables and random fields in reliability analysis of tunnel face
.
International Journal of Geomechanics
19
(1)
:
04018184
.
DeGroot
DJ
and
Baecher
GB
(
1993
)
Estimating autocovariance of in-situ soil properties
.
Journal of Geotechnical Engineering
119
(1)
:
147
166
.
Fei
S
,
Tan
X
,
Lin
X
et al.
(
2022
)
Evaluation of the scale of fluctuation based on variance reduction method
.
Engineering Geology
308
:
106804
, .
Fenton
GA
and
Vanmarcke
EH
(
1990
)
Simulation of random fields via local average subdivision
.
Journal of Engineering Mechanics
116
(8)
:
1733
1749
.
Fenton
GA
(
1994
)
Error evaluation of three random-field generators
.
Journal of Engineering Mechanics
120
(12)
:
2478
2497
.
Fenton
GA
(
1999
a)
Estimation for stochastic soil models
.
Journal of Geotechnical and Geoenvironmental Engineering
125
(6)
:
470
485
.
Fenton
GA
(
1999
b)
Random field modeling of CPT data
.
Journal of Geotechnical and Geoenvironmental Engineering
125
(6)
:
486
498
.
Fenton
GA
and
Griffiths
DV
(
2002
)
Probabilistic foundation settlement on spatially random soil
.
Journal of Geotechnical and Geoenvironmental Engineering
128
(5)
:
381
390
.
Fenton
GA
and
Griffiths
DV
(
2003
)
Bearing capacity prediction of spatially random cϕ soils
.
Canadian Geotechnical Journal
40
(1)
:
54
65
.
Fenton
GA
and
Griffiths
DV
(
2004
a)
Probabilistic slope stability analysis by finite elements
.
Journal of Geotechnical and Geoenvironmental Engineering
130
(5)
:
507
518
.
Fenton
GA
and
Griffiths
DV
(
2004
b)
Three-dimensional probabilistic foundation settlement
.
Journal of Geotechnical and Geoenvironmental Engineering
131
(2)
:
232
239
.
Haldar
SS
and
Babu
GL
(
2008
)
Effect of soil spatial variability on the response of laterally loaded pile in undrained clay
.
Computers and Geotechnics
35
(4)
:
537
547
, .
Jha
SK
and
Ching
J
(
2013
)
Simulating spatial averages of stationary random field using the Fourier series method
.
Journal of Engineering Mechanics
139
(5)
:
594
605
.
Li
DQ
,
Jiang
SH
,
Cao
ZJ
et al.
(
2015
)
A multiple response-surface method for slope reliability analysis considering spatial variability of soil properties
.
Engineering Geology
187
:
60
72
.
Onyejekwe
S
,
Kang
X
and
Ge
L
(
2016
)
Evaluation of the scale of fluctuation of geotechnical parameters by autocorrelation function and semivariogram function
.
Engineering Geology
214
:
43
49
, .
Phoon
K-K
and
Kulhawy
FH
(
1999
a)
Characterization of geotechnical variability
.
Canadian Geotechnical Journal
36
(4)
:
612
624
, .
Phoon
K-K
and
Kulhawy
FH
(
1999
b)
Evaluation of geotechnical property variability
.
Canadian Geotechnical Journal
36
(4)
:
625
639
, .
Singhai
S
and
Vikash
G
(
2022
)
Uncertainties in vertical stress distribution in spatially varying random elastic half-space
.
International Journal of Geomechanics
22
(5)
:
04022035
.
Singhal
A
,
Vikash
G
and
Singhai
S
(
2023
)
Insights on 2D versus 3D modeling of strip loading on spatially varying random soil domain
.
Geo-Congress
2023
:
134
141
.
Published by Emerald Publishing Limited. This article is published under the Creative Commons Attribution (CC BY 4.0) licence. Anyone may reproduce, distribute, translate and create derivative works of this article (for both commercial and non-commercial purposes), subject to full attribution to the original publication and authors. The full terms of this licence may be seen at Link to the terms of the CC BY 4.0 licenceLink to the terms of the CC BY 4.0 licence.

Data & Figures

Figure 1.

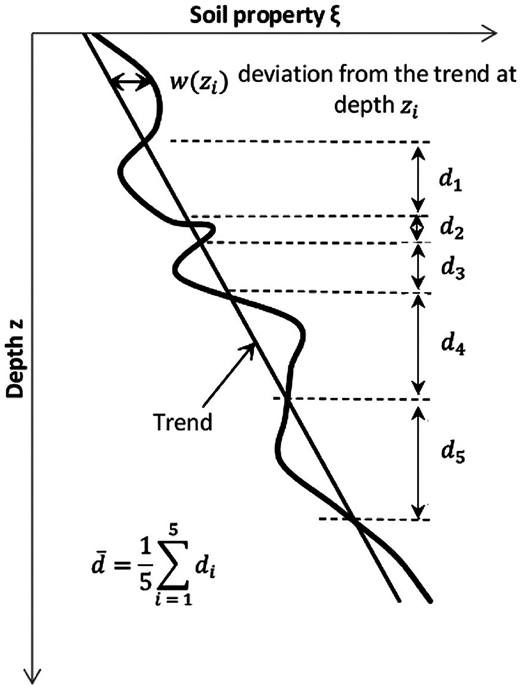

A schematic showing soil property variation with depth and deviation from a linear trend divided into segments d 1 to d 5.The diagram shows soil property xi along the horizontal axis and depth z increasing downward. A straight line indicates the trend, while a wavy curve shows deviations from this trend. At a depth z i, the horizontal distance between the curve and trend is labelled w z i. The profile is divided into five vertical segments labelled d 1, d 2, d 3, d 4, and d 5 using dashed horizontal lines. At the bottom, the mean spacing is defined as d bar equals 1 over 5 times the sum of d i.

Illustration of the rule of thumb for estimation of scale of fluctuation

Figure 1.
A schematic showing soil property variation with depth and deviation from a linear trend divided into segments d 1 to d 5.The diagram shows soil property xi along the horizontal axis and depth z increasing downward. A straight line indicates the trend, while a wavy curve shows deviations from this trend. At a depth z i, the horizontal distance between the curve and trend is labelled w z i. The profile is divided into five vertical segments labelled d 1, d 2, d 3, d 4, and d 5 using dashed horizontal lines. At the bottom, the mean spacing is defined as d bar equals 1 over 5 times the sum of d i.

Illustration of the rule of thumb for estimation of scale of fluctuation

Close modal

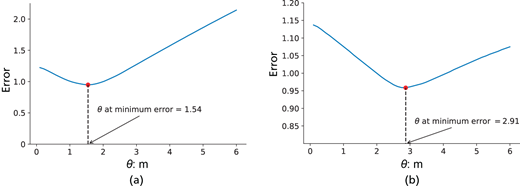

Figure 2.
Two error curves show minimum error at theta about 1.54 metre and 2.91 metre.The left chart plots error versus theta in metres. Error decreases from about 1.2 to a minimum near 0.95 at theta about 1.54, then increases again. The right chart shows a similar trend, with minimum error near 0.96 at theta about 2.91. Both curves are U-shaped, and the minimum points are marked with dots and vertical dashed lines.

Variation of error with respect to θ estimated using (a) autocovariance function fitting (θ=1.54) and (b) semivariogram method (θ=2.91)

Figure 2.
Two error curves show minimum error at theta about 1.54 metre and 2.91 metre.The left chart plots error versus theta in metres. Error decreases from about 1.2 to a minimum near 0.95 at theta about 1.54, then increases again. The right chart shows a similar trend, with minimum error near 0.96 at theta about 2.91. Both curves are U-shaped, and the minimum points are marked with dots and vertical dashed lines.

Variation of error with respect to θ estimated using (a) autocovariance function fitting (θ=1.54) and (b) semivariogram method (θ=2.91)

Close modal

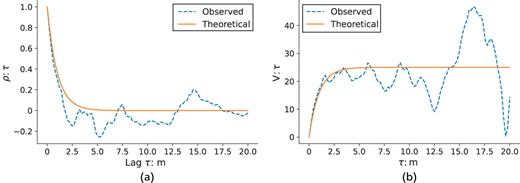

Figure 3.
Two charts compare observed and theoretical correlation and variance versus lag tau.The left chart shows the correlation rho of tau versus lag tau in metres. The theoretical curve decreases smoothly to near 0, while the observed curve fluctuates around zero with small oscillations. The right chart shows the variance V of tau versus lag tau. The theoretical curve rises quickly and stabilises near 25, while the observed curve varies widely between about 10 and 45, with peaks around 16 to 18 before dropping near 0 at high lag.

Comparison of curves between simulated data and theoretical function along estimated of using (a) autocovariance function fitting and (b) semivariogram method

Figure 3.
Two charts compare observed and theoretical correlation and variance versus lag tau.The left chart shows the correlation rho of tau versus lag tau in metres. The theoretical curve decreases smoothly to near 0, while the observed curve fluctuates around zero with small oscillations. The right chart shows the variance V of tau versus lag tau. The theoretical curve rises quickly and stabilises near 25, while the observed curve varies widely between about 10 and 45, with peaks around 16 to 18 before dropping near 0 at high lag.

Comparison of curves between simulated data and theoretical function along estimated of using (a) autocovariance function fitting and (b) semivariogram method

Close modal
Figure 4.

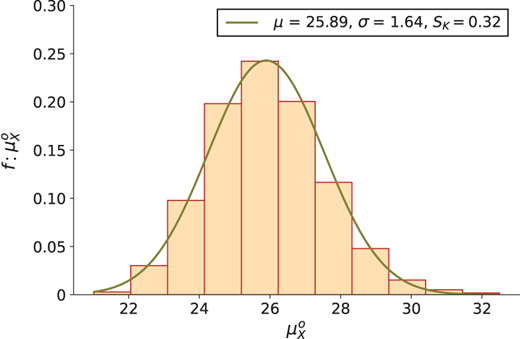

A histogram of mu sub x shows a normal distribution centred near 25.9 with a fitted curve.The chart plots f of mu sub x versus mu sub x. A histogram spans about 21 to 32, with the highest frequency near 26. A smooth curve overlays the bars. The peak occurs at about 25.89 with a spread sigma of 1.64 and a skewness of about 0.32. The distribution is approximately symmetric with slight right skew.

Histogram and best-fitted probability density function (pdf) of μXo

Figure 4.
A histogram of mu sub x shows a normal distribution centred near 25.9 with a fitted curve.The chart plots f of mu sub x versus mu sub x. A histogram spans about 21 to 32, with the highest frequency near 26. A smooth curve overlays the bars. The peak occurs at about 25.89 with a spread sigma of 1.64 and a skewness of about 0.32. The distribution is approximately symmetric with slight right skew.

Histogram and best-fitted probability density function (pdf) of μXo

Close modal

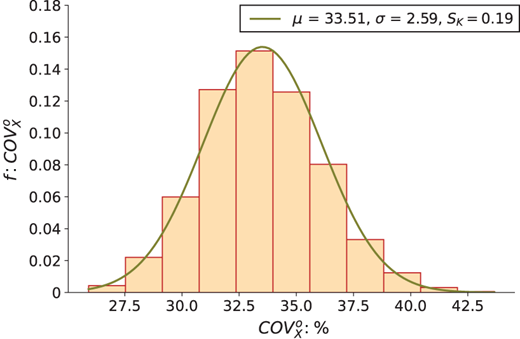

Figure 5.
A histogram of C O V sub x percent shows a distribution centred near 33.5 with afitted curve.The chart shows f of C O V sub x percent versus C O V sub x percent. Values range from about 27 to 43, with a peak near 33.5. A smooth curve overlays the histogram. The mean is about 33.51 with a sigma of 2.59 and a skewness of about 0.19. The distribution is moderately spread and nearly symmetric.

Histogram and best-fitted probability density function (pdf) of COVXo

Figure 5.
A histogram of C O V sub x percent shows a distribution centred near 33.5 with afitted curve.The chart shows f of C O V sub x percent versus C O V sub x percent. Values range from about 27 to 43, with a peak near 33.5. A smooth curve overlays the histogram. The mean is about 33.51 with a sigma of 2.59 and a skewness of about 0.19. The distribution is moderately spread and nearly symmetric.

Histogram and best-fitted probability density function (pdf) of COVXo

Close modal
Figure 6.

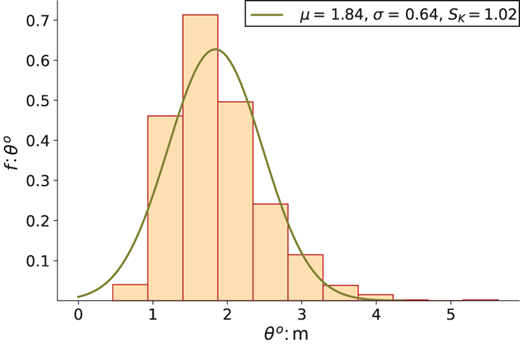

A histogram of theta shows a distribution centred near 1.84 metres with a wider spread and right skew.The chart plots f of theta versus theta in metres. Values range from about 0 to 5.5 with a peak near 1.8. A fitted curve overlays the histogram. The mean is about 1.84, the sigma is 0.64, and the skewness is about 1.02. The distribution shows noticeable right skew with a longer tail at higher values.

Histogram and best-fitted probability density function (pdf) of θo

Figure 6.
A histogram of theta shows a distribution centred near 1.84 metres with a wider spread and right skew.The chart plots f of theta versus theta in metres. Values range from about 0 to 5.5 with a peak near 1.8. A fitted curve overlays the histogram. The mean is about 1.84, the sigma is 0.64, and the skewness is about 1.02. The distribution shows noticeable right skew with a longer tail at higher values.

Histogram and best-fitted probability density function (pdf) of θo

Close modal
Figure 7.

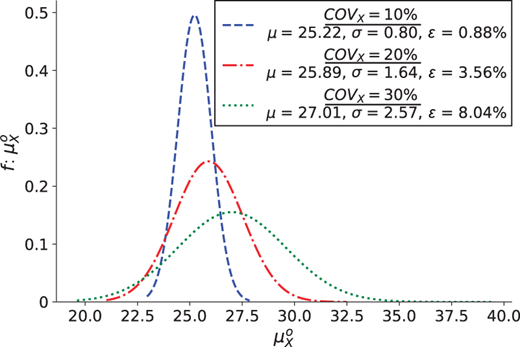

Three curves show mu sub x distributions widening and shifting right as C O V sub x increases.The chart plots f of mu sub x versus mu sub x for three cases of C O V sub x equal to 10 percent, 20 percent, and 30 percent. The 10 percent curve peaks sharply near 25.2 with a narrow spread. The 20 percent curve peaks near 25.9 with a moderate spread. The 30 percent curve peaks near 27.0 with the widest spread. Increasing C O V sub x results in broader and slightly right-shifted distributions.

Effect of variation of COVX on randomness in μXo

Figure 7.
Three curves show mu sub x distributions widening and shifting right as C O V sub x increases.The chart plots f of mu sub x versus mu sub x for three cases of C O V sub x equal to 10 percent, 20 percent, and 30 percent. The 10 percent curve peaks sharply near 25.2 with a narrow spread. The 20 percent curve peaks near 25.9 with a moderate spread. The 30 percent curve peaks near 27.0 with the widest spread. Increasing C O V sub x results in broader and slightly right-shifted distributions.

Effect of variation of COVX on randomness in μXo

Close modal
Figure 8.

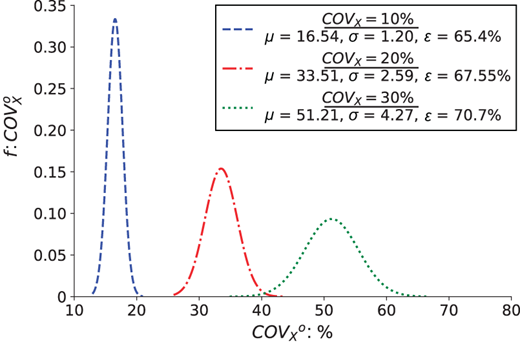

Three curves show C O V sub x distributions shifting right and widening as input C O V sub x increases.The chart plots f of C O V sub x versus C O V sub x percent for three cases of C O V sub x equal to 10 percent, 20 percent, and 30 percent. The 10 percent curve peaks near 16.5 with a narrow spread. The 20 percent curve peaks near 33.5 with a moderate spread. The 30 percent curve peaks near 51.2 with the widest spread. As C O V sub x increases, the distribution shifts to higher values and becomes broader.

Effect of variation of COVX on randomness in COVXo

Figure 8.
Three curves show C O V sub x distributions shifting right and widening as input C O V sub x increases.The chart plots f of C O V sub x versus C O V sub x percent for three cases of C O V sub x equal to 10 percent, 20 percent, and 30 percent. The 10 percent curve peaks near 16.5 with a narrow spread. The 20 percent curve peaks near 33.5 with a moderate spread. The 30 percent curve peaks near 51.2 with the widest spread. As C O V sub x increases, the distribution shifts to higher values and becomes broader.

Effect of variation of COVX on randomness in COVXo

Close modal
Figure 9.

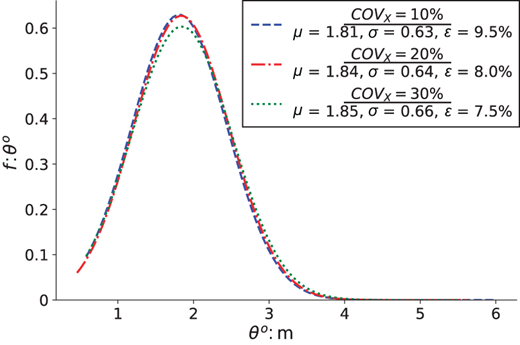

Three curves show theta distributions nearly overlapping with similar peaks near 1.8 metre for different C O V sub x values.The chart plots f of theta versus theta in metres for C O V sub x values of 10 percent, 20 percent, and 30 percent. All three curves peak near 1.8 and have very similar shapes and spreads. The mean values range from about 1.81 to 1.85, and sigma values are close to 0.63 and 0.66. The distributions almost overlap, indicating minimal influence of C O V sub x on theta distribution shape.

Effect of variation of COVX on randomness in θo

Figure 9.
Three curves show theta distributions nearly overlapping with similar peaks near 1.8 metre for different C O V sub x values.The chart plots f of theta versus theta in metres for C O V sub x values of 10 percent, 20 percent, and 30 percent. All three curves peak near 1.8 and have very similar shapes and spreads. The mean values range from about 1.81 to 1.85, and sigma values are close to 0.63 and 0.66. The distributions almost overlap, indicating minimal influence of C O V sub x on theta distribution shape.

Effect of variation of COVX on randomness in θo

Close modal

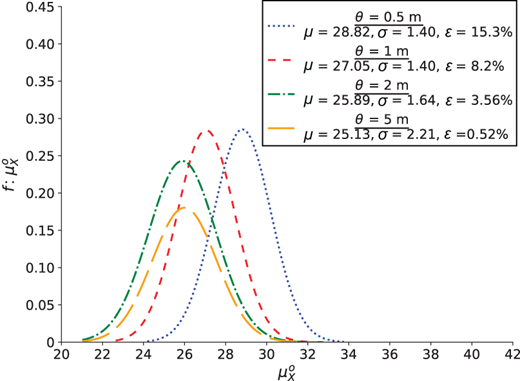

Figure 10.
A set of probability curves of mean soil property for different theta values showing decreasing mean and variability with increasing theta.The graph plots probability density against mean soil property mu x bar. Four curves correspond to theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The curves shift left as theta increases, indicating decreasing mean values from about 28.82 to 25.13. Standard deviation remains similar for smaller theta and increases slightly for larger theta. Each curve is labelled with mu, sigma, and epsilon percent values.

Best-fitted probability density functions (pdfs) of μXo for varying θ at COVX=20%

Figure 10.
A set of probability curves of mean soil property for different theta values showing decreasing mean and variability with increasing theta.The graph plots probability density against mean soil property mu x bar. Four curves correspond to theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The curves shift left as theta increases, indicating decreasing mean values from about 28.82 to 25.13. Standard deviation remains similar for smaller theta and increases slightly for larger theta. Each curve is labelled with mu, sigma, and epsilon percent values.

Best-fitted probability density functions (pdfs) of μXo for varying θ at COVX=20%

Close modal
Figure 11.
A probability distribution of coefficient of variation showing large decrease as theta increases from 0.5 metre to 5 metre.The graph shows probability density versus the coefficient of variation percent. Four curves represent theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The peak shifts from about 61.46 percent at theta 0.5 metre to about 21.69 percent at theta 5 metre. Spread decreases as theta increases, indicating reduced variability. Each curve includes values of mean, standard deviation, and epsilon percent.

Best-fitted probability density functions (pdfs) of COVXo for varying θ at COVX=20%

Figure 11.
A probability distribution of coefficient of variation showing large decrease as theta increases from 0.5 metre to 5 metre.The graph shows probability density versus the coefficient of variation percent. Four curves represent theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The peak shifts from about 61.46 percent at theta 0.5 metre to about 21.69 percent at theta 5 metre. Spread decreases as theta increases, indicating reduced variability. Each curve includes values of mean, standard deviation, and epsilon percent.

Best-fitted probability density functions (pdfs) of COVXo for varying θ at COVX=20%

Close modal
Figure 12.
A probability distribution of theta values showing increasing mean and spread as theta increases from 0.5 metres to 5 metres.The graph plots probability density against theta zero in metres. Four curves correspond to theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The peaks move from about 0.49 to 3.75 as theta increases. The distributions widen significantly for larger theta, indicating increased spread. Each curve includes labelled mean, standard deviation, and epsilon percent values.

Best-fitted probability density functions (pdfs) of θo for varying θ at COVX=20%

Figure 12.
A probability distribution of theta values showing increasing mean and spread as theta increases from 0.5 metres to 5 metres.The graph plots probability density against theta zero in metres. Four curves correspond to theta values of 0.5 metres, 1 metre, 2 metres, and 5 metres. The peaks move from about 0.49 to 3.75 as theta increases. The distributions widen significantly for larger theta, indicating increased spread. Each curve includes labelled mean, standard deviation, and epsilon percent values.

Best-fitted probability density functions (pdfs) of θo for varying θ at COVX=20%

Close modal
Figure 13.

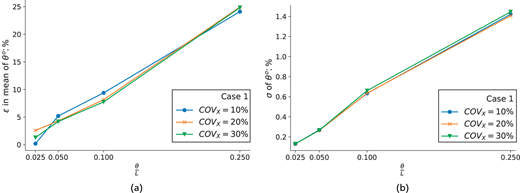

Two line charts show epsilon and sigma of theta increasing with theta over L for different C O V x values.The left chart plots epsilon in mean of theta percent against theta over L with values 0.025, 0.05, 0.1, and 0.25. Three lines for C O V x 10 percent, 20 percent, and 30 percent all increase, reaching about 24 to 25 percent at 0.25. The right chart shows sigma of theta percent versus theta over L with the same x values. All three lines rise steadily from about 0.14 to about 1.45, with minimal difference between C O V x cases.

The effect of θL for case 1, (θ, COVX is varying and L is kept constant (L = 20)) on (a) ϵ in mean of θo and (b) σ in mean of θo

Figure 13.
Two line charts show epsilon and sigma of theta increasing with theta over L for different C O V x values.The left chart plots epsilon in mean of theta percent against theta over L with values 0.025, 0.05, 0.1, and 0.25. Three lines for C O V x 10 percent, 20 percent, and 30 percent all increase, reaching about 24 to 25 percent at 0.25. The right chart shows sigma of theta percent versus theta over L with the same x values. All three lines rise steadily from about 0.14 to about 1.45, with minimal difference between C O V x cases.

The effect of θL for case 1, (θ, COVX is varying and L is kept constant (L = 20)) on (a) ϵ in mean of θo and (b) σ in mean of θo

Close modal
Figure 14.

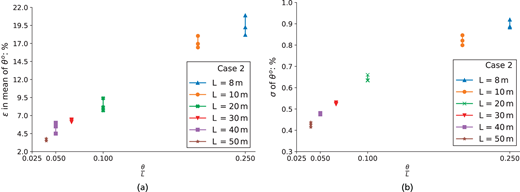

Two scatter charts show epsilon and sigma of theta versus theta over L for different lengths L from 8 metre to 50 metre.The left chart shows epsilon in the mean of theta percent plotted against theta over L. Points for lengths 8, 10, 20, 30, 40, and 50 metres increase from about 3 percent at 0.025 to about 20 percent at 0.25. Larger lengths correspond to smaller epsilon at low theta over L. The right chart shows the sigma of theta percent versus theta over L. Values increase from about 0.42 to about 0.92 as theta over L increases, with shorter lengths generally giving higher sigma.

The effect of θL for case 2, (L is varying and θ, COVX are kept constant (θ=2, COVX=20%)) on (a) ϵ in mean of θo and (b) σ in mean of θo

Figure 14.
Two scatter charts show epsilon and sigma of theta versus theta over L for different lengths L from 8 metre to 50 metre.The left chart shows epsilon in the mean of theta percent plotted against theta over L. Points for lengths 8, 10, 20, 30, 40, and 50 metres increase from about 3 percent at 0.025 to about 20 percent at 0.25. Larger lengths correspond to smaller epsilon at low theta over L. The right chart shows the sigma of theta percent versus theta over L. Values increase from about 0.42 to about 0.92 as theta over L increases, with shorter lengths generally giving higher sigma.

The effect of θL for case 2, (L is varying and θ, COVX are kept constant (θ=2, COVX=20%)) on (a) ϵ in mean of θo and (b) σ in mean of θo

Close modal
Figure 15.

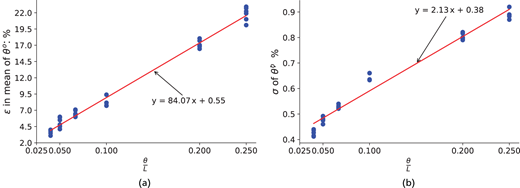

Two scatter plots with fitted lines show linear increase of epsilon and sigma of theta with theta over L.The left plot shows epsilon in mean of theta percent against theta over L with scattered points and a fitted line labelled y equals 84.07 x plus 0.55. Values increase linearly from about 3 to about 22 percent. The right plot shows sigma of theta percent versus theta over L with a fitted line labelled y equals 2.13 x plus 0.38. Sigma increases from about 0.42 to about 0.92, showing a clear linear relationship.

Empirical relationship derived using linear regression analysis for (a) ϵ in mean of θo against θL and (b) σ in mean of θo against θL

Figure 15.
Two scatter plots with fitted lines show linear increase of epsilon and sigma of theta with theta over L.The left plot shows epsilon in mean of theta percent against theta over L with scattered points and a fitted line labelled y equals 84.07 x plus 0.55. Values increase linearly from about 3 to about 22 percent. The right plot shows sigma of theta percent versus theta over L with a fitted line labelled y equals 2.13 x plus 0.38. Sigma increases from about 0.42 to about 0.92, showing a clear linear relationship.

Empirical relationship derived using linear regression analysis for (a) ϵ in mean of θo against θL and (b) σ in mean of θo against θL

Close modal
Figure 16.

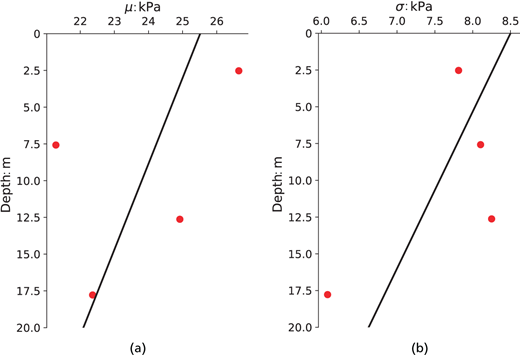

Two depth profiles show mean and standard deviation of soil property increasing with depth alongside linear trend lines.The left plot shows mean mu in kilopascal versus depth from 0 to 20 metres. Data points increase with depth from about 22 to about 26 kilopascal, with a straight trend line. The right plot shows sigma in kilopascal versus depth. Values increase from about 6 to about 8.5 kilopascals with depth. Both plots display scattered measurements aligned with upward linear trends.

Variation and linear regression fitting of (a) mean values of X and (b) standard deviation values of X along each sub-domain

Figure 16.
Two depth profiles show mean and standard deviation of soil property increasing with depth alongside linear trend lines.The left plot shows mean mu in kilopascal versus depth from 0 to 20 metres. Data points increase with depth from about 22 to about 26 kilopascal, with a straight trend line. The right plot shows sigma in kilopascal versus depth. Values increase from about 6 to about 8.5 kilopascals with depth. Both plots display scattered measurements aligned with upward linear trends.

Variation and linear regression fitting of (a) mean values of X and (b) standard deviation values of X along each sub-domain

Close modal
Figure 17.

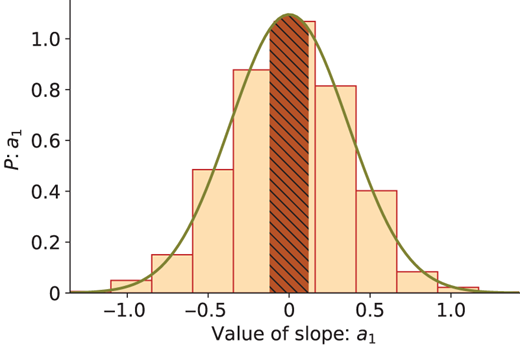

A histogram of slope a 1 values with a normal curve centred at 0 showing symmetric distribution.The chart shows the probability density p of a 1 versus the value of slope a 1. A histogram spans about negative 1.2 to positive 1.2, with the highest bars near 0. A smooth curve overlays the bars and peaks at 0, indicating a symmetric normal distribution. The central bin around 0 is highlighted, and frequencies decrease evenly towards both tails.

Statistical variation of the regression parameter, a1 (assumed reasonable range of stationary condition shown by hatched region)

Figure 17.
A histogram of slope a 1 values with a normal curve centred at 0 showing symmetric distribution.The chart shows the probability density p of a 1 versus the value of slope a 1. A histogram spans about negative 1.2 to positive 1.2, with the highest bars near 0. A smooth curve overlays the bars and peaks at 0, indicating a symmetric normal distribution. The central bin around 0 is highlighted, and frequencies decrease evenly towards both tails.

Statistical variation of the regression parameter, a1 (assumed reasonable range of stationary condition shown by hatched region)

Close modal
Figure 18.

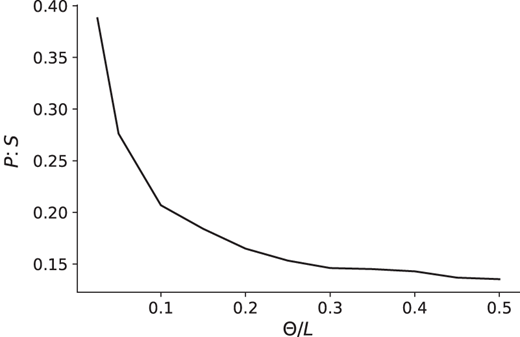

A line chart shows p of S decreasing as theta over L increases from 0.05 to 0.5.The chart plots p of S against theta over L. The curve starts near 0.38 at low theta over L and decreases sharply to about 0.2 by 0.1. It then gradually declines and stabilises around 0.135 at 0.5. The trend shows a rapid initial drop followed by a slight decrease.

Variation of probability of stationary random field, P(S) with θL

Figure 18.
A line chart shows p of S decreasing as theta over L increases from 0.05 to 0.5.The chart plots p of S against theta over L. The curve starts near 0.38 at low theta over L and decreases sharply to about 0.2 by 0.1. It then gradually declines and stabilises around 0.135 at 0.5. The trend shows a rapid initial drop followed by a slight decrease.

Variation of probability of stationary random field, P(S) with θL

Close modal
Table 1.

Estimated values of θavg using the method of moments and method of maximum likelihood

L: mEstimated values of θavg: m
Method of momentsMethod of maximum likelihood
Approximate methodAutocovariance function fittingSemivariogram fitting
200.7561.5013.3031.843
500.8051.8152.9471.944
Table 2.

Results of K–S hypothesis testing

Significance level: %K–S hypothesis tests, P(Ho) in %
One-sample testTwo-sample test
598.9558.05
1097.9549.8
1595.3043.2

Supplements

References

Baker
R
(
1984
)
Modeling soil variability as a random field
.
Journal of the International Association for Mathematical Geology
16
(5)
:
435
448
, .
Cami
B
,
Javankhoshdel
S
,
Phoon
KK
and
Ching
J
(
2020
)
Scale of fluctuation for spatially varying soils: estimation methods and values
.
ASCE-ASME Journal of Risk and Uncertainty in Engineering Systems, Part A: Civil Engineering
6
(4)
:
03120002
.
Cheng
H
,
Chen
J
,
Chen
R
and
Chen
G
(
2019
)
Comparison of modeling soil parameters using random variables and random fields in reliability analysis of tunnel face
.
International Journal of Geomechanics
19
(1)
:
04018184
.
DeGroot
DJ
and
Baecher
GB
(
1993
)
Estimating autocovariance of in-situ soil properties
.
Journal of Geotechnical Engineering
119
(1)
:
147
166
.
Fei
S
,
Tan
X
,
Lin
X
et al.
(
2022
)
Evaluation of the scale of fluctuation based on variance reduction method
.
Engineering Geology
308
:
106804
, .
Fenton
GA
and
Vanmarcke
EH
(
1990
)
Simulation of random fields via local average subdivision
.
Journal of Engineering Mechanics
116
(8)
:
1733
1749
.
Fenton
GA
(
1994
)
Error evaluation of three random-field generators
.
Journal of Engineering Mechanics
120
(12)
:
2478
2497
.
Fenton
GA
(
1999
a)
Estimation for stochastic soil models
.
Journal of Geotechnical and Geoenvironmental Engineering
125
(6)
:
470
485
.
Fenton
GA
(
1999
b)
Random field modeling of CPT data
.
Journal of Geotechnical and Geoenvironmental Engineering
125
(6)
:
486
498
.
Fenton
GA
and
Griffiths
DV
(
2002
)
Probabilistic foundation settlement on spatially random soil
.
Journal of Geotechnical and Geoenvironmental Engineering
128
(5)
:
381
390
.
Fenton
GA
and
Griffiths
DV
(
2003
)
Bearing capacity prediction of spatially random cϕ soils
.
Canadian Geotechnical Journal
40
(1)
:
54
65
.
Fenton
GA
and
Griffiths
DV
(
2004
a)
Probabilistic slope stability analysis by finite elements
.
Journal of Geotechnical and Geoenvironmental Engineering
130
(5)
:
507
518
.
Fenton
GA
and
Griffiths
DV
(
2004
b)
Three-dimensional probabilistic foundation settlement
.
Journal of Geotechnical and Geoenvironmental Engineering
131
(2)
:
232
239
.
Haldar
SS
and
Babu
GL
(
2008
)
Effect of soil spatial variability on the response of laterally loaded pile in undrained clay
.
Computers and Geotechnics
35
(4)
:
537
547
, .
Jha
SK
and
Ching
J
(
2013
)
Simulating spatial averages of stationary random field using the Fourier series method
.
Journal of Engineering Mechanics
139
(5)
:
594
605
.
Li
DQ
,
Jiang
SH
,
Cao
ZJ
et al.
(
2015
)
A multiple response-surface method for slope reliability analysis considering spatial variability of soil properties
.
Engineering Geology
187
:
60
72
.
Onyejekwe
S
,
Kang
X
and
Ge
L
(
2016
)
Evaluation of the scale of fluctuation of geotechnical parameters by autocorrelation function and semivariogram function
.
Engineering Geology
214
:
43
49
, .
Phoon
K-K
and
Kulhawy
FH
(
1999
a)
Characterization of geotechnical variability
.
Canadian Geotechnical Journal
36
(4)
:
612
624
, .
Phoon
K-K
and
Kulhawy
FH
(
1999
b)
Evaluation of geotechnical property variability
.
Canadian Geotechnical Journal
36
(4)
:
625
639
, .
Singhai
S
and
Vikash
G
(
2022
)
Uncertainties in vertical stress distribution in spatially varying random elastic half-space
.
International Journal of Geomechanics
22
(5)
:
04022035
.
Singhal
A
,
Vikash
G
and
Singhai
S
(
2023
)
Insights on 2D versus 3D modeling of strip loading on spatially varying random soil domain
.
Geo-Congress
2023
:
134
141
.

Languages

or Create an Account

Close Modal
Close Modal
