Extension of unsaturated soil mechanics and its applications Open Access

1

second-order identity tensor

A

fourth-order deviatoric tensor defined by A = I − (1/3) (1 ⊗ 1)

b

body force working to the whole mixture

b_r

parameter which controls the rotational rate of the yield surface

b_α

body force working to the α phase

C^e

elastic stiffness tensor

C^ep

elasto-plastic stiffness tensor

c

concentration ratio

c_α

parameter which controls the moving rate of the similarity centre

D

diffusion coefficient

e

void ratio

G

shear modulus

G_s

specific gravity of soil particle

h_a

total air head

h_w

total water head

I

fourth-order identity tensors

J

concentration flux

K

bulk modulus

K_se

bulk modulus at the unsaturated state

k_a

coefficient of pore air permeability

k_h

Henry’s constant (mol/(m³ kPa))

k_w

coefficient of pore water permeability

M

critical state parameter

M_c

mass of the dissolved solute

M_d

parameter which defines the boundary between the hardening and softening

M_f

mass of solution pore water

M_m

material molar mass (g/mol)

M_r

parameter which defines the rotational limit of the yield surface

M_w

mass of solvent

m

Mualem’s constant (Mualem, 1976)

m_dg

mass of dissolved gas

n

porosity

n_E

parameter for adjusting the rate of dilatancy development

p′

effective mean stress

p_a

pore air pressure

$pa0$

atmospheric pressure

$pc′$

effective mean stress at the pre-consolidation state

$psat′$

effective mean stress at the pre-consolidation state under saturated conditions

p_w

pore water pressure

R

gas constant (J/(K mol))

S_e

effective degree of saturation

S_r

degree of saturation

s

suction

T

absolute temperature (K)

t

time

v_g

velocity of the gas phase

v_s

velocity of the solid phase

v_w

velocity of the fluid phase

$v˜g$

relative velocity of pore gas

$v˜w$

relative velocity of pore water

x_α

position vector of material point of the α phase

α

similarity centre of the subloading surface

γ

mass of the dissolved solute in the saturated dissolution per unit mass

ϵ

strain tensor

ϵ^e

elastic component of the strain tensor

$ϵve$

elastic component of volumetric strain

ϵ^p

plastic component of the strain tensor

$ϵdp$

plastic component of the deviator strain tensor

$ϵvp$

plastic component of volumetric strain

$η¯$

modified stress ratio tensor

η*

generalised deviator stress ratio

κ

swelling index

λ

compression index

μ

parameter which controls the contribution of the hardening/softening due to shear

ν′

Poisson’s ratio in terms of the effective stress

π_α

internal interaction force working to α phase

$ρα(xα,t)$

density of the α phase itself

$ρ¯α(xα,t)$

density of the α phase in the whole mixture

σ

total stress tensor

σ′

effective stress tensor

σ^N

net stress tensor

$σSr$

stress term tensor arising from the change of the degree of saturation

ρ_dg

density of the substantial part of the air dissolved in the liquid phase

$ρ¯dg$

density of the dissolved air per unit volume of the unsaturated soil

ρ_g

density of pore air (gas)

χ

Bishop’s parameter

If the construction of earth structures is regarded as an artificial mechanical action using soil materials, then unsaturated soil mechanics is the basic logical tool guiding the thinking process. According to Sheng (2011), the following three points should be considered in the theoretical framework for unsaturated soil mechanics: (a) volume change behaviour associated with suction or saturation change, (b) shear strength behaviour associated with suction or saturation change and (c) hydraulic behaviour associated with suction or saturation change. Points (a) and (b) are considered in the constitutive equation, described as a relation between strain and effective stress. The expression of effective stress is another key point in describing the mechanical behaviour of unsaturated soils. The Bishop-type equation, which can be regarded as an extension of Terzaghi’s equation for saturated soils, is also widely employed. Furthermore, many constitutive equations for unsaturated soils have been proposed since the pioneering work by Alonso et al. (1990). Constitutive modelling for unsaturated soils is reviewed in state-of-the-art reports, as exemplified by the publications by Gens (1996), Wheeler and Karube (1996), Kohgo (2003), Gens et al. (2008), Sheng and Fredlund (2008), Sheng et al. (2008) and Cui and Sun (2009), among others. Point (c) is expressed by the soil-water retention characteristic (SWRC) curve, which is formulated as the dependency of degree of saturation on suction. Since the mechanical behaviour of unsaturated soils depends on the degree of saturation – for example, as reported by Wheeler et al. (2003) – the implementation of SWRCs in describing the mechanical behaviour of unsaturated soils is quite an important issue. Almost all of the models of SWRCs are developed by referring to the works of Brooks and Corey (1964), van Genuchten (1980), Campbell (1987), Kosugi (1994) and Fredlund and Xing (1994), among others. Under these theoretical frameworks, many applications to geotechnical problems are made in the field of engineering – for example, the studies by Jommi (2013) and Iizuka and Tachibana (2017).

This paper presents some trials to extend the theory of unsaturated soil mechanics to applications to boundary value problems. After summarising the theoretical framework of unsaturated soil mechanics based on the three-phase mixture theory, unsaturated soil mechanics is understood simply as a coupled formulation of a deformation problem and two seepage problems. This articulation highlights the constitutive equation in the deformation problem with the use of Darcy’s law in the dynamics of pore water and pore air flow.

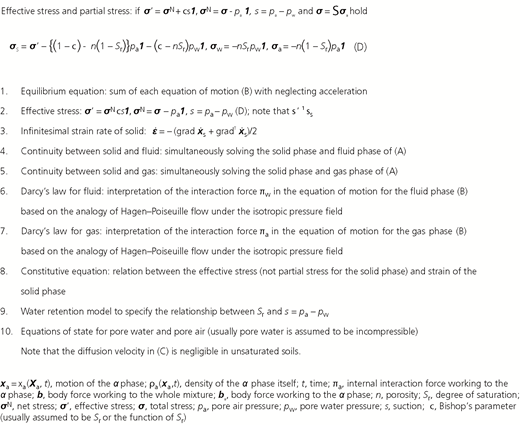

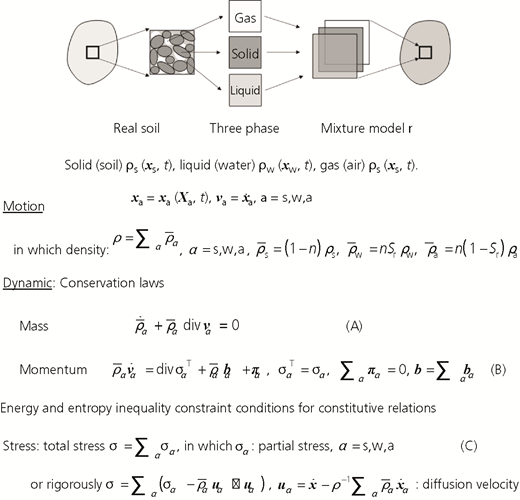

The three-phase mixture theory is summarised in Figure 1. Governing equations are determined from the conservation laws for each phase with respect to the mixture. The stress acting on the mixture is balanced with the partial stresses acting on each phase, and the motion (deformation) of each phase is determined through the interaction forces between the phases – that is, in the case of a three-phase mixture, the motion (deformation) is determined in a field consisting of three mass conservation equations, three equations of motion and stress symmetry and three constitutive relational equations.

In soil mechanics, the stress component that contributes to the deformation of the structural skeleton of the soil is called the effective stress, and traditionally it originated from Terzaghi’s equation for the saturated soil. In the case of unsaturated soils, Bishop’s equation, which can be regarded as Terzaghi’s extension, is widely used (Bishop, 1960). The ‘effective stress’ is accepted as a stress component that effectively governs the deformation, based on interpretation of the experimental effects of pore water pressure and pore air pressure on the mechanical behaviour of unsaturated soils. Therefore, as summarised in Figure 2, the stress which describes deformation of the soil skeleton of unsaturated soils is different from the partial stress on the solid phase. It is described as a form of ‘effective stress’, inclusive of the influences of other partial stresses. Also, from the three mass conservation laws, two independent continuity conditions are derived. Moreover, from the momentum conservation law, the equation of motion for unsaturated soils as the overall mixture is derived by assuming that the relative velocities of pore water and pore air to the soil skeleton are sufficiently small (Noda and Yoshikawa, 2015; Uzuoka and Borja, 2012). The governing equations of the movement of pore water and pore air are derived as a function of a priori introduced Darcy’s law by assuming the similarity of the pore fluid and pore air flow to the Hagen–Poiseuille flow through a pipe (de Boer, 1998; Nishimura, 1999).

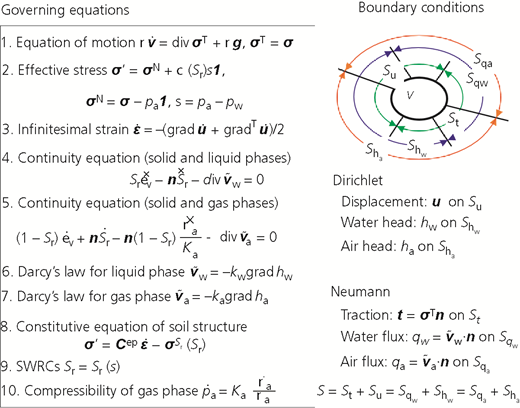

The SWRC equation can be regarded as an expression that determines the composition ratio of each phase of the unsaturated soil, whereby the number of governing equations matches the number of unknown variables necessary to describe the mechanical behaviour of unsaturated soils. Then, the boundary value problem to describe the mechanical behaviour of unsaturated soils is summarised in Figure 3. The deformation of unsaturated soils is described by the constitutive equation into which the mechanical interactions between phases are integrated. Also, it should be noted that, following the convention of soil mechanics, infinitesimal strain is employed, and the stress and the strain are positive on the compression side.

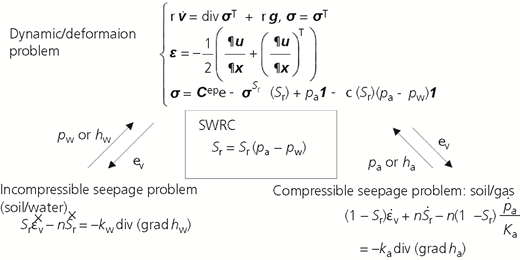

The soil, water and air coupling formulation can be organised as shown in Figure 4, consisting of a deformation problem and two seepage problems. In this case, the SWRC is responsible for determining the degree of saturation as a mediator among these problems. Conscious of such a theoretical structure, it is easy to propose which part of the model should be improved when considering a given physical phenomenon. Furthermore, in consideration of a future computer environment for large-scale, wide-area and high-resolution computation using supercomputers and general-purpose graphics-processing units, it would become advantageous to solve the boundary value problem separately as much as possible, since an integrated system such as the Integrated Earthquake System (e.g. Hori et al., 2006) under which various kinds of simulations can be interactively handled is developed. This would facilitate the use of reliable existing simulation codes for each problem that have been well customised to be suitable to parallelised computing systems. Considering such a change in the computer environment, an attempt to solve the soil and water coupling problem by separating the deformation problem and the seepage problem was made by Takeyama et al. (2019).

In this paper, the elasto-plastic constitutive model proposed by Ohno et al. (2007) is employed in the deformation problem. This model is called the ‘S_e-hardening model’ and is characterised by the strain hardening/softening rule in the unsaturated state, formulated by a function of the effective degree of saturation, $Se=(Sr−Sr0)/(1−Sr0)$⁠. In this, S_r is the degree of saturation and the subscript 0 denotes the value at the driest state, where only meniscus water around the soil particle remains.

The yield function is described as

in which λ is the compression index; κ is the swelling index; M is the critical state parameter introduced in the Cam-Clay model; p′ is the effective mean stress; $psat′$ is the effective mean stress at the pre-consolidation state under the fully saturated condition; e is the void ratio; e₀ is the void ratio at the reference; $ϵvp$ is the plastic component of volumetric strain; η* is the generalised deviator stress ratio originally introduced by Sekiguchi and Ohta (1977) to describe the dilatancy behaviour due to deviator stresses; and n_E is a parameter to adjust the rate of dilatancy development, as described by Ohno et al. (2007, 2013). In this model, the yielding effective mean stress $pc′$ at the unsaturated state is assumed as

and

in which the parameter ξ determines the degree of the effect of unsaturation on the pre-consolidation stress and a and n_s are fitting parameters to adjust it.

In the stress and strain expression, the effective stress can be described using the elastic component of strain as

and

in which K is the bulk modulus; $KSe$ is the bulk modulus at the unsaturated state; G is the shear modulus; ν′ is Poisson’s ratio in terms of the effective stress; C^e is the elastic stiffness tensor; 1 is the second-order identity tensor; A is the fourth-order deviatoric tensor defined by A = I − (1/3) (1 ⊗ 1); and I is the fourth-order identity tensors. The stress–strain relation is derived based on the associated flow rule as

Thus, a concrete description of the constitutive equation of the soil skeleton is provided, where the second-order stress term tensor arising from the change of the degree of saturation in Figure 3, $σSr(Sr)$⁠, is expressed as the function of the effective degree of saturation as $σSr(Se)$⁠.

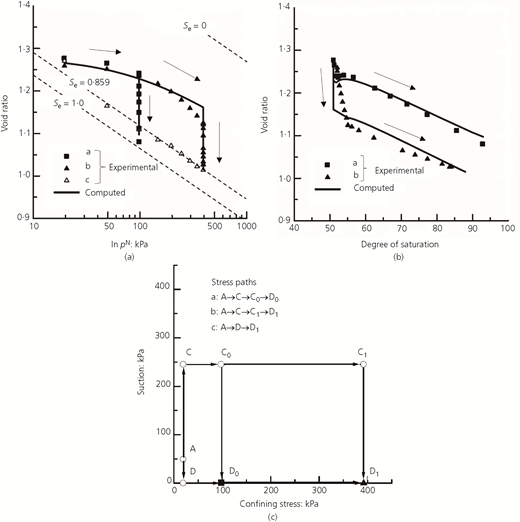

This model can seamlessly describe the mechanical behaviour of soils from the unsaturated to the fully saturated state. In the fully saturated state, it is automatically reduced to the type of Cam-Clay model for saturated soils. In this sense, it is an extension of the Cam-Clay model for the unsaturated state. A comparison between experimental data and computed results by this model is shown in Figures 5(a) and 5(b). The experiment for unsaturated soils was performed using the triaxial apparatus by Kato (1998), in which suction and confining stress are applied to a compacted specimen, as shown in Figure 5(c).

This constitutive model can be easily extended to a dynamic problem under seismic loading conditions by introducing the subloading surface and rotational hardening concepts proposed by Hashiguchi (1980, 1989). The extended yield function is described as

in which $D¯$ is the dilatancy coefficient proposed by Shibata (1963) and has the relation with M as $D¯=(λ−κ)/[M(1+e0)]$⁠. The modified effective stress is defined as $σ¯′=σ′−(1−R)α$⁠, in which α is the similarity centre of the subloading surface. In the case that the similarity centre is set to be the origin, α = 0 is held. The modified mean effective stress and the modified generalised stress ratio are defined as

in which $η¯$ is the modified stress ratio tensor determined by dividing the modified stress deviator $s¯$ by $p¯′$⁠. The evaluation law of α and η_e are given as

in which $ϵdp$ is the plastic component of deviator strain; c_α is the parameter which controls the moving rate of the similarity centre; b_r is the parameter which controls the rotational rate of the yield surface; and m_r is the parameter which defines the rotational limit of the yield surface.

Castro (1969), Tatsuoka (1972) and others reported that the hardening of a sandy soil is caused not only by plastic volumetric change, but also by plastic shear distortion. Hashiguchi and Chen (1998) proposed the hardening/softening law due to shearing. The evaluation law of the hardening parameter H is given as

in which μ is the parameter which controls the contribution of the hardening/softening due to shear. M_d is the parameter which defines the boundary between the hardening and softening.

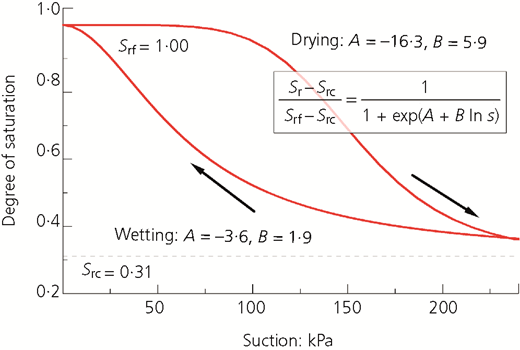

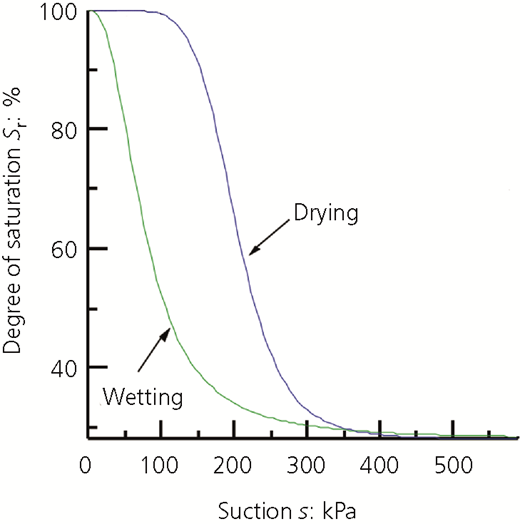

In mathematical modelling to solve the boundary value problem, the SWRC model proposed by Kawai et al. (2007a) is also employed. In this model, the drying and the wetting processes in the SWRC are separately formulated using logistic curves in the space of the degree of saturation and suction to describe the hysteresis loops with suction change. The permeability of pore water in the unsaturated state is modelled to decrease with desaturation after the paper by Mualem (1976).

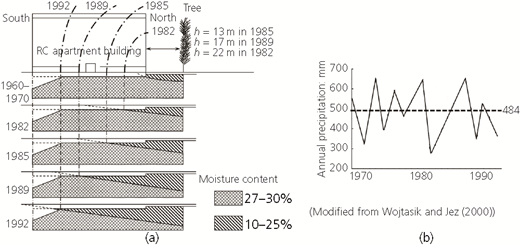

Wojtasik and Jez (2000) reported that absorption by trees caused differential settlement of the ground surface and the development of cracks in an adjacent concrete apartment building. Figure 6 shows the development of cracks in an adjacent concrete building next to a grouping of trees. Cracks gradually appeared in the building, which was built in 1961. After the trees were cut down in 1993, crack progression halted. According to the report, the soil foundation originally had a high moisture content, but the water content was diminished when a soil investigation was carried out in 1986, as shown in Figure 6. It was concluded that absorption by trees had caused a decrease in the water content of the foundation, resulting in differential settlement of the ground.

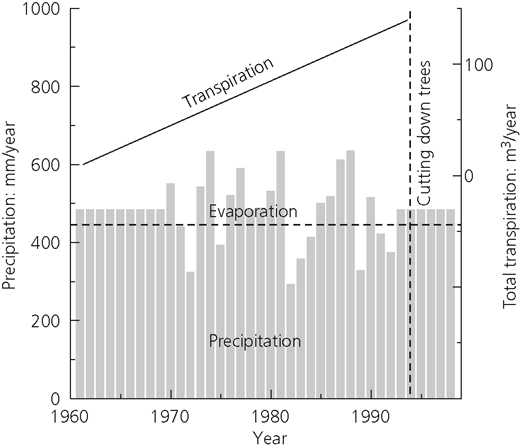

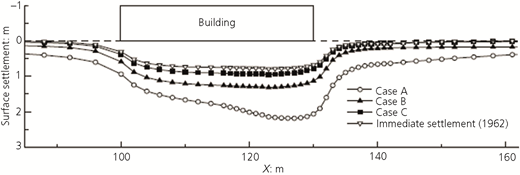

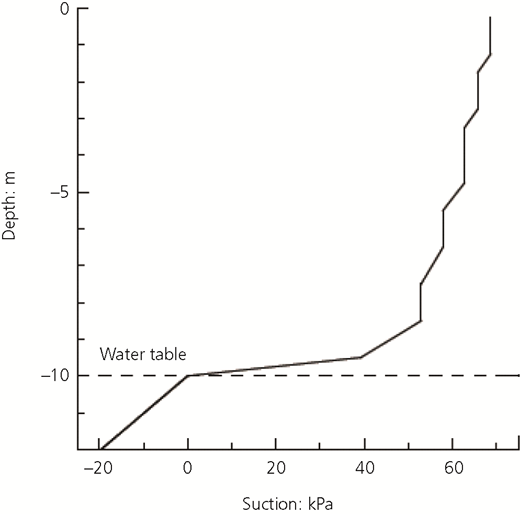

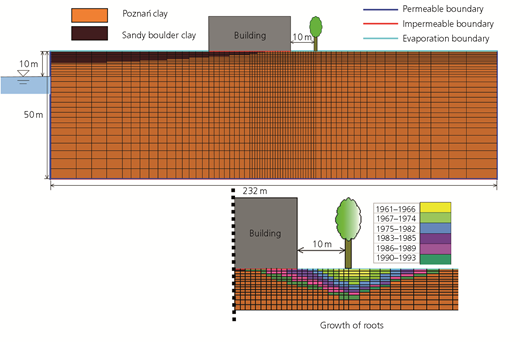

A numerical simulation was carried out to realise quantitatively the effect of plants on differential settlement (Kawai et al., 2008). Figure 7 represents the finite-element mesh used in the computation. The foundation soil consists of contractile Poznań clay, and its surface is covered by sandy boulder clay. The planted trees are aspens, willows and maple, and the apartment building was constructed 10 m away from the trees. To investigate the effects of these trees, numerical simulation modelled the annual underground root growth by extending the finite-element region, as shown in Figure 7, in which the growth of root system of trees under the ground is expressed by contour. In this, the pore water in the root area is drained to correspond to the amount of transpiration from trees, estimated from climate conditions at the site by the Penman model (Penman, 1948). The groundwater table was reported to be 10 m below the ground surface, and the foundation soil above the water table is treated as in the unsaturated state. The assumed SWRC curve is shown in Figure 8. The average amount of annual precipitation at the site and the annual evaporation, also estimated by Penman model, are imposed on the ground surface as hydraulic boundary conditions. The estimated values from 1960 to 2000 are shown in Figure 9. The initial suction distribution in the unsaturated region above the groundwater table is assumed to be as shown in Figure 10. Here, since the distribution of the degree of saturation above the groundwater table can be estimated from the distribution of water content (see Figure 6) under the assumption that the void ratio is constant, the initial suction distribution can be estimated from the SWRC (the average value of wetting and drying curves in Figure 8 was used). For reference, the influence of initial and boundary conditions in the unsaturated ground on its mechanical behaviour is numerically examined by Tanaka et al. (2010a, 2010b).

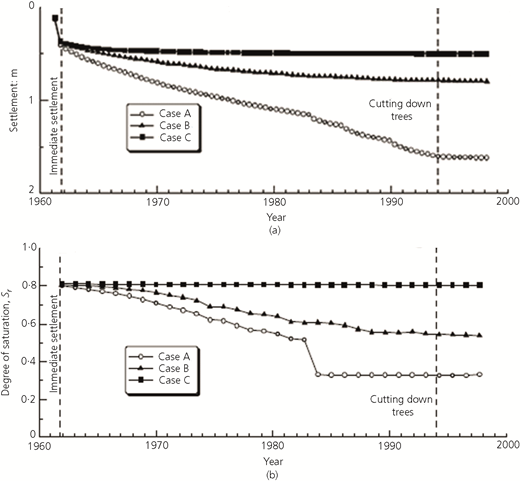

Three cases are compared: the case where precipitation, transpiration through vegetation and evaporation from the ground surface are considered (case A); the case where precipitation and evaporation are considered, but transpiration is not taken into account (case B); and the case where precipitation, transpiration and evaporation are not considered at all (case C). Figure 11 shows the computed surface settlement and change in the degree of saturation with time at the right corner of the building. In case A, the degree of saturation decreases with year, which is consistent with the occurrence of the settlement. The degree of saturation was found to drop suddenly in 1983, likely because tree roots reached under the building around 1983. Figure 12 indicates the surface settlement profile under the building in 1998. These findings showed that trees greatly influenced the occurrence of differential settlement, as seen in comparison to the initial settlement due to the self-weight of the building. There is no record of monitoring the settlement in this site to compare with the computed results, but at least it can be said that computed result considering the influence due to growth of trees (case A) well explains the development of differential settlement and is consistent with the occurrence of cracks in the apartment building, which was observed in the site.

For reference, the differential settlement of an unsaturated compacted soil due to rainfall is also discussed by Kawai et al. (2007a) based on the unsaturated soil mechanics and the influence of water absorption by vegetation on the deformation of an unsaturated ground was investigated Kawai et al. (2007b).

In this section, a trial to apply unsaturated soil mechanics to the salt damage problem is presented. In the salt damage problem, it is necessary to consider dissolution of salt in groundwater and its advection/diffusion. The mathematical modelling of transfer of water-soluble material in the deformable saturated/unsaturated ground is discussed by Nomura et al. (2011). In this section, its theoretical framework is reviewed and its application to the salt damage problem is presented.

To apply unsaturated soil mechanics to the salt damage problem, the following are assumed.

• There is no volume change of pore water due to dissolution of salt.

• Diffusion of dissolved salt follows Fick’s law.

• The permeability coefficient does not change, even with dissolution of salt.

• The salinity does not affect the mechanical constitutive relationship.

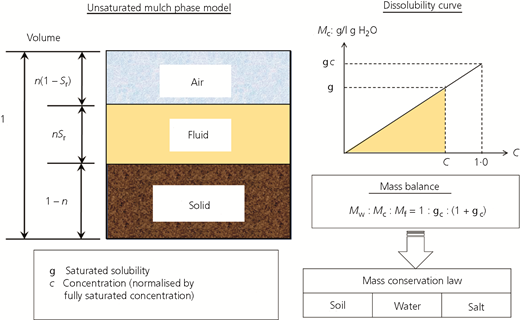

The mass change due to dissolution of salt is explained in Figure 13. When γ is defined as the mass of the dissolved solute in the saturated dissolution per unit mass and c is the concentration defined as the mass of the dissolved solute normalised by the mass of the dissolved solute in the saturated dissolution, the ratio of the mass of the dissolved solute (M_c) and the solution pore water (M_f) to the solvent (M_w) is expressed as M_w:M_c:M_f = 1:γc:(1 + γc). Therefore, the continuity equation considering the dissolution of the salt is derived from the mass conservation law as

The seepage equation in Figure 4 is replaced by Equation 16. Likewise, a diffusion/advection equation is derived as

Both the diffusion/advection equation and the boundary conditions

are added to the governing equations, in which S_r is the degree of saturation; n is the porosity; $v˜w$ is the relative velocity of pore water; J is the concentration flux; D is the diffusion coefficient; $c¯$ is the known value of salt concentration on the boundary; n is the unit normal vector on the boundary surface, S_Q; S_c and $Q¯$ are known values of the total flux on the boundary surface, S_Q.

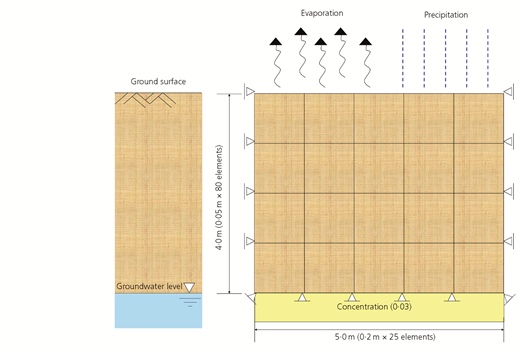

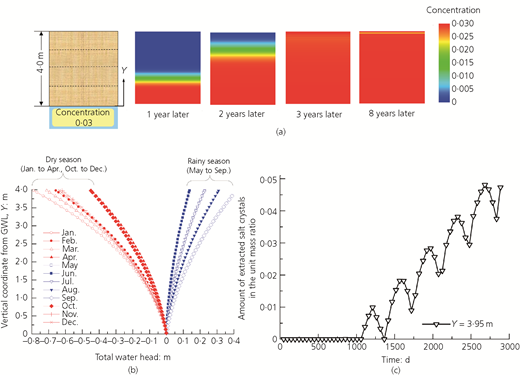

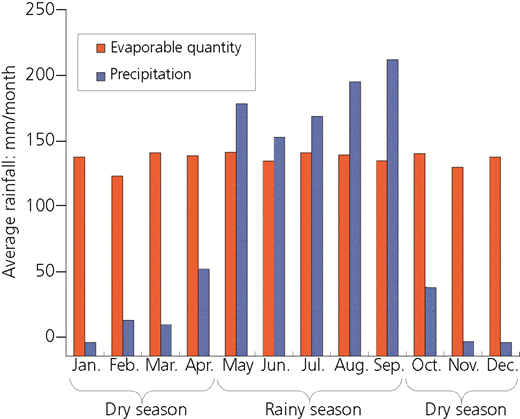

An application case of this problem follows. The unsaturated soil shown in Figure 14 is considered, in which the groundwater is saline with a concentration of 0·03 (3%), and its water level is located 4·0 m below the ground surface. When evaporation and rainfall repeatedly act on the ground surface, the transfer of salinity to the unsaturated soil above the groundwater level is computed. Herein, based on the climate data in the north-eastern part of Thailand, the monthly average evapotranspiration from the ground surface estimated from the Penman model (Penman, 1948) and the monthly average rainfall (Figure 15) are repeatedly input on the ground surface for 8 years as boundary conditions. The ground employed in the computation is assumed to be a soft clayey unsaturated soil, in which the compression index λ = 0·06, the swelling index κ = 0·01, the critical state parameter M = 1·33, the Poisson’s ratio v′ = 0·30, the permeability coefficient k_w = 1·0 × 10⁻⁴ cm/s and the Mualem’s constant (Mualem, 1976) m = 0·30. The SWRC of the ground is assumed as shown in Figure 16. The computation results are presented in Figure 17. Salinity concentrations rise towards the ground surface year by year (Figure 17(a)). The monthly total water head distributions in the ground are shown in Figure 17(b). An upward hydraulic gradient appears in the dry season, and in the opposite direction, a downward hydraulic gradient develops in the rainy season. Throughout a year, the upward hydraulic gradient seems dominant to the downward hydraulic gradient, resulting in salt deposition on the ground surface within 3 years, as shown in Figure 17(c). Here, the value on the vertical axis in Figure 17(c) indicates the ratio of the solute (salt in this case) exceeding the saturated dissolution amount against the dissolved solute in the saturated dissolution.

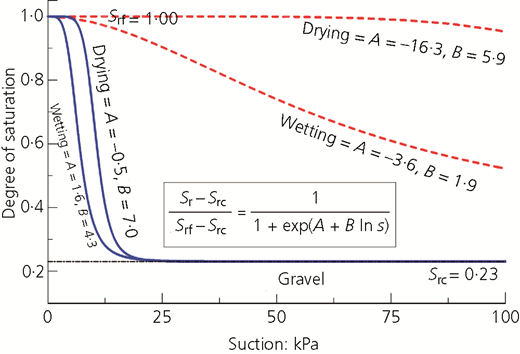

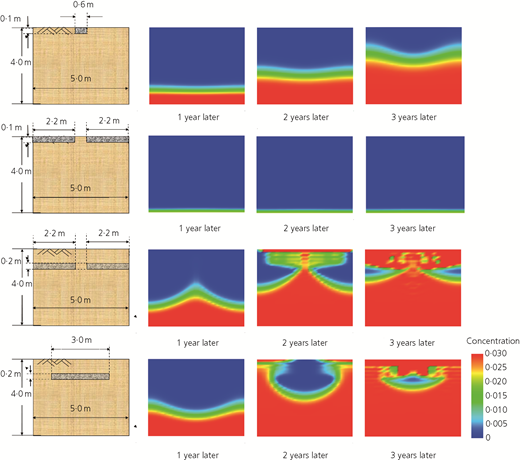

To inhibit such salt damage, a mulching technique is examined where gravel is placed on the ground surface, presenting a capillary barrier. Assuming the mulch layer’s permeability coefficient is eight times higher and its SWRCs poorer than those of the ground surface, as shown in Figure 18, Figure 19 presents the effects of mulching using different layering conditions. In this, rainfall and evaporation inputs to the ground surface are the same as in Figure 15.

For reference, the solute transfer during consolidation of the ground based on the solid–fluid–solute coupling model is discussed by Nomura et al. (2018).

The physical phenomenon in which dissolved air in pore water vaporises is described by Henry’s law. This section considers incorporating this phenomenon into the soil, water and air coupling problem. However, in order to simplify the problem, the following are assumed.

• Dissolved gas has no volume in the liquid phase and does not change the volume of the liquid phase, even if it dissolves.

• Temperature change accompanied by dissolution is not considered.

• The dissolution rate of the gas is extremely quick, and the pore water reaches a saturated state immediately, with the amount of dissolved gas proportional to pressure (Shuurman, 1996).

• The state change of pore water itself is not considered.

Henry’s law can be described for the solid, fluid and gas three-phase mixture as

in which p_g is the gas pressure (kPa); k_h is Henry’s constant (mol/(m³ kPa)); m_dg is the dissolved gas mass (g); and V_w is the volume of the liquid phase (m³). Then, the density of dissolved air is expressed from Equation 19 as

where ρ_dg is the density of the substantial part of the air dissolved in the liquid phase and $ρ¯dg$ is the density of the dissolved air per unit volume of the unsaturated soil. Since $ρ¯dg=nSrρdg$⁠, the mass conservation law of dissolved air and pore air contained in the unsaturated soil is described as

Substituting $ρ¯g=n(1−Sr)ρg$ and $ρ¯dg=nSrρdg$ into Equation 21, the following is obtained

Therefore, the continuity equation is expressed from Equation 22 using $ρdg/ρg=kh(RT/Mm)=Adg$ as

Equation 23 provides a governing equation as the continuity condition in the soil, water and air coupling problem, considering Henry’s law. With this, the compressible seepage equation in Figure 4 is replaced by Equation 23. Here, ρ_g is the density of pore air (gas); $pa0$ is the atmospheric pressure; M_n is the material molar mass (g/mol); R is the gas constant (J/(K mol)); T is the absolute temperature (K); $v˜w$ is the relative velocity of pore water (= nS_r(v_w − v_s)); $v˜g$ is the relative velocity of pore gas (= n(1 − S_r)(v_g − v_s)); and v_s, v_w and v_g are the velocity of the solid phase, the velocity of the fluid phase and the velocity of the gas phase, respectively.

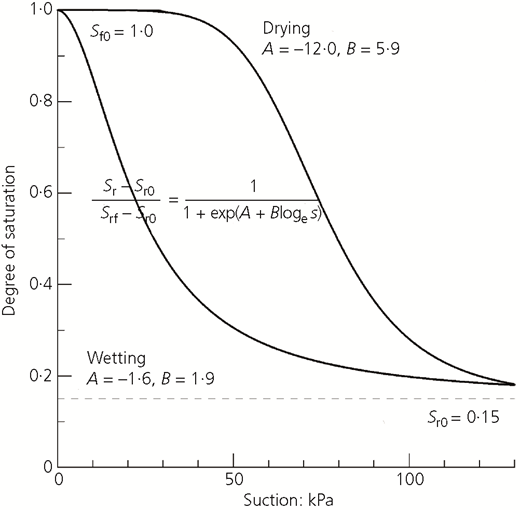

As a demonstration, the soil sampling from the ocean floor is considered. Even in the usual sampling from soils on land, the effect of vaporisation of dissolved gas on the soil specimens has been noted – for example, in the publications by Fujishita (1965), Matsumoto et al. (1969) and Tsui and Helfrich (1983). In the case of soil sampling from the deep ocean floor, the influence of vaporisation of the gas dissolved in the pore water on the desaturation and the effective stress change in the soil specimens cannot be ignored. In this example, this influence is examined through numerical simulations following the paper by Sugiyama et al. (2018). Here, Henry’s constant, k_h, is estimated using dissolved pore water gas data obtained from the Okhotsk seafloor and reported by Yamashita et al. (2013, 2014). The input parameters used in the computation are shown in Table 1.

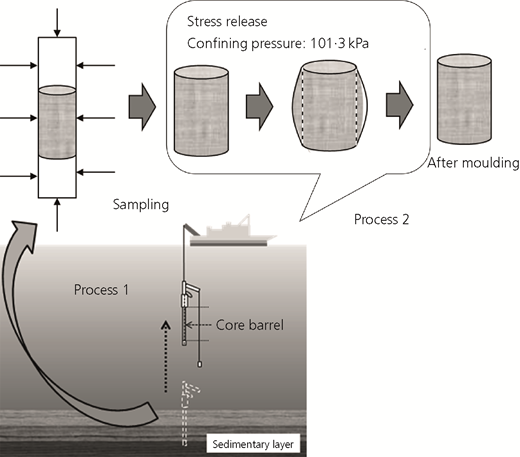

Figure 20 summarises the sampling process, which is divided into two phases. One is the process of uplifting the core barrel (process 1), and another is the process of extrusion of the soil specimen from the core barrel (process 2). The mechanical disturbance in process 2 due to trimming and moulding of the specimen is out of scope here. In process 1, the lateral deformations of the soils are fixed as boundary conditions and both the upper and lower edges of soils in the core barrel, the length of which is assumed to be 1·0 m, are released under permeable conditions for both pore water and pore air to balance with the atmosphere. In process 2, every element extruded from the core barrel is unloaded by applying external forces to simulate the stress release to balance with the atmosphere (101·3 kPa). Here, since process 2 is considered to occur rapidly compared to process 1, impermeable boundaries are assumed for both pore water and pore air. After process 2, the soil specimen is subjected to a shear test (process 3), in which the stress state after process 2 gives the initial condition for the strength testing of the specimen.

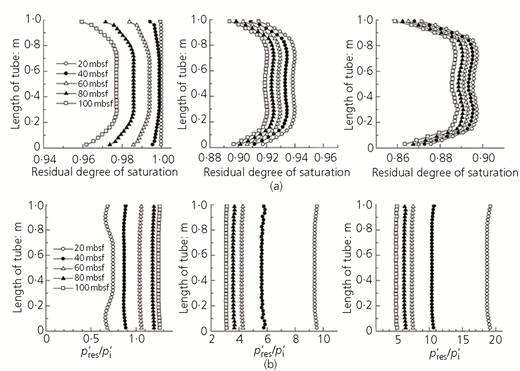

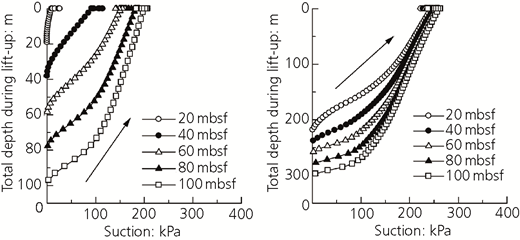

Figure 21 indicates the distributions of the degree of saturation and the residual effective stress ratio in the soil sample in the core barrel after process 1, in which $pres′$ is the residual effective mean stress and $pi′$ is the in situ effective mean stress. The computed cases of sampling from seafloor with a depth of 0 m (equivalent to sampling soil from on land), seafloor with a depth of 200 m and seafloor with a depth of 400 m are compared, in which the unit ‘mbsf’ indicates ‘metres below seafloor’. Five cases of sampling from a depth of 20 mbsf for every 20 m down to a depth of 100 mbsf under seafloor are also compared in each figure. Figure 21(a) shows that desaturation due to the vaporisation of dissolved gas prominently develops in sampling from the deep seafloor. In contrast, this desaturation is not remarkable in the cases of sampling from the relatively shallow ground under the seafloor at 0 m depth. Figure 21(b) also shows that the residual effective stress ratio becomes much larger than 1·0, except in cases of sampling from the relatively shallow ground under the seafloor at 0 m depth. Suction develops greatly with desaturation, and, subsequently, the residual effective stress exceeds the initial in situ effective stress. The suction development at the centre of the specimen during process 1 is shown in Figure 22, which compares the cases of sampling from seafloors with depths of 0 and 200 m. The amount of suction increase due to desaturation with uplifting of the core barrel is considerably large in the cases of deeper sampling from the seafloor and sampling from deeper seafloor.

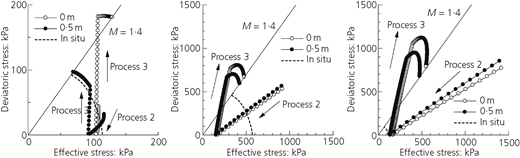

In process 2, since the specimen is extruded from the core barrel and is exposed to the atmosphere, it experiences stress release, resulting in a decrease in the residual effective stress with deformation. The effective stress change during process 2 is shown in Figure 23, in which process 3, used as a reference in the figure, is the shear process to determine strength, such as used in an unconsolidated–undrained test. The three cases of sampling from a depth of 20 mbsf under the seafloor with a depth of 0 m (case 1), sampling from a depth of 100 mbsf under the seafloor with a depth of 0 m (case 2) and sampling from a depth of 20 mbsf under the seafloor with a depth of 200 m (case 3) are compared, in which the effective stresses in the elements positioned at the centre of the core barrel (0·5 m) and at the tip of it (0 m) are shown. Here, ‘In situ’ in the figure indicates the ideal case that the soil element is sheared without any sampling disturbance during processes 1 and 2. The residual effective stresses greatly decrease during process 2 in the cases of deeper sampling from the seafloor (case 2) and sampling from deeper seafloor (case 3). Such decrease in the residual effective stress brings about an overconsolidated state in the specimen. The increase in suction due to desaturation, as shown in Figure 22, and the decrease in residual effective stress due to the stress release, as shown in Figure 23, determine the effective stress state in the specimen after the sampling process. In the cases of deeper sampling from the seafloor and sampling from deeper seafloor, the computation results show that, since the decrease in the residual effective stress is greater than the increase in suction due to desaturation, the specimen becomes heavily overconsolidated. However, in the case of sampling from shallow seafloor with a depth of 0 m (equivalent to sampling on land, as seen in case 1 of Figure 23), desaturation and overconsolidation of the specimen at the centre of the core barrel (0·5 m) do not occur markedly, and both are balanced, which possibly results in an appropriate in situ strength. Although it is necessary to confirm the effective stress changes discussed in this paper through measurement and monitoring, such a large effective stress change is predicted by introducing Henry’s law in the case of sampling from deep seafloor.

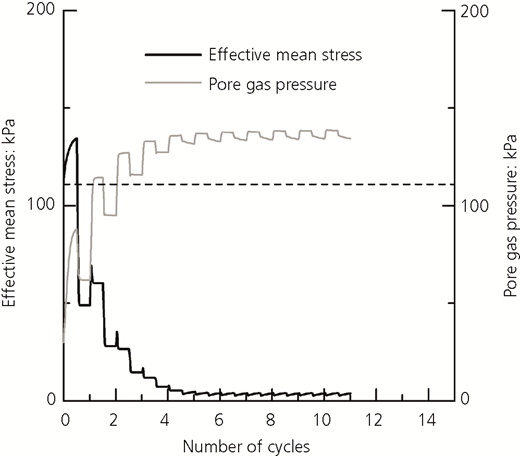

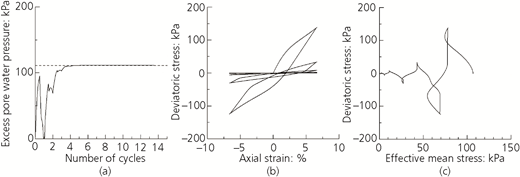

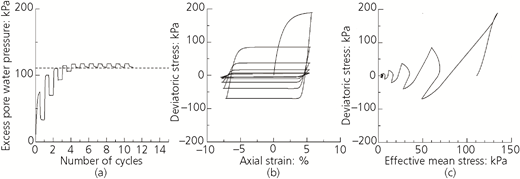

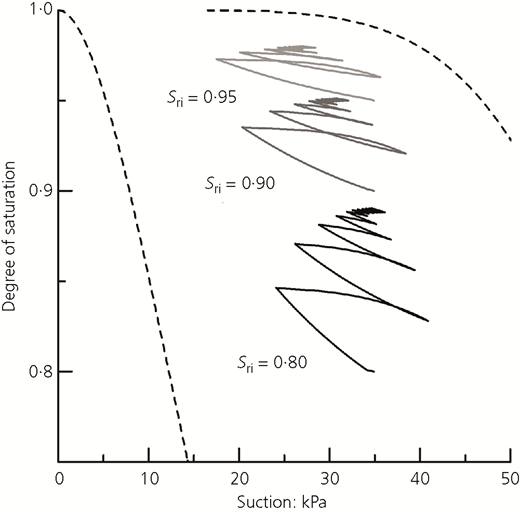

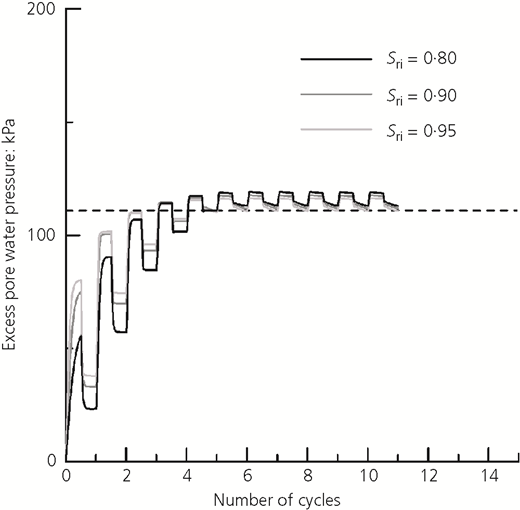

According to reports from surveys and boring data taken at areas of lesser degree of liquefaction after events such as the 1964 Niigata earthquake and the 1995 Kobe earthquake (Great Hanshin–Awaji earthquake) occurred, the lesser liquefaction can be attributed to a de-amplified effect arising from the unsaturated state, which increases the liquefaction strength (strength against liquefaction), according to Nishigaki et al. (2008). Chaney (1978), Yoshimi et al. (1989) and others have also pointed out that liquefaction strength increases as the degree of saturation decreases. In this section, analytical techniques are presented that can quantitatively examine the effect of the degree of saturation on liquefaction strength. The extended S_e-hardening model introduced in the section headed ‘The constitutive model employed in the deformation problem’ with consideration of subloading surface and rotational hardening (Equations 10–15) is employed and the soil, water and air coupling computations are carried out under cyclic loading conditions leading to liquefaction. Constitutive parameters of an assumed sandy soil used in the computation are listed in Table 2. The SWRC curve, considering hysteresis loops between the wetting and drying processes, is also assumed as shown in Figure 24. The repeated loading with an amplitude axial strain of 5% is applied to the soil element under constant lateral pressure and impermeable conditions for both pore water and pore air. Two cases of initial degrees of saturation of 90 and 100% are compared in Figures 25 and 26. In the case of saturated soil, the average effective stress reaches almost 0·0 kPa at the fourth iteration, whereas it seems that the unsaturated soil retains the effective stress, even when repeatedly loaded ten times. Figures 27 and 28 show the effect of the difference in the degree of saturation on suction (Figure 27) and excess pore water development (Figure 28). The degree of saturation converges to a certain value (Figure 27), and the effective stress never becomes zero because the suction remains present. Also, as seen in Figure 28, the excess pore water pressure converges at the sixth loading cycle, regardless of the degree of saturation. Okamura and Soga (2006) and Kazama et al. (2006) proposed that the liquefaction in unsaturated ground occurs when the pore air pressure becomes equal to the initial effective stress. Figure 29 shows the changes in effective mean stress and pore air pressure with cyclic loading, compared with the initial effective stress, as indicated by the broken line in the figure. It is found that the pore air pressure exceeds the initial effective stress when the effective mean stress converges to a non-zero constant value. The aforementioned liquefaction condition seems to underestimate the liquefaction strength of the unsaturated ground.

In this paper, case studies intended to expand the applicability of unsaturated soil mechanics are introduced. The theoretical structure of soil, water and air coupling analysis is discussed as a core system of unsaturated soil mechanics. In general, the governing equation of the soil, water and air coupling problem is thought to be derived deductively from the mixture theory, but it should be noted that assumptions particular to soil mechanics are employed in its derivation. In addition, the soil, water and air coupling problem is composed of a deformation problem and two seepage problems, with the SWRCs playing the role of a mediator between them. The mechanical properties of soils are all aggregated into a constitutive expression in the deformation problem. By clarifying the theoretical structure in this way, an extension of the theory can be easily made.

In this paper, some application examples, which extend the soil, water and air coupling formulations, are presented. In considering the influence of vegetation (see the section headed ‘Application case 1: differential settlement due to planting’), major modification of the theoretical formulation is not necessary, indicating that water absorption, rainfall and evaporation due to vegetation can be handled as boundary conditions. In consideration of advection and diffusion of substances dissolved in an unsaturated soil (see the section headed ‘Application case 2: consideration of the dissolution, advection and diffusion of a substance in pore water’), the seepage equation of pore water is simply replaced by the extended continuity equation and the diffusion equation. As an example, the possible salt damage caused by rainfall and evaporation, as accompanied by climatic conditions and when the groundwater contained the dilute salt, is presented. In the problem of desaturation due to vaporisation of the gas dissolved in the pore water (see the section headed ‘Application case 3: consideration of pore air solution’), the seepage equation for pore air is replaced by the seepage equation considering Henry’s law. As an example, the state change of the soil specimen due to desaturation associated with sampling from the deep ocean floor is discussed. In this case, the effective stress state in the soil specimen after the sampling process is much influenced by the increase in suction due to desaturation and the decrease in residual effective stress due to stress release. In the section headed ‘Application case 4: access to liquefaction problems of unsaturated soil’, an approach to dynamic problems is presented. As an example, the liquefaction resistance of unsaturated soils is numerically examined. The examination in this section is made at the element level under the strain (displacement) control, in which the constitutive equation is numerically solved simultaneously with the continuity conditions and the SWRC equation using the finite-element computation technique.

The authors hope that unsaturated soil mechanics goes beyond geotechnical engineering and will be widely used in many other fields.

The authors acknowledge Dr Katsuyuki Kawai, associate professor of Kinki University, for his contribution to the research results mentioned in this paper.
