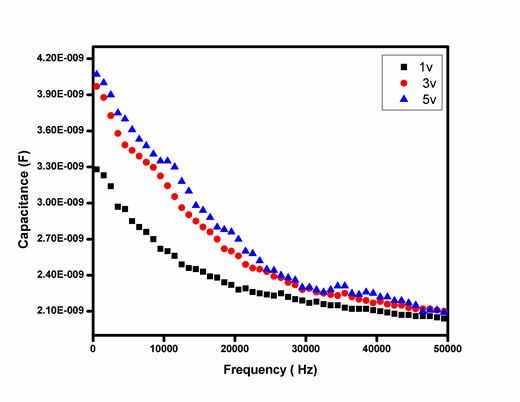

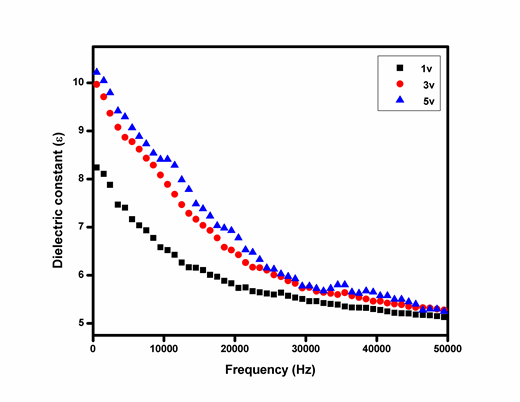

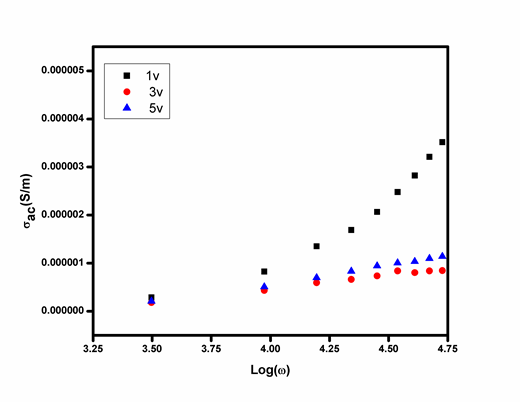

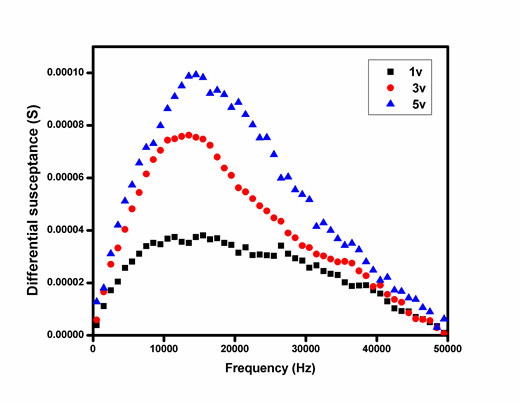

The authors regret that their paper, ‘Characterization and dielectric properties of vacuum-deposited zinc phthalocyanine thin film’ (Kaur M, Kumar R, Dogra R, Arora N and Sharma N (2018), Surface Innovations 6(1–2): 63–70, https://doi.org/10.1680/jsuin.17.00042), contains errors in the data of Figures 7, 8, 9 and 10 and Table 4. The corrected Figures and Table are provided below.
Table 4
AC electrical parameters for ZnPc films
| Applied bias voltage: V | ΔB maxima: Hz | Relaxation time: s | Mobility: m2/(V s) |
|---|---|---|---|
| 1 | 15 348 | 6·5 × 10−5 | 4·38 × 10−9 |
| 3 | 14 015 | 7·1 × 10−5 | 1·33 × 10−9 |
| 5 | 13 660 | 7·3 × 10−5 | 7·81 × 10−10 |
The following line of the Conclusion (p. 69) is also amended as follows
The hole mobility and relaxation time have been determined and found to lie in the range 7·81 × 10−10 – 4·38 × 10−9 m2/(V s) and 7·32 × 10−5 – 6·52 × 10−5 s, respectively.
The authors sincerely apologise for the errors and any inconvenience caused.
