The following figures were printed incorrectly in Geótechnique, 51, No. 1, pages 15–36, New descriptions of plane strain, E. T. R. Dean. A corrected version of this paper is available at www.geotechnique-ice.com.
Fig. 3.

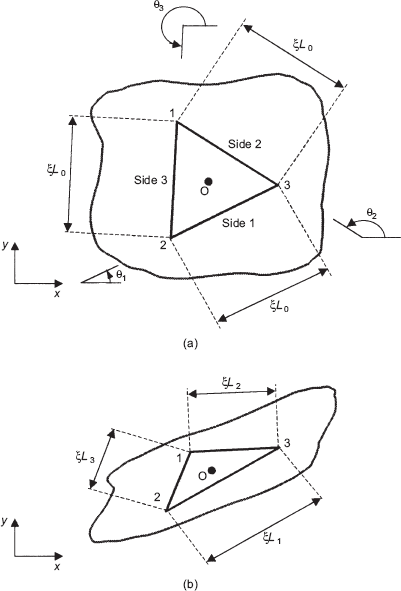

Triangular representations of the same deformation. (a) Initial state. (b) Current state.
Fig. 3.
Triangular representations of the same deformation. (a) Initial state. (b) Current state.
Fig. 14.

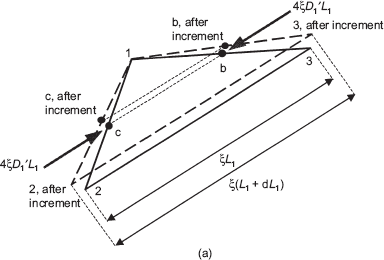

Preliminary interpretations of triangular effective stresses. (a) forces 4ξD′1L1 acting on 123 due to the first triangular effective stress D′1.
Fig. 14.
Preliminary interpretations of triangular effective stresses. (a) forces 4ξD′1L1 acting on 123 due to the first triangular effective stress D′1.
