Centrifuge modelling of building response to tunnel excavation Open Access

Creating urban underground space frequently involves the construction of shallow tunnels underneath highly congested urban areas. These tunnelling activities inherently induce ground movements that cause complex interaction between the adjacent buildings and the ground (Burd et al., 2000). Understanding this interaction is particularly important for masonry buildings, which can be susceptible to damage due to differential settlement, causing non-linear behaviour of both the structure and the soil.

Several case studies (Dimmock and Mair, 2008; Fargnoli et al., 2015; Farrell et al., 2011; Frischmann et al., 1994; Viggiani and Standing, 2001) have shown that tunnelling-induced soil displacements beneath buildings are radically different than for a greenfield site. Computational modelling studies (Franzius et al., 2006; Goh and Mair, 2011; Melis and Rodriguez Ortiz, 2001; Potts and Addenbrooke, 1997; Son and Cording, 2007) identified that the building stiffness plays a key role when investigating the response of surface structures subjected to tunnelling. This finding is supported by the results of centrifuge modelling (Caporaletti et al., 2005; Farrell, 2010; Farrell and Mair, 2012; Taylor and Grant, 1998; Taylor and Yip, 2001), which captures the correct self-weight stress–strain behaviour of the soil and the surface structure.

Although these centrifuge tests provided useful information on the general behaviour of a simplified structure during the tunnel excavation procedure, they made no attempt to investigate the influence of building features; structural details such as a realistic building layout, facade openings and foundations were not considered. The main reason for this limitation is that in centrifuge modelling large-scale factors of between 1:20 and 1:100 are used (Knappett et al., 2010). Replicating building details at a small scale is a challenge, and centrifuge modelling research so far has focused on replicating the building stiffness rather than other important building features.

Likewise, recent investigations at 1g have not included building details such as facade openings (Al Heib et al., 2013; Shahin et al., 2011) or the three-dimensional (3D) building layout (Giardina et al., 2012; Kim et al., 2006; Shahin et al., 2011). In addition, these 1g investigations inherently have limitations in replicating realistic soil–structure interaction. Ignoring building details can result in uncertainty when assessing tunnelling effects on nearby structures, which has been highlighted in computational studies (Giardina et al., 2015b; Melis and Rodriguez Ortiz, 2001; Pickhaver et al., 2010; Son, 2015; Son and Cording, 2005). However, there is a lack of experimental data to evaluate computational models.

Advances in 3D printing (3DP) have opened the door to an array of applications in civil engineering research (DeJong and Vibert, 2012; Feng et al., 2015; Liang et al., 2013, 2015). The main advantage of using 3DP to centrifuge modelling is that small-scale models can be fabricated without missing essential details. For instance, Liang et al. (2015) have used 3D printed root models when centrifuge modelling the seismic performance of vegetated slopes.

This paper presents a centrifuge modelling procedure to study representative building models subject to tunnelling-induced ground movements, such as discussion of modelling details, modelling effects and validity compared with previous research. Details and the material properties of the 3D printed buildings are presented, setting a precedent for modelling surface structures above a tunnel in a geotechnical centrifuge. Modelling effects and boundary effects are discussed before comparing example results of the tunnel excavation simulation to previous literature. These results demonstrate good agreement and realistic replication of tunnel–soil–structure interaction. Thus, the introduced modelling procedure provides a valuable framework to further explore the influence of building features on the response of structures to tunnelling subsidence.

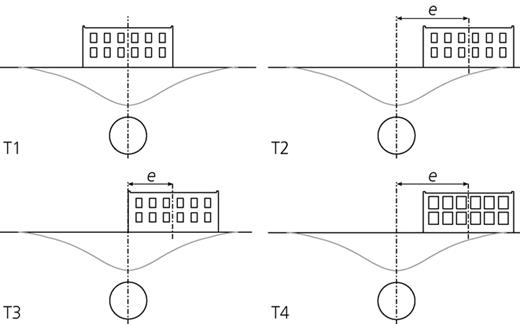

A series of centrifuge tests (Figure 1) on complex building models were performed on the geotechnical centrifuge at the University of Cambridge (Schofield, 1980). The tests differ in the location of the building model relative to the tunnel and the amount of facade openings (Table 1). The experiments were conducted at 75g and a corresponding scale factor of 1:75. The adopted strong box, soil model, model tunnel and model dimensions are based on that used by Farrell (2010). Marshall et al. (2012) have demonstrated that this experimental set-up resembles greenfield displacements for tunnels in sand. Recently, Farrell (2010) employed this experimental set-up to study the response of aluminium, microconcrete and masonry beams to tunnelling subsidence (see also Farrell and Mair, 2012; Giardina et al., 2015a). Due to the similar tunnelling scenario modelled, these experiments provide a unique database to compare with the research on more representative building models described herein.

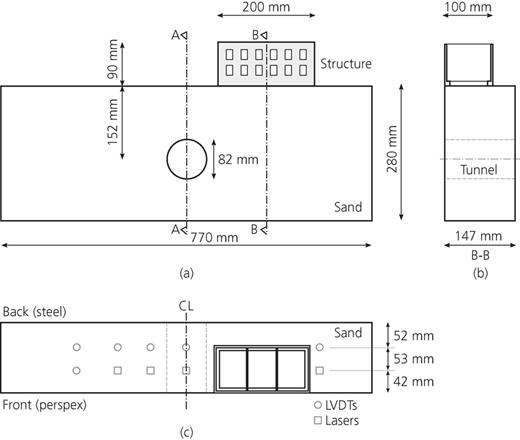

Figure 2 illustrates that the centrifuge model replicates a tunnelling scenario with a cover-to-diameter (C/D) ratio of 1·37. A relatively shallow tunnel was modelled because building damage decreases with tunnel depth (Son, 2015; Vu et al., 2015). The front boundary of the strong box is a Perspex window while the base, side-walls and the back wall are made out of steel.

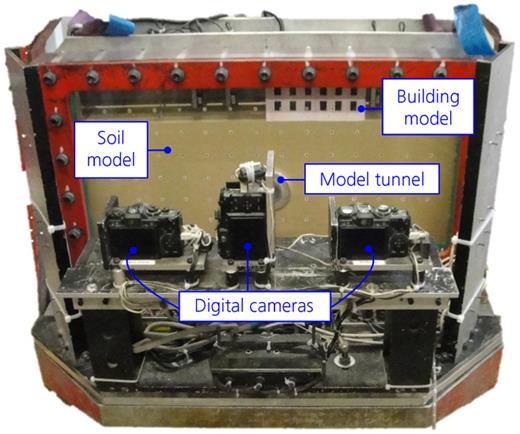

Figure 3 shows that three digital cameras (Canon PowerShot G10) were installed in front of the Perspex window to track ground and structure displacements using digital image correlation (DIC) and the software GeoPIV (White et al., 2003). In addition, laser displacement sensors (Baumer Electric OADM 12I6430/S35A) and Solartron linear variable differential transformers (LVDTs) monitored surface soil settlements (Figure 2(c)). These surface settlement instruments enable a comparison to the GeoPIV results and thus provide an adequate degree of redundancy. Furthermore, boundary effects in the Perspex plane, caused by friction between the Perspex and the soil, can be quantified by comparing the data of the lasers and LVDTs with the GeoPIV results.

The tunnelling process is modelled by reducing the tunnel diameter to simulate schematically a ground loss (Farrell, 2010; Jacobsz, 2002; Loganathan et al., 2000; Mair et al., 1984; Marshall et al., 2012; Potts, 1976; Taylor and Grant, 1998; Taylor and Yip, 2001; Vorster, 2002). Figure 4 illustrates the model tunnel, which consists of a 1 mm thick Latex membrane with a diameter of 70 mm and a brass mandrill with an outer diameter of 60 mm. The membrane is sealed to the circular end pieces of the brass mandrill (diameter of 80 mm) using a wire, and the cavity between the brass cylinder and the membrane is filled with water until a tunnel diameter of 82 mm is obtained. To restrain the position of the model tunnel, the tunnel is fixed to the front and the back walls with brass fitting rings. To ensure uniform settlement along the length of the tunnel, including at the front and back of the soil box, the end of the model tunnel was set within a recess of the Perspex window (Figure 4(a)).

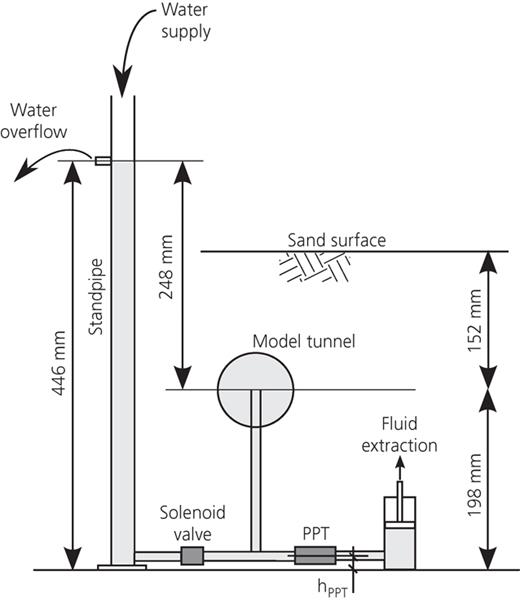

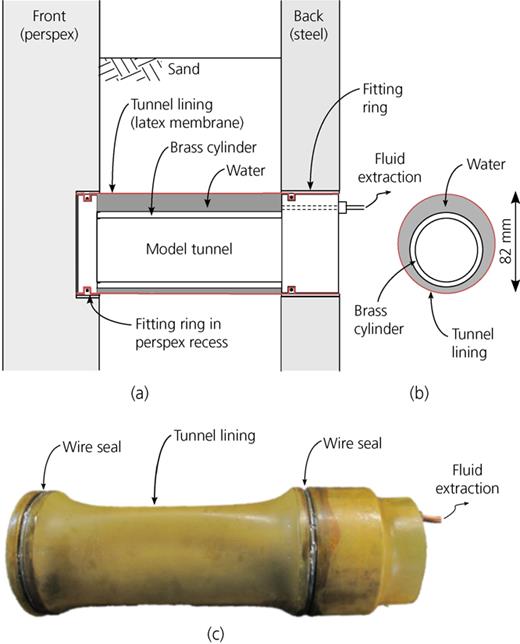

The tunnel diameter is reduced by withdrawing water from the tunnel using a tunnel control system (Figure 5). This system was first reported by Jacobsz (2002) and consists of a standpipe, a solenoid valve, a linear actuator that moves a piston of a water-filled sealed cylinder, a pore water pressure transducer and 4 mm outer diameter copper pipes to connect these individual parts to the model tunnel. The tasks of the tunnel control system are twofold. First, during the acceleration of the centrifuge the standpipe is connected through the solenoid valve to the model tunnel. The constant water head of the standpipe results in a tunnel pressure that balances the vertical soil stresses at the tunnel axis to minimise soil displacements as the centrifuge accelerates. Section 3.1 discusses the implications of this technique. Second, after reaching 75g, the solenoid valve is closed and the volume of the tunnel is controlled by a piston. Calibration procedures determined that a piston movement of 2·5 mm was required to obtain a tunnel volume loss of 1·0%. During the centrifuge test, the linear actuator is remotely controlled and the piston movement is monitored using a potentiometer to track the tunnel volume loss.

For all centrifuge tests, dry silica sand known as Leighton Buzzard Fraction E (Table 2) was poured into the model with a relative density (I_R) of 90% (±3%) using an automatic sand pourer (Madabhushi et al., 2006). To obtain a uniform soil density throughout the model, and in particular surrounding the model tunnel, the sand was poured with the model lying on the Perspex window and the model tunnel positioned in the recess of the Perspex window. A paper sleeve was placed surrounding the tunnel to avoid bulging of the Latex lining due to gravitational forces. This sleeve was incrementally lifted following the sand pouring progress. The reason for using a consistent very dense soil model is that the degree of building damage increases with the relative density of soil (Netzel, 2009; Son, 2015).

Building models were fabricated using a powder-based 3DP technology (Sachs et al., 1990). The main principle of 3DP is that droplets of a binder are jetted on a powder layer, which results in a solid cross-section of the structure surrounded by loose powder. A new layer of powder is then laid down, and this procedure is repeated until the final object is fabricated. Finally, the loose powder is removed and the solid object(s) can be extracted from the powder bed. Throughout this research, the building models consisted of the raw 3D printed material; post-printing treatment was not carried out. Feng et al. (2015) gives a detailed description of the adopted 3DP process.

The surface structures were 3D printed on a Z Corporation Zprinter350 using VisiJet PXL Core powder and VisiJet PXL Clear Binder. A constant layer thickness of 0·088 mm was used. The 3D printed material is characterised by a distinct orthotropic behaviour that is related to the orientation of the structure in the print bed (Asadi-Eydivand et al., 2016; Farzadi et al., 2014, 2015; Feng et al., 2015; Gharaie et al., 2013). The tensile strength of the untreated 3D printed materials is lowest in the direction perpendicular to these layers (Chan, 2012, 2013; Feng et al., 2015). To make use of this lower interlayer bond strength, the building model was printed on end – that is, with a rotation of 90° (about the axis of the tunnel) when compared with its position in the centrifuge tests, as shown in Figure 6. Due to the size of the print bed, the building models were printed in two parts that were subsequently glued together using Araldite standard.

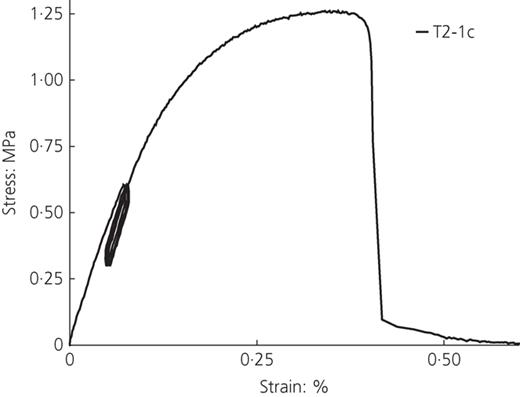

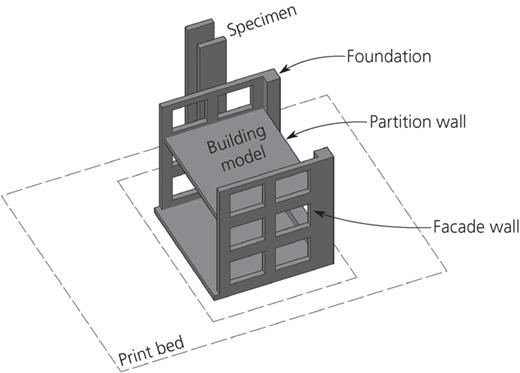

Figure 6 also shows the model beam specimens that were printed in every print job and subsequently tested in four-point bending following ASTM D 790M-86 II, Procedure A (ASTM, 1986). These samples, 125 mm × 4 mm × 20 mm, were tested flatwise with a support span of 99 mm and a load span of 33 mm. A cross-head motion of 4·5 mm/min was used and the mid-span deflection of the beams was monitored using a laser measurement device. Three unloading and loading cycles were carried out between 2 and 1 N. Figure 7 shows a representative stress–strain curve of the 3D printed material. The material exhibits a softening behaviour typical of brittle materials, and thus can be used to model cracking damage experimentally. Table 3 summarises the material properties for the model beam samples associated with each centrifuge test, and compares these results with typical masonry properties. The 3D printed material has a lower density than masonry, Young's modulus values comparable to historic masonry and a flexural strength and ultimate strain higher than masonry. To replicate typical global building stiffness values observed in the field, the building layout and facade openings were carefully adjusted. Figure 8 compares the building stiffness of the building models with case histories and previous centrifuge experiments. For predicting the bending stiffness, the opening reduction proposed by Melis and Rodriguez Ortiz (2001) was adopted; the neutral axis was located at the height of the centroid of the facade wall cross-section and for each building model the corresponding average Young's modulus value (Table 3) was used.

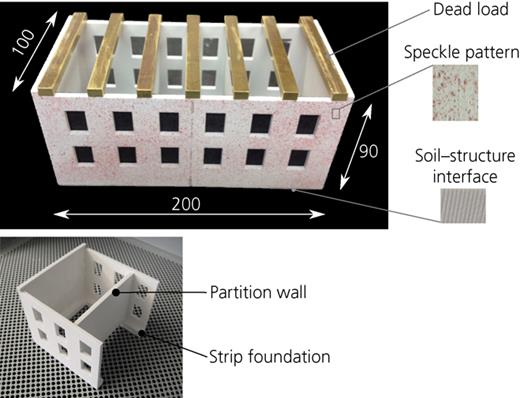

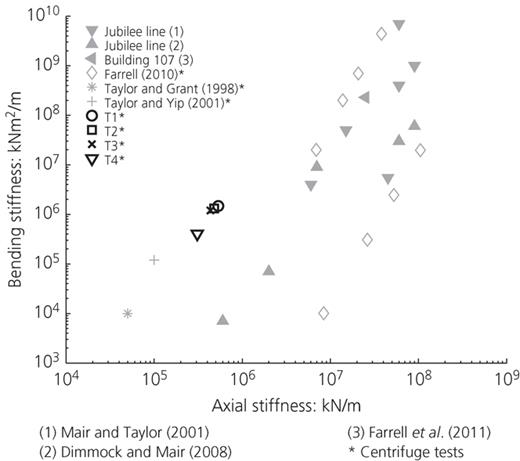

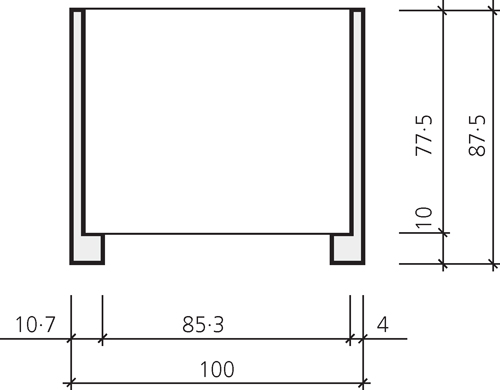

The aim of adopting 3DP is to replicate realistic building features. Figure 9 details the considered building characteristics, such as the building layout, strip foundations, a rough soil–structure interface and window openings. To obtain a realistic stress of about 100 kPa beneath the foundation of the building walls transverse to the tunnel axis, dead load bars were placed on top of the buildings. The facade wall visible through the Perspex window was coloured to better enable the DIC. A cross-section of the structure model is shown in Figure 10. For all the centrifuge tests, the dimensions of the building model and the stress beneath the strip foundations were the same.

Prior to running the centrifuge test, the 3D printed structure was placed on top of the soil model and the lasers and LVDTs were installed. Throughout this process, the solenoid valve (Figure 5) remained closed. After the centrifuge package was loaded onto the centrifuge and the instruments were connected to the data acquisition system a standard testing procedure was followed.

• Spin-up was carried out in 10g increments of up to 70g and a final 5g increment. At about 6g the solenoid valve was opened and the pressure in the tunnel was controlled by the water head in the standpipe (Figure 5). At this g level the vertical soil stresses at tunnel depth approximately match the initial water pressure within the tunnel, which is the result of stretching the tunnel membrane to a diameter of 82 mm. After reaching a spin-up increment, the centrifugal acceleration was paused and the images were captured. At 75g, the solenoid valve was closed to connect the model tunnel to the piston (Figure 5).

• The tunnel excavation process was then simulated. Digital photographs were taken at every 0·1% of tunnel volume loss and instrument readings were taken at 100 Hz. Tunnel excavation simulation proceeded until a ground loss of about 26% was reached or the building collapsed.

• The centrifuge was spun down and final images were acquired.

While the main objective of the research is to investigate the response of structures to tunnel excavation, this section first discusses the observations made regarding the centrifuge modelling procedure. In particular, the behaviour of the model during the spin-up is considered, followed by a brief discussion of boundary effects.

As the centrifugal acceleration increases, the soil model experiences one-dimensional compression, which would ideally lead to uniform soil displacements. The final state after the spin-up is typically taken as the reference condition to analyse the subsequent tunnel excavation simulation. However, the centrifuge tests presented herein developed differential soil displacements during spin-up. The reasons for this observation and its implications on the subsequent tunnel excavation are presented below. Only T1 and T2 are discussed as they reveal the main spin-up mechanisms observed.

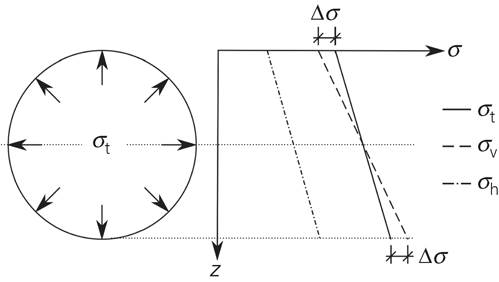

During spin-up, the tunnel control system (Figure 5) balances the tunnel pressure (σ_t) with the vertical soil stresses (σ_v) at mid-height of the tunnel to minimise soil displacements surrounding the tunnel. However, due to density differences between the sand and water, a stress imbalance arises with vertical distance from the tunnel axis, as illustrated in Figure 11. This imbalance is larger in the horizontal direction; the horizontal soil stresses at rest (σ_h), which were approximated by using the assumption of Jaky (1944), are significantly smaller than the tunnel pressure (Figure 11). Additionally, the self-weight of the structure affects the stress conditions in the soil.

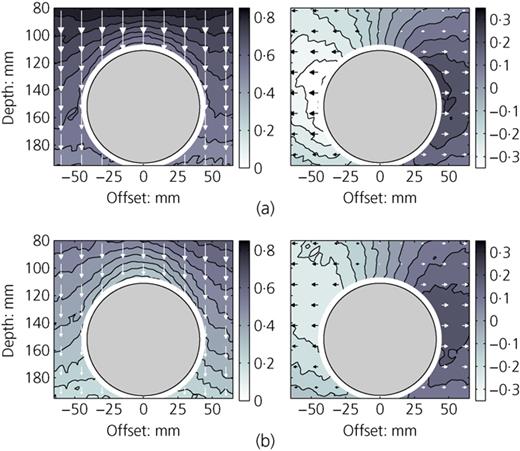

The stress imbalance during spin-up did induce movements of the ground and the flexible tunnel lining. Figure 12 shows the ground displacements surrounding the model tunnel after reaching 75g. The stress imbalance at the tunnel crown reduced the vertical soil displacements directly above the tunnel (Figure 12, left). In addition, the flexible tunnel lining moved horizontally outwards at the tunnel springlines (Figure 12, right) due to the lower horizontal soil stresses compared with the tunnel pressure. These deformations indicate that the tunnel ovalised during spin-up (Vorster, 2002). A comparison between Figures 12(a) and 12(b) depicts the influence of the building model on the spin-up behaviour. In T1, the building model was placed symmetrically above the tunnel and symmetric ground displacements were monitored (Figure 12(a)). On the contrary, the structure in test T2 was positioned to the right of the model tunnel which triggered higher vertical soil displacements above the right tunnel shoulder (Figure 12(b), left). Consequently, the tunnel lining was notably more constrained at the right-hand side of the tunnel which increased movements at the left tunnel shoulder (Figure 12(b), right).

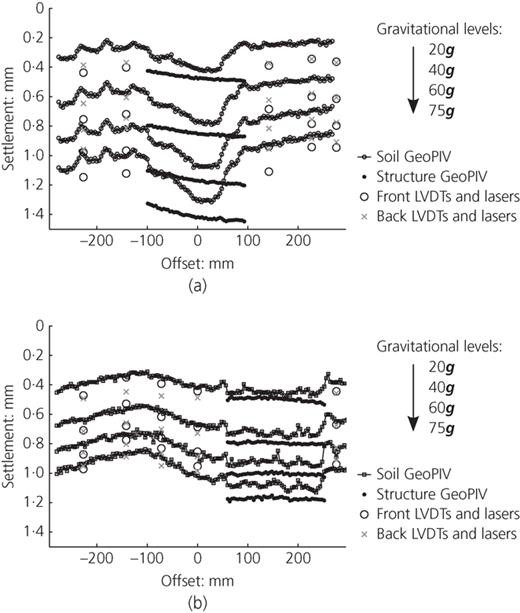

This tunnel–soil–structure interaction during spin-up resulted in non-uniform surface soil settlements (Figure 13). Figure 13(a) and the left-hand side of Figure 13(b) shows that the settlements in the regions left and right of the tunnel were less than that above the tunnel. This observation can be explained by an increase of the soil stiffness next to the tunnel springline, which is caused by tunnel ovalisation. The identified mechanisms are in line with Vorster (2002) who used a similar experimental set-up. By contrast, the right-hand side of Figure 13(b) indicates that the spin-up soil settlements in this region are dominated by the building weight.

Figure 13 also shows that the vertical displacements of the base of the building models exceed the underlying soil settlements. Similar observations were reported by Farrell (2010). This discrepancy may be due to modelling imperfections, the applied image-based deformation measurement technique and boundary effects. Although great care was taken during the model preparation, the soil surface cannot be made perfectly level and the building model cannot be placed perfectly flushed with the underlying soil surface. As a consequence, some levelling of the soil or embedment of the building models might have caused the slightly higher building displacements observed during spin-up. This effect might have been amplified by the GeoPIV analysis in which the displacements of the structure and the soil cannot be measured directly at the soil–structure interface. Both the soil and the structure displacements were analysed at a certain distance (i.e. 4 mm) from the interface. Another possible explanation might be that the building was not completely flushed with the Perspex plane throughout the spin-up phase, and the sand immediately next to the Perspex window might have experienced boundary effects.

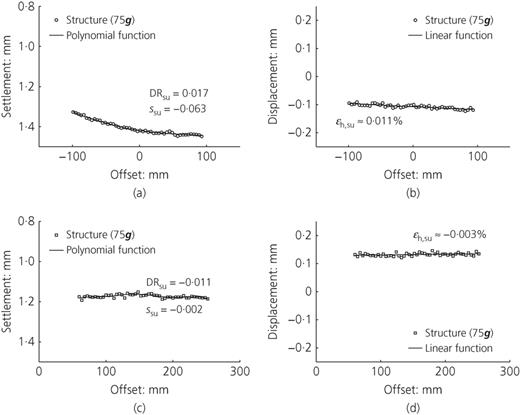

Figure 13 depicts structure displacements during centrifuge acceleration. To evaluate the impact of the non-uniform soil settlements on the building models, the deflection ratio (DR), the slope (s) and the average horizontal building strain (ϵ_h) are estimated for the final stage of spin-up (Figure 14). While ϵ_h is the slope of a linear function fitted to the horizontal displacements of the base of the buildings, DR and s can be determined by

and

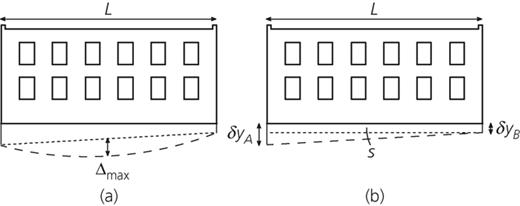

The variables of Equations 1 and 2 are defined in Figure 15. After these building movement parameters are estimated, the tensile strains induced in the building models can be computed following Burland and Wroth (1974). The maximum building tensile strain due to the spin-up displacements was estimated to be about 0·01%, which is more than an order of magnitude smaller than the strain to failure of the 3D printed material (i.e. 0·32%, Table 3). This quantification of the spin-up phase tensile strains shows that the material was at the beginning of the elastic region. Thus, the soil and structure displacements at 75g are valid reference conditions for the subsequent modelling of tunnel excavation. However, strains induced during spin-up need to be taken into account when investigating cracking in the structure. All results reported below are relative to the reference displacements after centrifugal acceleration.

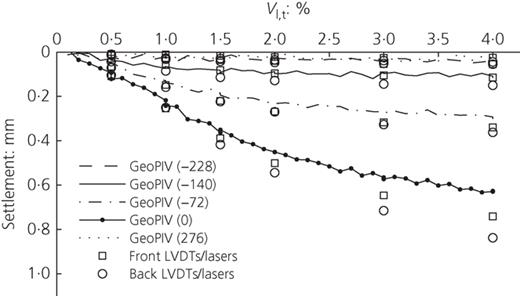

Various researchers have observed boundary effects caused by friction between the Perspex window and the sand model (e.g. Elshafie et al., 2013; Marshall et al., 2012). Figure 16 gives a measure of these boundary conditions by comparing the readings of the LVDTs and lasers with the obtained GeoPIV data for T2 (Figure 2(c)). Overall, the ratio between the LVDT/laser readings and the GeoPIV data (δ_LVDTs/lasers/δ_GeoPIV) was about 1·12 for T2. This value is indicative, but varied slightly between the different tests. Figure 16 shows that the difference between GeoPIV displacements and LVDT/laser measurements increases with volume loss. Similar results were reported by Elshafie et al. (2013), Farrell (2010) and Marshall et al. (2009). Marshall et al. (2009) have found that the shape of the settlement profiles is not significantly affected by boundary friction. These findings confirm the reliability of the image-based deformation measurement technique and indicate boundary effects similar to previous research.

This section evaluates the soil–structure interaction data from the new centrifuge tests through comparison to previous literature. To verify that the experimental set-up realistically models all parts of this tunnel–soil–structure interaction problem, volume changes in the soil, the effect of the building position on the ground displacements and the impact of facade openings on the building response are addressed. The given results were obtained by GeoPIV.

Previous researchers have reported that in drained soils, the ground loss at surface is less than the ground loss surrounding the tunnel (Cording and Hansmire, 1975; Marshall et al., 2012). This volume change can be related to shearing deformations, which lead to compression and dilation in the soil above the tunnel (Marshall et al., 2012). Figure 17 presents the modelled tunnel volume loss (V_l,t) and the soil surface volume loss (V_l,s), calculated through integration of surface settlement profiles that were obtained by GeoPIV. As a consequence of the boundary conditions discussed above (Figure 16), the determined soil volume losses present a slightly lower value than measured with distance from the Perspex. The experimentally obtained data generally show good agreement with the relationship proposed by Marshall et al. (2012) for a greenfield test with the same soil properties. Nevertheless, for the structure placed symmetrically above the tunnel (T1), the surface volume loss diverges after about 1·5% of tunnel volume loss. This difference is likely to be related to a gap formation (Farrell, 2010) beneath the base of the structure that caused a decrease of the mean stresses in the soil, and thus dilation became more pronounced.

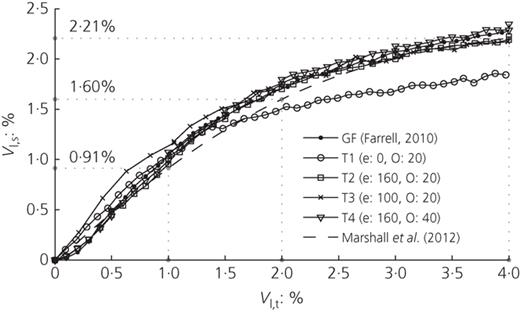

Figure 17 demonstrates that a range of volume losses can be investigated in a single centrifuge test. The soil surface volume loss, which is typically measured in the field, is considerably lower than the modelled tunnel volume loss. For instance, a tunnel volume loss of about 2·0% results in a surface soil volume loss of about 1·6%, which is similar to typical design criteria for shotcrete lining tunnels (i.e. 1·5%). Therefore, the data below are presented for a tunnel volume loss of 2·0%.

The current methods of predicting potential building damage consider the location of the building relative to the tunnel. To quantify the effect of the building position, three equal building models were tested in different regions of the tunnelling-induced settlement trough. The discussed centrifuge tests are T1, T2 and T3 (Figure 1) along with a previous greenfield test (Farrell, 2010).

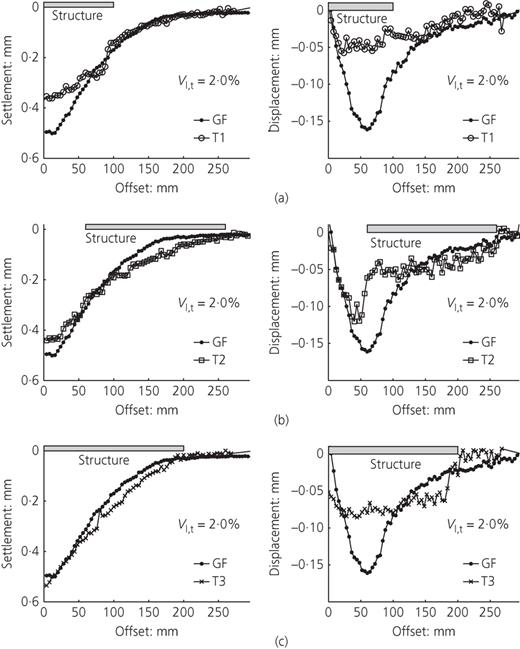

Figure 18 shows that the soil–structure interaction considerably modified the ground surface displacements. The data in Figure 18 (left) indicate a notable reduction in the curvature of the settlement profiles beneath the structures. Figure 18 (right) shows that the buildings restrained the horizontal ground displacements.

The building location clearly affected the vertical ground movements. Structures located symmetrically to the tunnel (T1) increased the greenfield vertical displacements beneath the edges of the building while settlements reduced beneath the centre (Figure 18(a), left). The embedment of the structure at the trough shoulders was accompanied by a gap that formed underneath the centre of the structure and the soil surface. As a consequence, the contact area of the foundation reduced and the bearing pressure increased in the regions where the foundations were in contact with the soil, causing the embedment. Potts and Addenbrooke (1997) presented similar surface settlement profiles for structures placed at zero eccentricity. By contrast, when the structure was located asymmetrically to the model tunnel the vertical displacements increased underneath the entire building length (Figure 18(b), left and Figure 18(c), left). For the structure in the transition region (T3), the maximum surface settlements (which occurred above the tunnel centreline) exceeded the greenfield measurements (Figure 18(c), left). This increase in settlements was due to a rigid body rotation and embedment underneath the left corner of the structure, similar to the embedment effect discussed above. Liu et al. (2001) have reported similar results of large vertical settlements and serious tilt when a corner of a structure is located directly above the tunnel.

Horizontal soil displacements were also affected by the location of the building above the tunnel. Buildings placed symmetrically lowered the horizontal greenfield displacements beneath the entire extent of the structure (Figure 18(a), right). Meanwhile, structures in an asymmetric position reduced the horizontal soil displacements closer to the tunnel, but caused increased horizontal movements further from the tunnel (Figures 18(b) and 18(c), right). The greater horizontal soil movements can be related to the friction at the soil–structure interface. The structure transferred shear stress to the soil beneath, and the soil was dragged by the structure. Overall, the data suggest that differential horizontal soil displacements are significantly reduced due to the presence of a building. Similar conclusions have been reached by Dimmock and Mair (2008), Elshafie et al. (2013), Farrell and Mair (2012) and Viggiani and Standing (2001).

To evaluate the effect of facade openings on the building's response to tunnelling subsidence, results from T2 (20% of openings) and T4 (40% of openings) were compared. At each level of volume loss, the DR was calculated by first fitting polynomials to smooth the vertical displacement data of the centrifuge tests to prevent overestimation of the DRs. A fifth degree polynomial was used for fitting because it was the minimum degree polynomial that minimised the fitting error. The hogging and sagging zones (for the greenfield and soil–structure tests) were limited by the inflection point of modified Gaussian curves that were fitted to the associated surface soil displacement profiles. The inflection points were obtained for the different volume loss increments investigated. For tunnel volume losses of <1·5%, very short sections of the buildings were classified as sagging regions based on the inflection point division, but these were inconsequential and were neglected in the following analysis. At tunnel volume losses of >1·5%, the entire building was located in the hogging region defined by the inflection point.

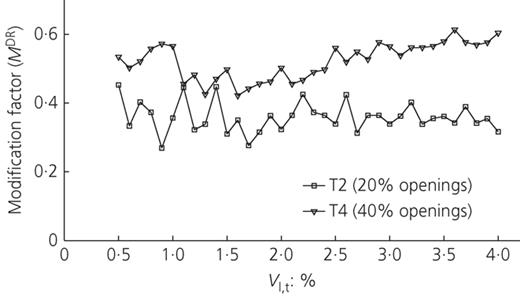

The ratio between the hogging DR at the base of the building and the corresponding greenfield DR (DR^GF) is called the modification factor of the DR (M^DR). Figure 19 compares the M^DR of T2 with T4, and illustrates that M^DR increased with the amount of facade openings. For T4, M^DR also increased with volume loss as V_l,t increased to more than ∼2·0%. This effective decrease in building stiffness (i.e. increase in M^DR) with volume loss can be explained due to the onset of building damage when micro-cracks propagate through the building, while a decrease of M^DR can be explained by a decrease of the soil stiffness (Farrell, 2010).

Predicting building response to tunnelling-induced subsidence frequently relates the equivalent bending stiffness, EI, to a representative soil stiffness, E_s (Franzius et al., 2006; Goh and Mair, 2011; Mair, 2013; Potts, 1976). Goh and Mair (2011) proposed the following relative bending stiffness

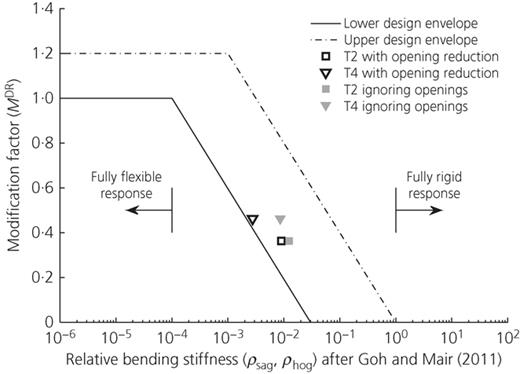

where L_hog and L_sag are the building length in hogging and sagging. In Figure 20, the observed M^DR of T2 and T4 are plotted with respect to relative bending stiffness predictions (calculated by either reducing EI due to window openings (Melis and Rodriguez Ortiz, 2001) or ignoring openings) on the design chart of Goh and Mair (2011) and Mair (2013). Figure 20 indicates that the obtained data are within the accepted design guidelines.

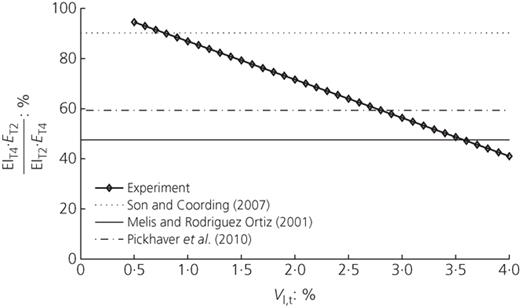

To further investigate the impact of facade openings on the building stiffness, EI values were back-calculated by assuming that the measured M^DR of T2 and T4 (Figure 19) are on the same design envelope of Goh and Mair (2011) and Mair (2013) and solving for EI in Equation 3. These hypothetical EI values are then normalised by the average Young's modulus of the corresponding 3D printed building model (Table 3) to account for differences in the 3D printed material properties. Figure 21 relates the normalised bending stiffness of T4 to T2, which was smoothed by a linear regression, alongside the literature that is widely adopted to reduce EI due to facade openings. The literature values were obtained by considering the material properties and openings of the corresponding building models. The experimental result shows that an increase of facade openings notably reduces the bending stiffness as the volume loss increases, which is currently neglected in the literature. However, for volume losses <3·5%, both Melis and Rodriguez Ortiz (2001) and Pickhaver et al. (2010) provide conservative predictions, while the Son and Cording (2007) prediction corresponded to a volume loss of ∼0·75%.

A centrifuge modelling procedure to study the mechanism of tunnelling on surface structures was presented. Three-dimensional printed building models allowed modelling of building details such as window openings, strip foundations and partition walls at a scale factor of 1:75. Four-point bending tests were carried out to obtain 3D printed material properties. The material demonstrated brittle behaviour, and balancing of the building layout enabled building stiffness values comparable to case histories.

The interaction between the soil, the model tunnel and the surface structures as g level increases was quantified. The spin-up data demonstrated that the tunnelling simulation technique resulted in non-uniform surface settlements. Building tensile strains induced during spin-up were not negligible, but the 3D printed material remained elastic. Results of the tunnel excavation simulation showed that volume changes in the drained soil conditions, the effect of the building position on ground movements and the influence of facade openings on the building response were modelled in great detail. These results provide confidence that the physical modelling set-up realistically replicates soil–structure interaction during tunnelling, and that this set-up can be usefully applied in continued research into the effect of building details (e.g. building layout, aspect ratio and facade openings) on the response of buildings to tunnelling.
