Born in 1975, Guido Morgenthal received his Ph.D. in 2002 from the University of Cambridge. This paper summarises the oral presentation he gave during the Technical Activities Workshop in Budapest in May 2005.

Phenomena involving the interaction between wind and structures have become important problems in the design of structures. This is due to more slender and light-weight structures, enabled by modern materials, construction methods and design methodologies. The interaction between structural oscillations and the complicated physics of fluid flow around the structure leads to complex feedback problems. Wind-induced vibrations must be predicted and checked against in the design process. Often the aerodynamic problems are a governing factor in the design and early knowledge about the aerodynamic behaviour of a structure is required.

The desire of the engineer to understand the aerodynamic behaviour of a structure at an early stage of its design thus calls for an office-based solution. Here, numerical methods known as Computational Fluid Dynamics (CFD) are a viable alternative to wind tunnel testing. To date these have, despite of a number of successful applications, by far not reached the significance that their equivalents in structural mechanics and structural dynamics have.

The Vortex Particle Method is a numerical approach to solving the underlying physics of the fluid flow. Being quite distinct from the other established methods such as Finite Volume and Finite Element grid-based Methods it has a number of advantages which make it a favourable tool for flow analysis around bluff body such as bridge towers or decks.

Particularly in its two-dimensional formulation, which is utilised herein, the Vortex Particle Method is considerably more efficient than grid-based methods, thus requiring less computing power and providing results more rapidly.

The scheme models the fluid flow by means of particles which discretise the vorticity field, that is the rotation of the flow. Being a grid-less Boundary Element scheme the method only requires the discretisation of the surface of solid bodies immersed in the fluid. Therefore, preprocessing is much facilitated compared to mesh-based tools which require the discretisation of the fluid on a grid which needs adjusting to the solid interface. During the simulation, the vortex particles are constantly introduced on the body surface, where they evolve to model the viscous rotational boundary layer. They are subsequently convected and diffused through the domain with the unsteady flow patterns evolving naturally.

In the purely grid-less scheme the solution of the Poisson equation to compute the velocity field from the vorticity field is usually done with a Green's function approach. However, this leads to a computation of the order of $Np2$⁠, where N_p is the number of particles. Thus it becomes computationally very expensive for large particle numbers, prohibiting high-resolution simulations. To address this issue, a novel immersed boundary algorithm in the framework of the Vortex-In-Cell Method was developed. This allows for a vortex particle code retaining all the advantages of the classical method whilst improving the efficiency of the velocity computation and the handling of the particle resolution. A hybrid Particle-Particle-Particle-Mesh algorithm was developed. This efficiently solves the Poisson equation on a regular mesh using a fast FFT solver with exact prescription of free-space boundary conditions. The resulting velocity estimate is corrected through direct particle-particle interactions in the near-field thus providing an automatic resolution of sub-grid scales, i.e. contributions that cannot be resolved on the mesh and are usually largest in the vicinity of immersed solid bodies. Due to the trivial regular mesh utilised, no specific input by the user is required.

A redistribution of the particle elements to a regular lattice can be performed to achieve a favourable resolution and ensure the overlap of the vortex cores, which is crucial in achieving converged solutions. A new such particle remeshing strategy was developed which exploits the robustness of the random walk method used for diffusion modelling. The new scheme refrains from remeshing particles close to the solid boundaries, which would otherwise assign vorticity inside the solid region.

Detailed information on the numerical method and its implementation in the VXflow software can be found in (Morgenthal 2002 and Walther & Morgenthal 2002). The convergence of the implementation has been shown. Extensive validation of the code has been done on classical fluid dynamics problems such as stationary and rotating circular cylinders, flat plate boundary layer studies and the oscillating flat plate. Furthermore, comparative studies using wind tunnel data have been performed for various structures, mainly in the field of long-span bridge design. Some results are documented in (Morgenthal 2000, 2002, 2005 and Morgenthal & McRobie 2002).

The pressures on the solid surface are readily available at every timestep, which allows a detailed analysis of aerodynamic forces on structures of arbitrarily complex shape. Furthermore, the code can accommodate movements of the solid interface, such that flow-induced vibrations can be modelled. To this end, the aerodynamic forces can be fed into a structural dynamics solver representing the dynamic behaviour of the structure and the motion of the structure be accounted for in the fluid flow analysis. Thus, fully coupled simulations can be performed.

A bluff structure embedded in a fluid flow causes a shedding of vortices, which form a distinguished wake behind the body. If the structure is elastically suspended it can undergo oscillations caused by the periodic forces. Such vortex-induced vibrations occur at resonance between the dominant shedding frequency and the natural structural frequency. The body displacements will in turn influence the flow pattern and a complex interaction takes place. Close to resonance a synchronisation between both unsteady processes occurs. This ‘lock-in’ of the flow to the structural vibration thus widens the range of resonance flow speeds. On the other hand, however, the amplitude will always remain limited due to the aerodynamic damping involved.

As an example, analysis results of the vortex shedding from rectangular cylinders are shown here because of their relevance to long-span bridge design, where bridge pylons often exhibit similar cross sections.

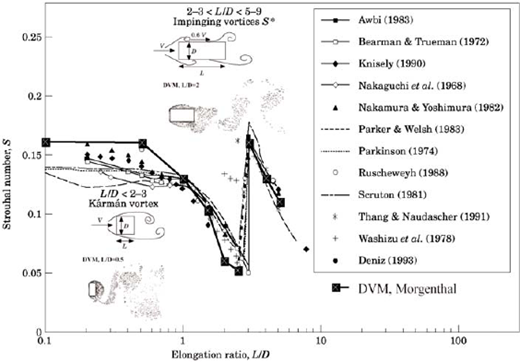

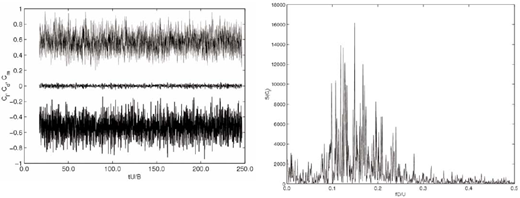

Figure 1 shows the predicted non-dimensional vortex shedding frequency (Strouhal number) for cylinders of different aspect ratios. Different vortex shedding patterns are very well represented. In particular the distinct characteristics depending on the vortex formation region is well captured.

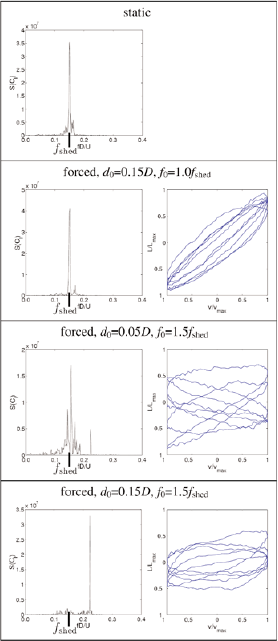

The aforementioned influence of structural oscillations on the vortex shedding process was investigated by analyses on a square cylinder. The results are outlined in Figure 2. The vortex shedding from a static, i.e. stationary, cylinder in simulated first. The vortex shedding is manifested in fluctuating lift forces and the frequency spectrum of the lift force time history exhibits a clear peak associated with the dominating frequency of vortex shedding fshed. If in the next step the cylinder is forced to move transversally in the flow according to d(t) = d₀sin(2πft) at exactly the frequency f = f_shed, the peak in the spectrum becomes even clearer. If the frequency of forcing is, however, increased away from fshed, the shedding is disturbed and a second peak can be seen at the frequency of the forcing motion. When at the same frequency the oscillation amplitude d₀ is increased further, the shedding can be “locked-in” to that oscillation frequency entirely.

It becomes obvious, that the interaction between vortex shedding and structural oscillation exhibits rather complex physics. Consequently, in a free oscillation strongly nonlinear coupling exists, leading to the ‘lock-in’ phenomenon. This makes analytical predictions of the amplitudes of vortex-induced vibrations very difficult. Numerical flow modelling can be a useful analysis tool.

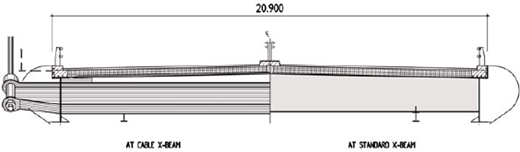

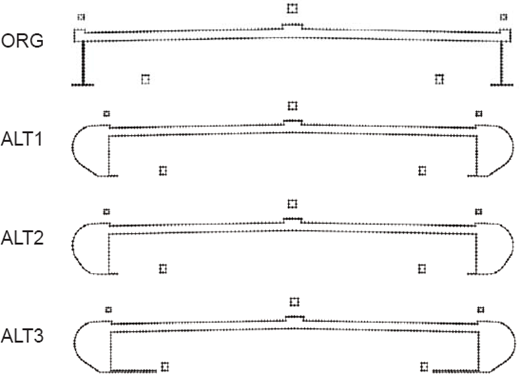

A typical deck configuration of a modern cable-stayed bridge is shown in Figure 3. Steel plate girders with a concrete roadway slab in composite construction are a very economic design. However, such girders are prone to torsional galloping, a one-degree-of-freedom wind induced instability similar to flutter. The bridge deck is thus only stable up to a critical wind speed, which must be shown to lie above the design wind speed

The main factors influencing the critical wind speed are the lowest torsional natural frequency of the deck and the aerodynamic properties of the bridge's cross sectional shape. A number of different sections were tested, shown in Fig. 4 with the surface panel discretisation used for numerical analysis. The original section ORG was extended by a wind nose (two geometries were tested, ALT1 and ALT2). The design ALT3 is derived from ALT1 but features a bottom flange extended further into the girder cavity.

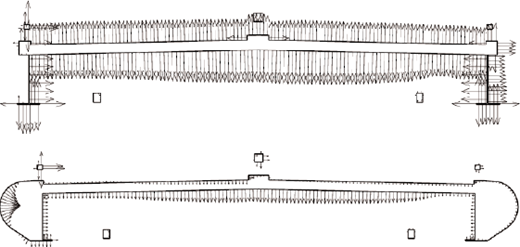

Firstly, the aerodynamic properties were determined for the static bridge deck, yielding mean and fluctuating force coefficients, pressure distributions and vortex shedding frequency content as shown in Figures 5 and 6.

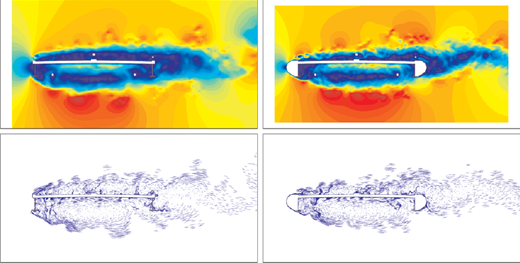

Sample flow visualisation snapshots for the static case are shown in Figure 7, revealing the flow alteration due to the wind nose. The wind nose leads to a more streamlined flow, which is also manifested in the computed drag force. Furthermore, the vortex shedding is less pronounced with a slimmer wake.

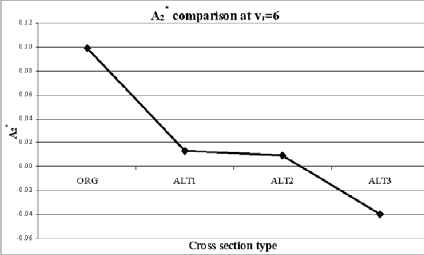

The motion-induced forces responsible for self-excitation phenomena such as torsional galloping are commonly treated in the framework of aerodynamic derivatives as proposed by (Scanlan & Tomko 1971). Of particular interest in the presented case is the $A2*$ derivative which corresponds to the torsional moment induced due to a pitching motion. In the simplified case without structural damping torsional galloping occurs when $A2*$ turns positive. Identical to common wind tunnel testing practice the derivatives are determined by applying a forced oscillatory motion to the cross section, measuring the induced forces and least-squares fitting these to the derivative definition. To show the favourable effect of the wind nose designs, Fig. 8 plots the $A2*$ value for a non-dimensional wind speed of ν_r = U_∞/f_pitch B = 6.0. It is obvious from the reduced derivative that the design evolution successively improved the bridge section stability, by pushing the critical ν_r to beyond 6.0.

A study was undertaken to investigate the wind flow around the M4 River Neath Bridge in South Wales. The bridge is situated approximately 1.5km inland from Baglan Bay and crosses the River Neath just south of the A48 road bridge. The bridge, opened in 1994, is 2 kilometres long and split into three separate sections: a five span composite plate girder structure crossing the River Neath, and the approach sections constructed from pretensioned concrete beams with a cast-in-situ deck slab. These approach sections are discussed herein.

Wind loads endangering the passage of large vehicles have been found to occur several times a year, thus necessitating the closure of the bridge. Such traffic interruptions are a severe problem for the local economy. The task was to study the efficiency of different wind screen configurations proposed for a remedy action. The shielding was required to raise the threshold wind speed for overturning of vehicles.

The VXflow code was used to compute the complex air flow around the assembly of structure and wind shield. The particle remeshing scheme described in section 2 was used to ensure a sufficient discretisation of the flow. The simulations provided local velocity profiles on the traffic lanes, design forces on the shielding and the global section wind forces. All results were time-histories which subsequently underwent a statistical analysis.

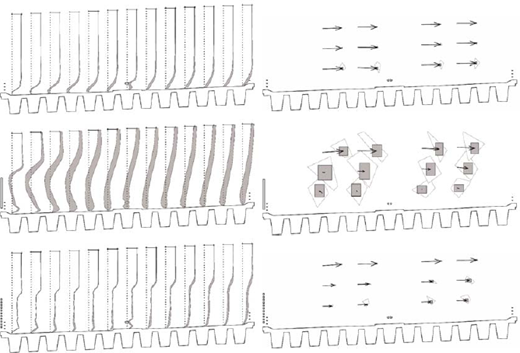

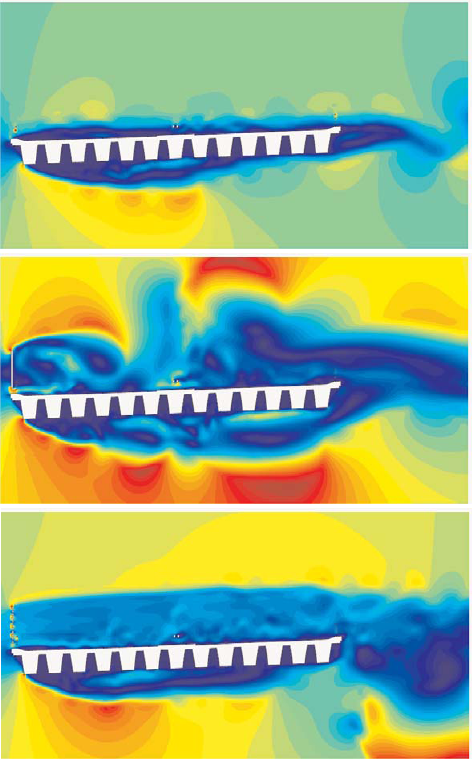

Figure 9 shows flow visualisation results firstly of the bare bridge configuration and secondly of the bridge with two different shield designs: a solid barrier and thin horizontal slats. The velocity distributions show that the traffic on the windward side experiences hardly any shielding from the bare bridge. A solid wind shield was found to block the wind, thus strongly reducing the mean wind speed behind the screen. However, it also creates a large rotating separation zone where strong velocity fluctuations are present, thus challenging the drivers. Hence, this solution was abandoned. A configuration with thin slats evolved as the optimum solution from a parametric study of a number of further designs. The slats not only constitute an obstacle to the oncoming wind but also lead to a stirring of the flow, which reduces velocity fluctuations behind the barrier. A strong reduction of wind loads on vehicles is found with a very steady wind field across the deck. This is evidenced in the statistical analysis depicted in Figure 10.

The study also included simulations with vehicles present on the bridge, for which the overturning moment could thus be determined.

Wind tunnel studies performed by another client showed good agreement between the flow patterns visualised by smoke introduction and the numerically computed velocity fields.

A computer code for the aerodynamic analysis of structures has been presented. The underlying Vortex Particle Method allows highly efficient numerical simulations of the fluid dynamics, such that a high resolution can be achieved at relatively low computational cost. Furthermore the visualisation aspect can provide valuable insight into flow properties. Due to its flexibility the method is particularly suited for parametric studies during the early design stages, where wind tunnel test results are not yet available. Hence such simulations can favourably supplement the design process.

Further the details about the programme for the upcoming fib Congress, taking place in Naples, Italy, from 5 to 8 June 2006, have been made available by the organisers. The programme reveals a full and varied event, which will include keynote lectures by renowned international experts, reports from fib national member groups and commissions, technical and poster sessions covering a wide range of topics, and a commercial exhibition. A rich social programme is also under preparation, including evening events and post-congress tours.

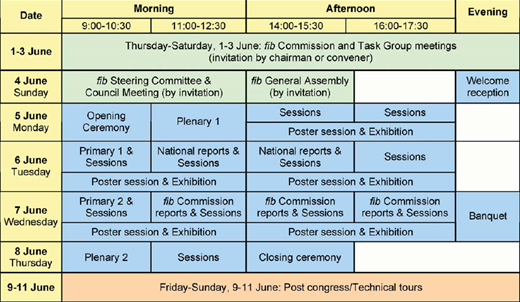

For an overview of the Congress’ preliminary programme, see the table on the following page.
